Pre-Insulated Wire Connector 10-150mm²
This pre-insulated sleeve features an aluminum sleeve with a stop in the middle and a black thermoplastic sealed with a flexible elastomer ring. It is waterproof and provides a mechanical resistance of 50% of the cable breaking load.
Technical Specifications
Overview
High-Performance Pre-Insulated Connectors

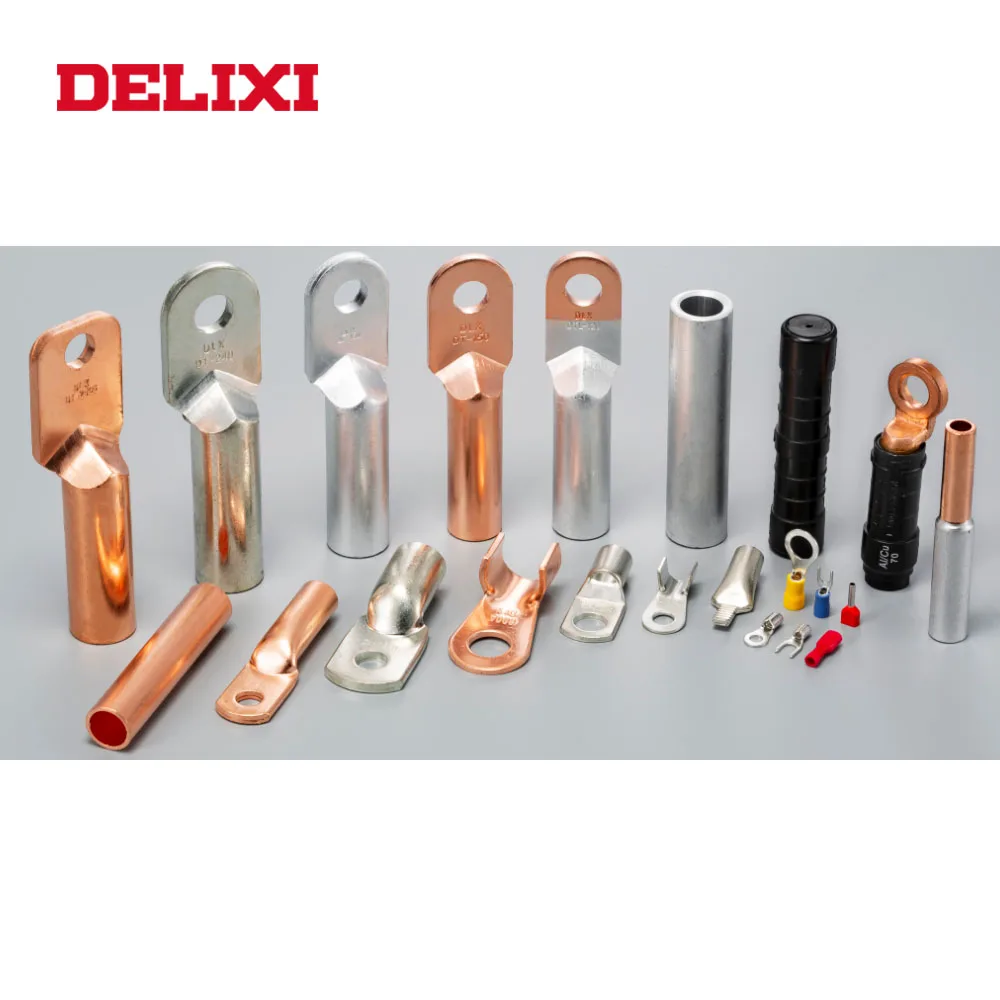

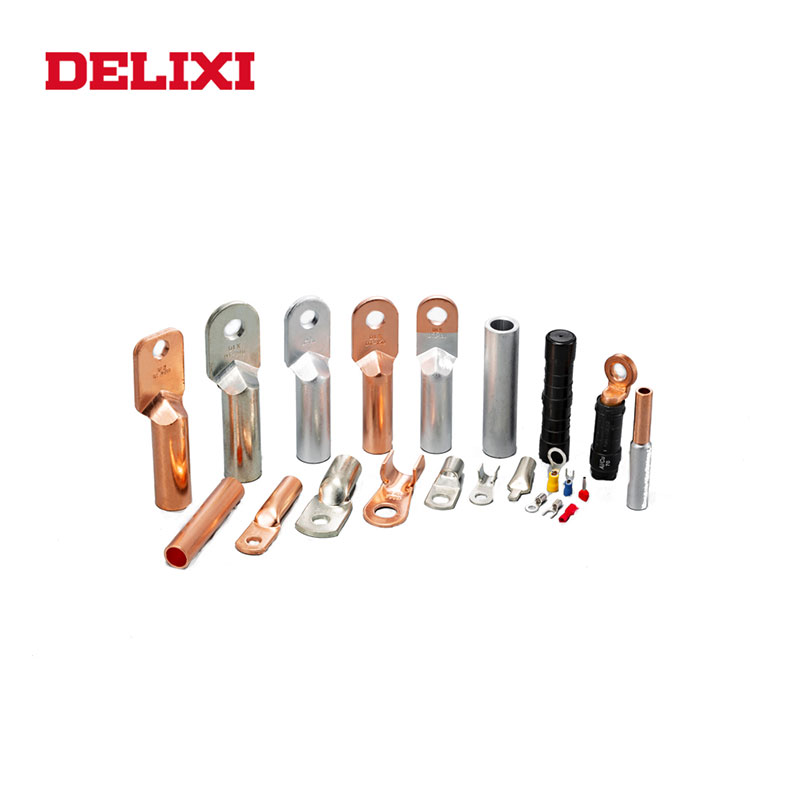

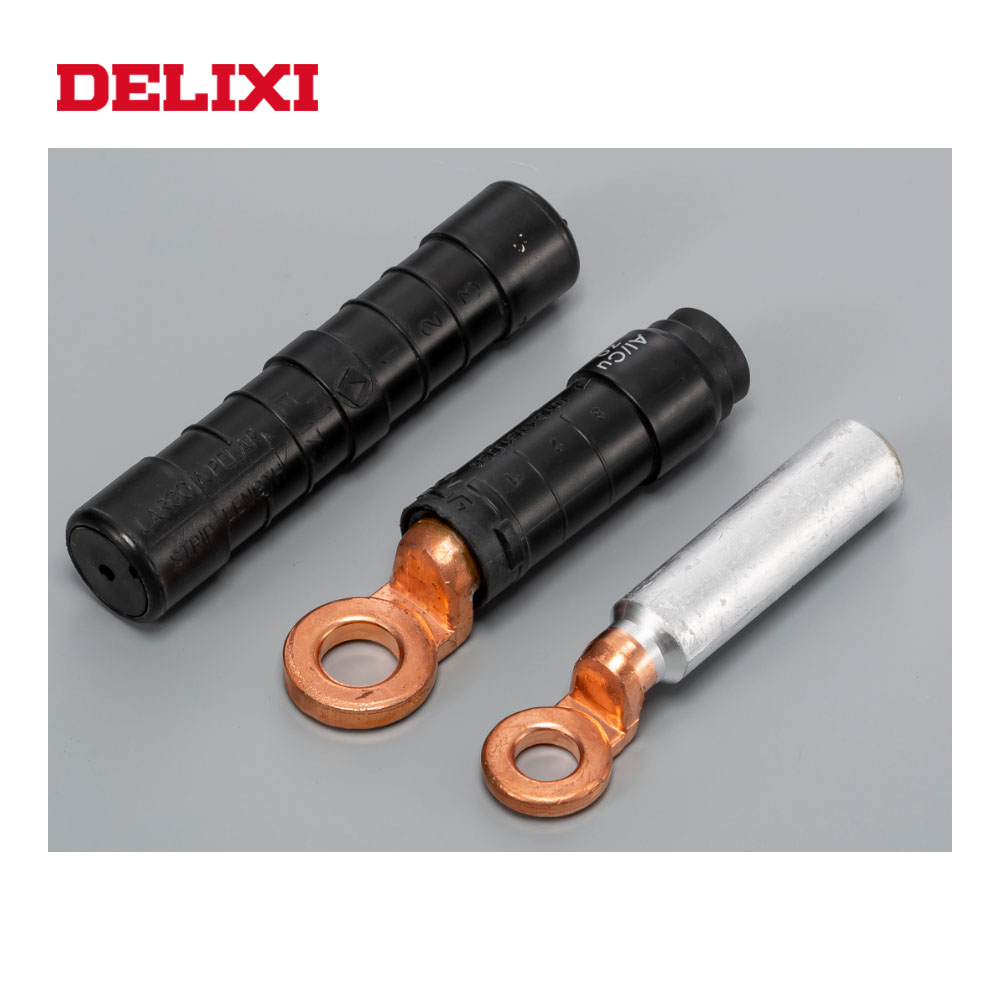

These pre-insulated sleeves are engineered for secure electrical connections in power transmission and distribution systems, featuring an aluminum sleeve with a central stop. Each tube is filled with neutral contact grease to improve contact area and prevent oxidation, while a black thermoplastic shell and elastomer ring provide a robust waterproof seal. Designed for reliability, these connectors withstand mechanical loads up to 50% of the cable's breaking strength and are easily installed via crimping on the marked plastic body.
Technical Capabilities
Conductor Range
- Mechanical Resistance
- 50% of cable breaking load
- Protection Features
- WaterproofAnti-pressureAnti-oxidationPre-insulated
Material Specifications
Tube Materials
- Aluminium tube (Compression connectors for phase)
- Aluminium alloy tube (Compression connectors for neutral)
- Black thermoplastic insulation
- Flexible elastomer sealing ring
- Neutral contact grease
Material Compatibility
Size & Color Coding
Color Identification by Cross-Section
| Cross Section (mm²) | Color Mark |
|---|---|
| 10 | Green |
| 16 | Blue |
| 25 | Orange |
| 35 | Red |
| 50 | Yellow |
| 54.6 | Black |
| 70 | White |
| 80 | Milk White |
| 95 | Grey |
| 120 | Pink |
| 150 | Purple |
Dimensional Data
Model Dimensions
| Section (mm²) | Conductor Ø (mm) | Tube Length (mm) |
|---|---|---|
| 10 | 4.3 | 71 |
| 16 | 5 | 71 |
| 25 | 6.5 | 71 |
| 35 | 8 | 102 |
| 50 | 9 | 102 |
| 70 | 11 | 102 |
| 95 | 12.5 | 135 |
| 120 | 14 | 135 |
| 150 | 15.5 | 135 |
| 185 | 10 | 178 |
