Pre-Insulated Equipment Connector for Copper and Aluminum Cables

This pre-insulated equipment connector is designed for connecting overhead lines with transformers or equipment. It features shear head bolts for easy installation, stable performance, and secure transition between copper and aluminum cables.

Request a Quote Download PDFPDF

SBJ PRE-INSULATED EQUIPMENT CONNECTOR - Image 1

Technical Specifications

Product Overview

Professional Equipment Connectors

The SBJ series pre-insulated equipment connectors provide a high-performance solution for power distribution up to 10kV. Featuring an integrated design, these connectors allow for reliable transition connections between copper and aluminum cables without the need for traditional cable lugs. The use of shear head bolts ensures stable, easy installation, while internal jointing compound enhances electrical conductivity for long-term service.

Technical Specifications

Configuration Matrix

Model	Range (mm²)	Rod Size
SBJ-11D-M12	50-95	M12
SBJ-12D-M16	95-150	M16
SBJ-21D-M18	150-240	M18
SBJ-31D-M24	300-400	M24

Compliance Standard: DL/T 346-2010
Material Composition: High mechanical strength aluminum alloy
Conductor Compatibility: CopperAluminumOverhead linesTransformer equipment

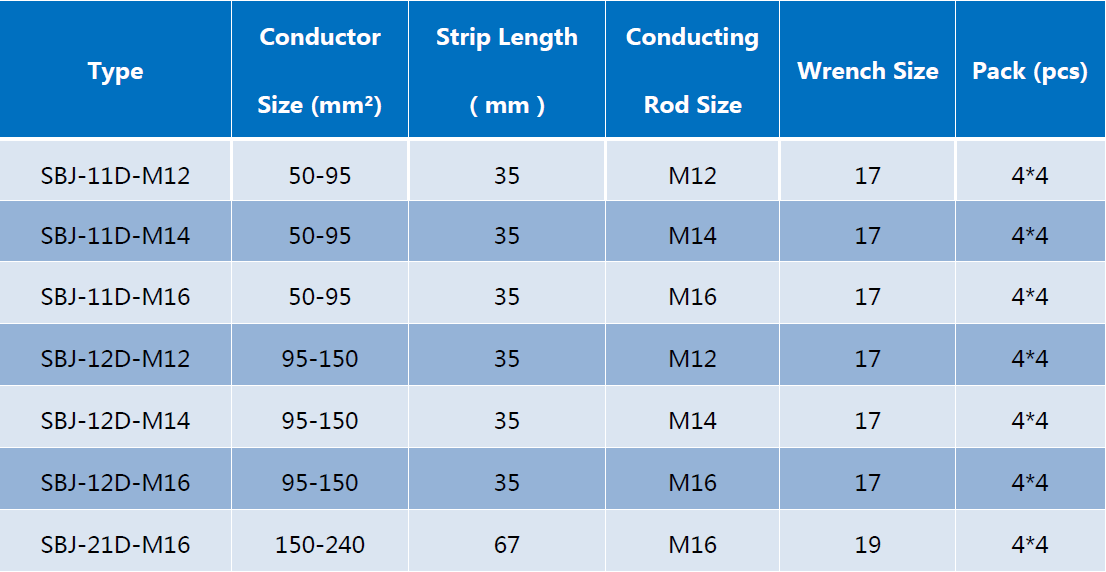

Table of specifications for SBJ series connectors including strip length and wrench size.

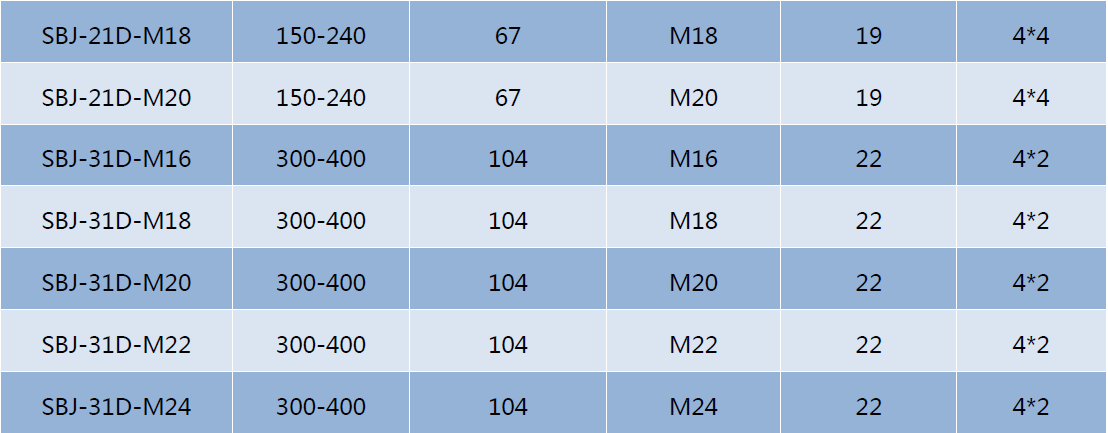

Selection guide for larger capacity SBJ series pre-insulated connectors.

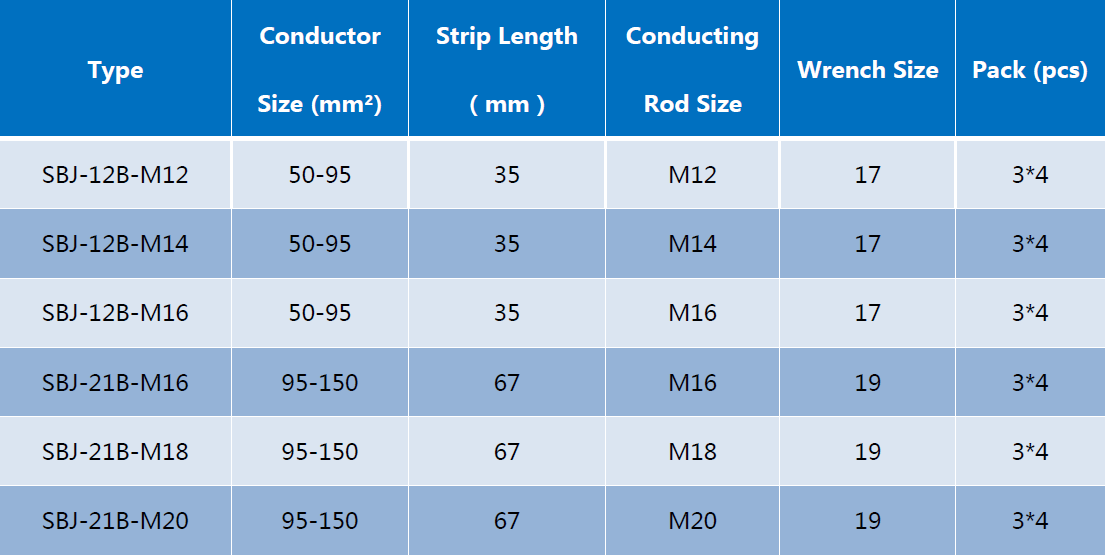

Technical chart for SBJ series equipment connector models and rod sizes.

Performance Features

Core Advantages

No cable lugs required
Shear head bolts for consistent torque
Fully isolated conducting parts
Prefilled with jointing compound
Color-coded sealing covers for phase identification
