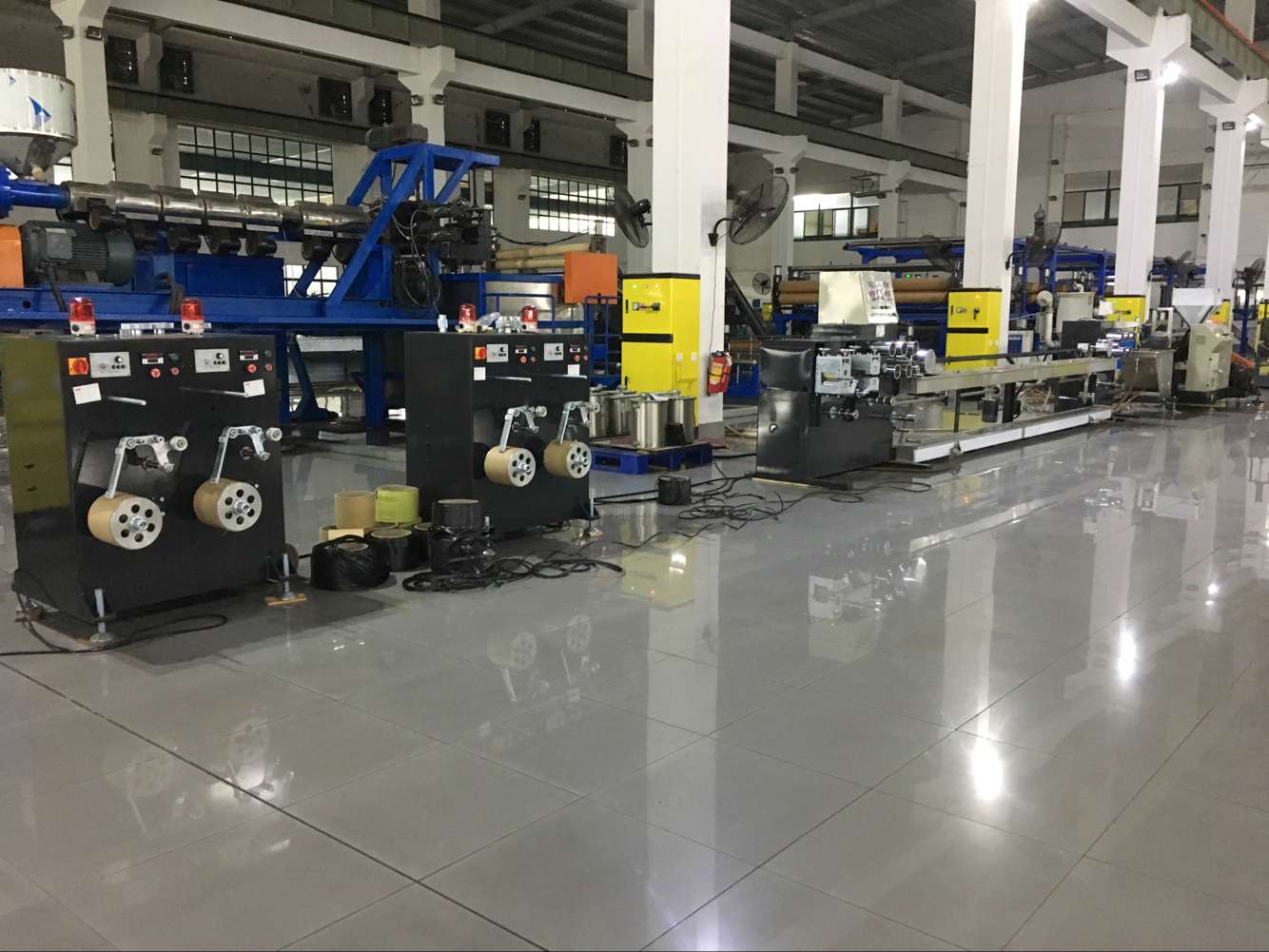

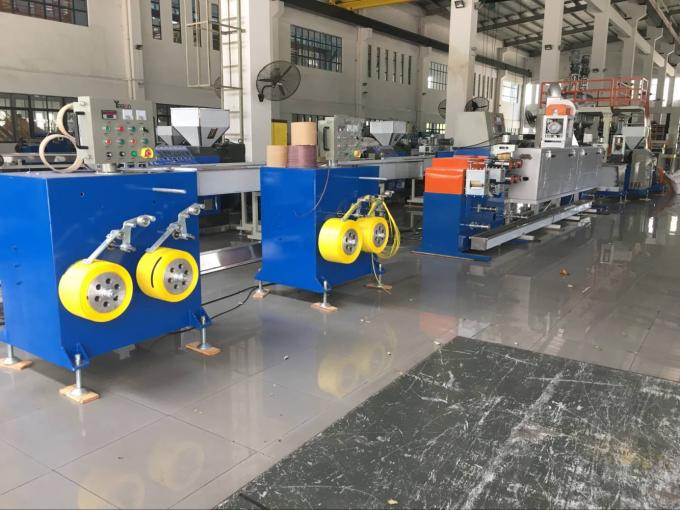

PP Strapping Band Extrusion Line
This line is specially designed for the production of PP Straps and can produce two straps simultaneously, saving energy. The shaping and calibrating tanks are made of stainless steel for durability.
Technical Specifications
Overview
High-Efficiency PP Strapping Solution
This industrial extrusion line is specifically engineered for the high-speed production of polypropylene (PP) strapping bands. Capable of processing both recycled granules and raw materials, the system produces two straps simultaneously, achieving significant energy savings of 20%-30%. With advanced PLC control and durable stainless steel water tanks, this line ensures stable, continuous performance for diverse industrial packaging needs.
Technical Specifications
- Processing Materials
- PP Recycled FlakesPP Granules
- Power Supply
- 3-phase 380V 50Hz
Performance Metrics
Production Output
150 kg/h
Max Productivity
120 m/min
Max Winder Speed
30 %
Energy Saving
Model Comparison
Technical Comparison Table
| Feature | SJ-65 | SJ-75 | SJ-90 |
|---|---|---|---|
| Extruder | SJ-65/30 | SJ-75/33 | SJ-90/33 |
| Productivity | 60-100kg/h | 80-120kg/h | 120-150kg/h |
| Drive Motor | 22kw | 30kw | 55kw |
| Strap Width | 5-20mm | 10-25mm | 20-35mm |
| Strap Thickness | 0.36-1.0mm | 0.5-1.3mm | 0.5-1.8mm |
