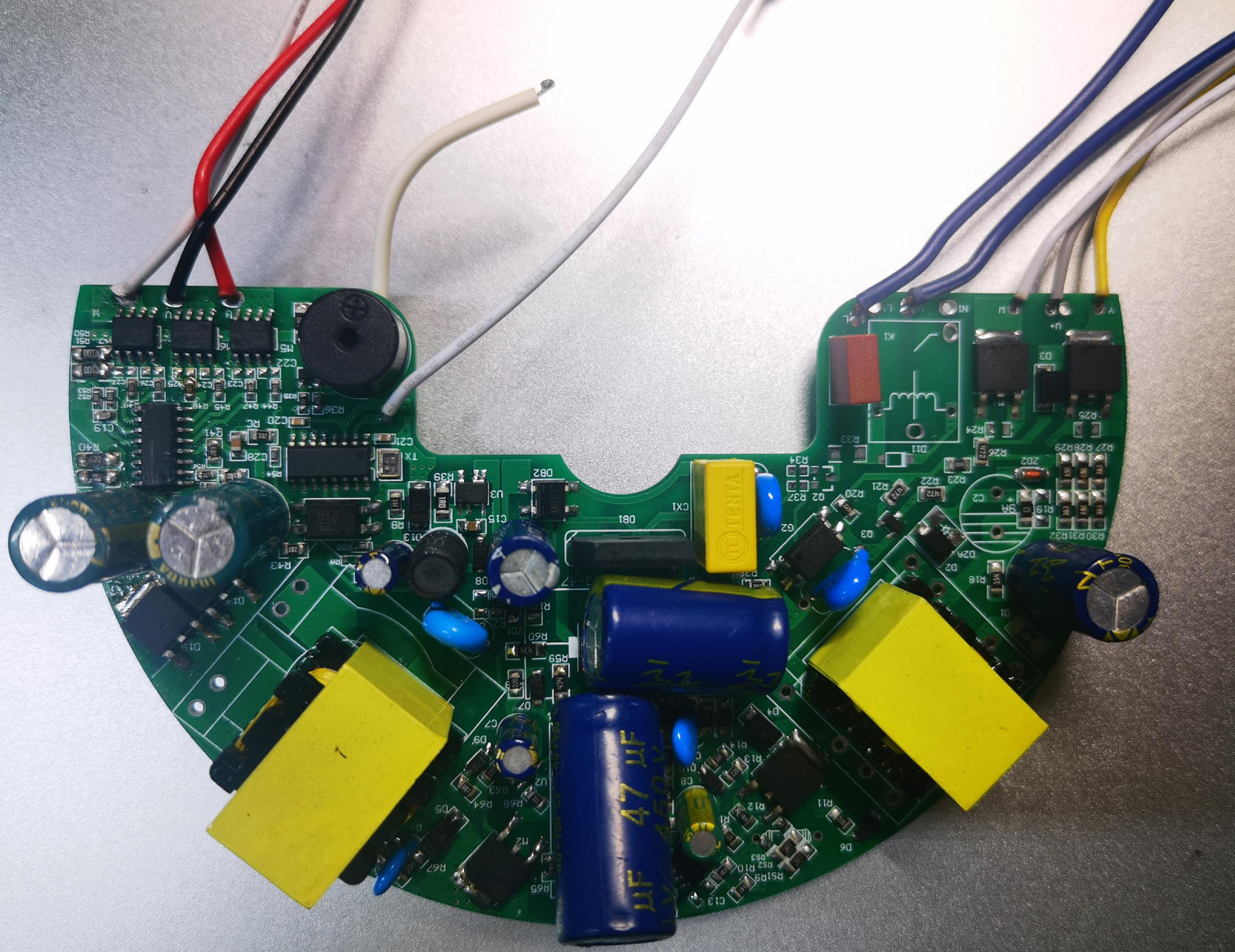

Power Supply Circuit Board with Inductors
This circuit board is a power supply unit populated with electronic components. It converts and regulates electrical power within an electronic device.
Technical Specifications
Product Overview
Power Supply and Control Board
This electronic circuit board is engineered for efficient power conversion and regulation within electronic devices. Featuring a compact, dense layout, it integrates essential components including transformers, capacitors, and inductors for stable performance. The board includes dedicated connectivity for power and signal input/output, making it a versatile control solution for integrated systems.
Technical Specifications
Inductor Specifications
| Component | Inductance Value |
|---|---|
| E10 | 3.0 mH |
| E13 | 1.35 mH |
| Unlabeled/General | 2.75 mH |
- Operating Frequency
- 433 MHz
- Output Voltage
- 3.3V
- Key Components
- CapacitorsResistorsDiodesTransistorsIntegrated CircuitsTransformersInductors
Connectivity
Interface & Test Points
- 3.3V Power
- GND (Ground)
- RX (Receive)
- TX (Transmit)
- CLK (Clock)
- DIO (Data I/O)
