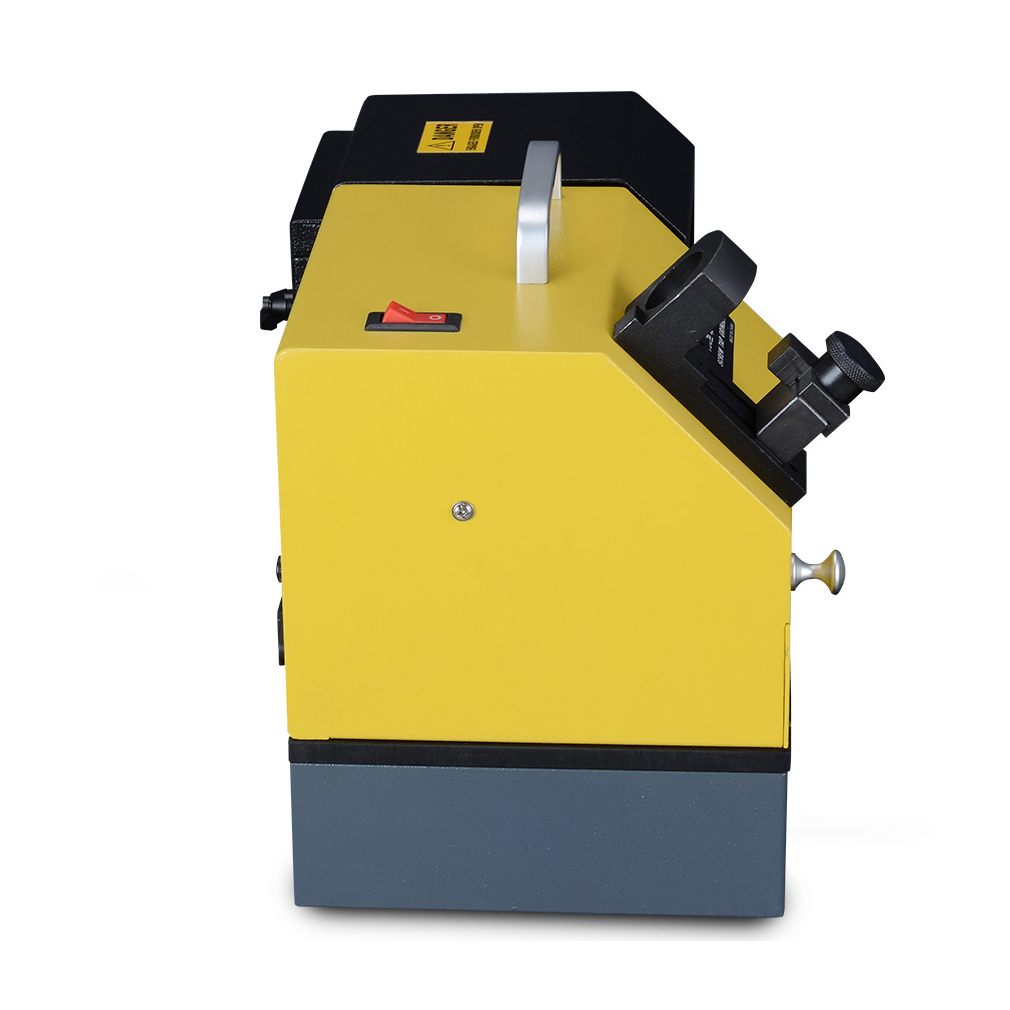

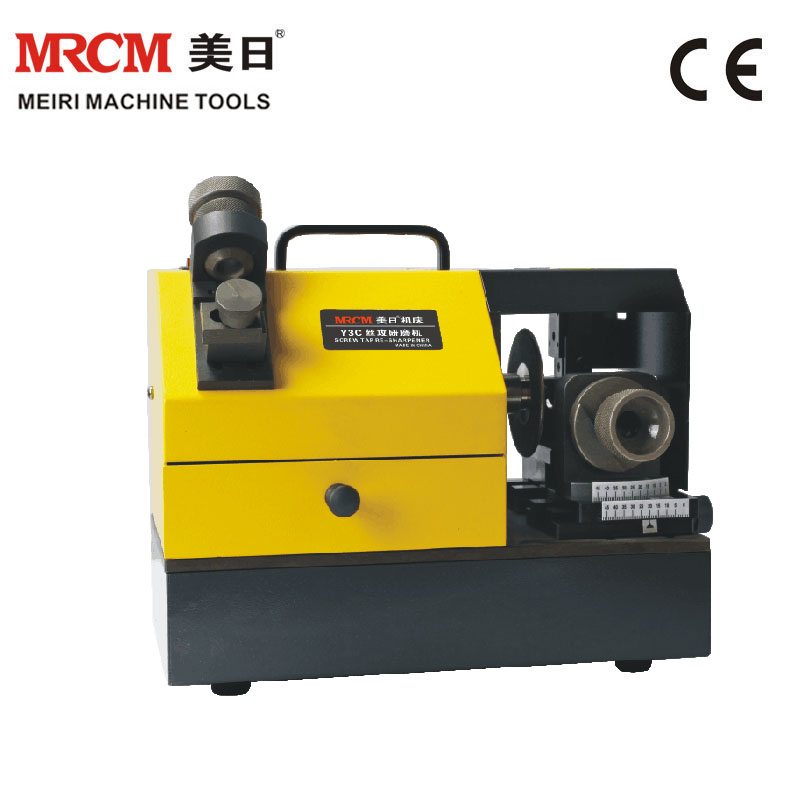

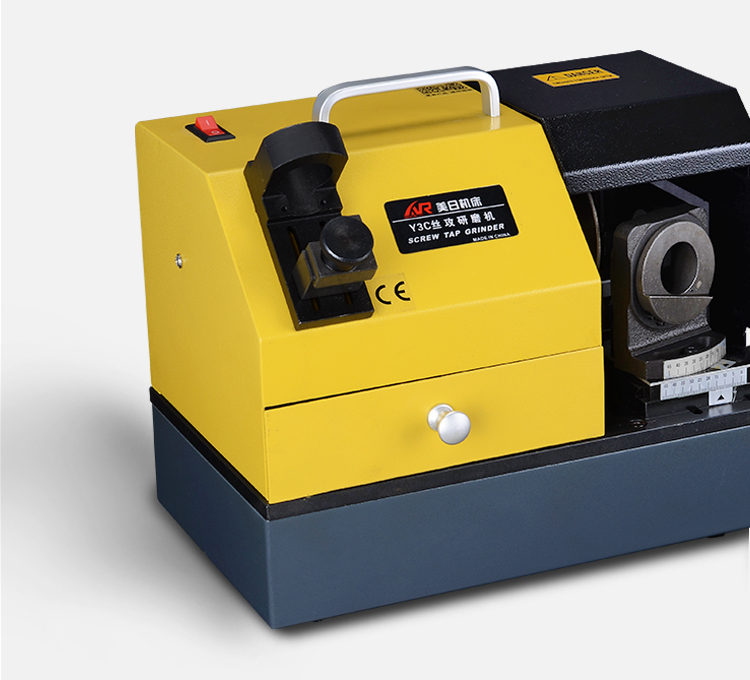

Portable Screw Tap Grinding Machine
This portable machine specializes in grinding screw taps with precision and efficiency. It utilizes a Taiwan diamond wheel for accurate angles and extended service life.
Technical Specifications
Product Overview
Precision Tap Grinding Solution
This portable screw tap grinding machine is engineered for high-precision re-sharpening and maintenance of screw taps. Designed to improve machining efficiency and extend the lifespan of your tooling, it allows for the accurate grinding of the front cutting face and cutting lip. The unit features an electrically controlled high-rate DC motor for stable, reliable power, making it a cost-effective solution for workshops looking to reduce annual blade replacement expenses.
Technical Specifications
- Grinding Range
- M5-M20
- Point Angle
- 5°-30°
- Motor Power
- 160 W
- Rotation Speed
- 4400 rpm
- Power Supply
- AC220V
- Dimensions
- 36 x 27 x 31 cm
- Weight
- 16 kg

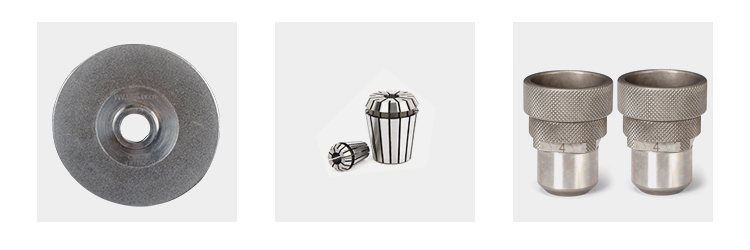

Standard Equipment
Included Components
- 1 x CBN Grinding Wheel (for HSS)
- 6 x Collets (Φ5, Φ7, Φ8, Φ9, Φ13, Φ14)
