Technical Specifications

Product Overview

Portable Respiratory Therapy Solution

This portable mesh nebulizer utilizes advanced technology to convert liquid medication into a fine mist for efficient inhalation. Designed for both adults and children, it offers a quiet operation and compact form factor suitable for home use or travel. The device features food-grade materials, dual power options, and an automatic shut-off function to ensure safety and ease of use.

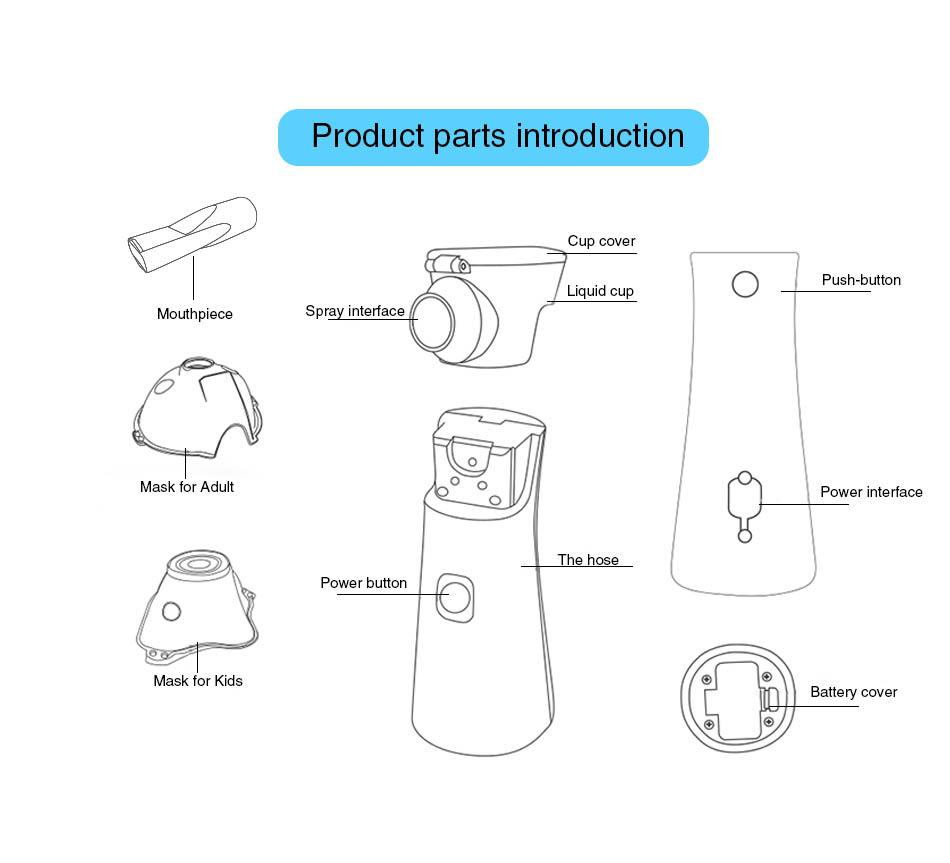

Diagram showing the various parts of the portable nebulizer including masks and main unit. — Product parts introduction, including masks, mouthpiece, and main unit components.

Technical Specifications

Physical Dimensions & Weight

Attribute	Value
Weight (without battery)	~110g
Dimensions	50mm x 48mm x 130mm

Performance Metrics

0.2 mL/min

Atomization Rate

3.7 µm

Particle Size

113 kHz

Nominal Frequency

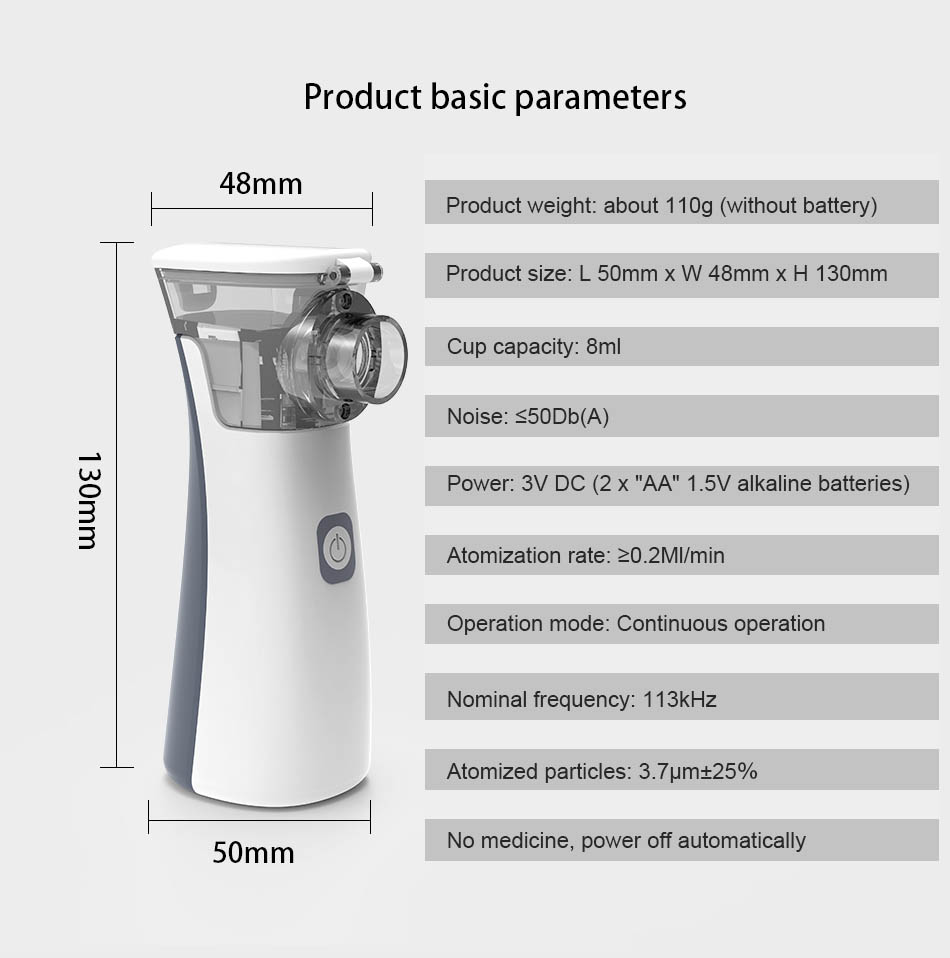

Technical specification sheet for the nebulizer. — Detailed technical parameters including weight, dimensions, and atomization rate.

Performance & Features

Operating Characteristics

Noise Level: ≤ 50dB(A)
Cup Capacity: Up to 8mL
Operation Mode: Continuous
Automatic shut-off when medicine is empty

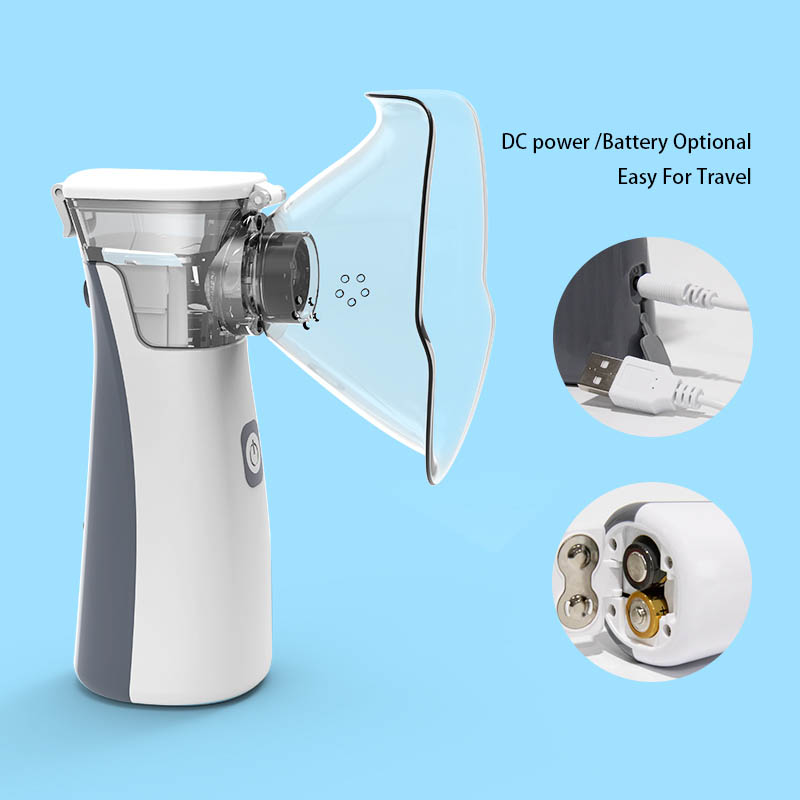

Power Options: 2 x AA BatteriesDC Power

Infographic showing low noise operation and cup capacity. — Quiet operation design with less than 50dB noise level and 8mL cup capacity.

Clinical Application

Common Applications

CoughColdSore ThroatBronchitisAsthmaRhinitis

Nebulizer being used to treat various respiratory conditions. — Suitable for assisting in the treatment of respiratory conditions like coughs, colds, and bronchitis.

Package Contents

What's in the Box

Nebulizer machine
Adult mask
Kids mask
Mouthpiece
Storage bag
DC cable
Lanyard
Warranty card
English Manual
