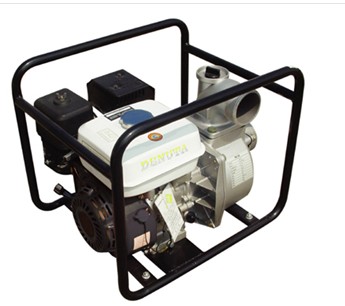

Portable Gasoline Water Pump and Generator for Vehicle and Equipment Applications
This versatile machine functions as both a gasoline/LPG generator and a water pump. It is suitable for a variety of applications including generators, water pumps, electrical cars, and trucks.
Technical Specifications
Product Overview
High-Performance Portable Power Solution
This portable gasoline-powered unit is engineered for versatility, serving as a reliable generator for various industrial and commercial applications. Featuring a robust 4-stroke, air-cooled engine with a 389cc displacement, it delivers consistent power output suitable for demanding environments. The unit is equipped with a 100% copper wire alternator and AVR technology, ensuring stable performance and longevity for your equipment.
Performance Metrics
Rated Output Power
5 KVA
Model DUG55
6 KVA
Model DUG55T
Max Output Power
5.5 KVA
Model DUG55
6.5 KVA
Model DUG55T
Technical Specifications
Engine Specifications
| Feature | Specification |
|---|---|
| Engine Model | YK168F-1 |
| Type | Single cylinder, 4-stroke, air-cooled, OHV |
| Displacement | 389 cc |
| Rated Speed | 3000 rpm |
| Starting System | Recoil |
Electrical Output
- Rated Frequency: 50 Hz
- Rated Voltage: 220/230 V
- DC Output: 12V-8.3A
- Alternator: 100% Copper Wire, Brush Motor, with AVR
Operation & Capacity
Fuel and Oil Capacity
22 L
Fuel Tank Capacity
1.1 L
Oil Capacity
8.2 h
Continuous Running Time
Dimensions & Logistics
Dimensions
- Generator Size: 680 x 510 x 540 mm
- Packing Size: 700 x 535 x 570 mm
- Net/Gross Weight: 83 kg
- Container Loading Quantity
- 125 sets per 20ft container / 260 sets per 40GP container
