Technical Specifications
Overview

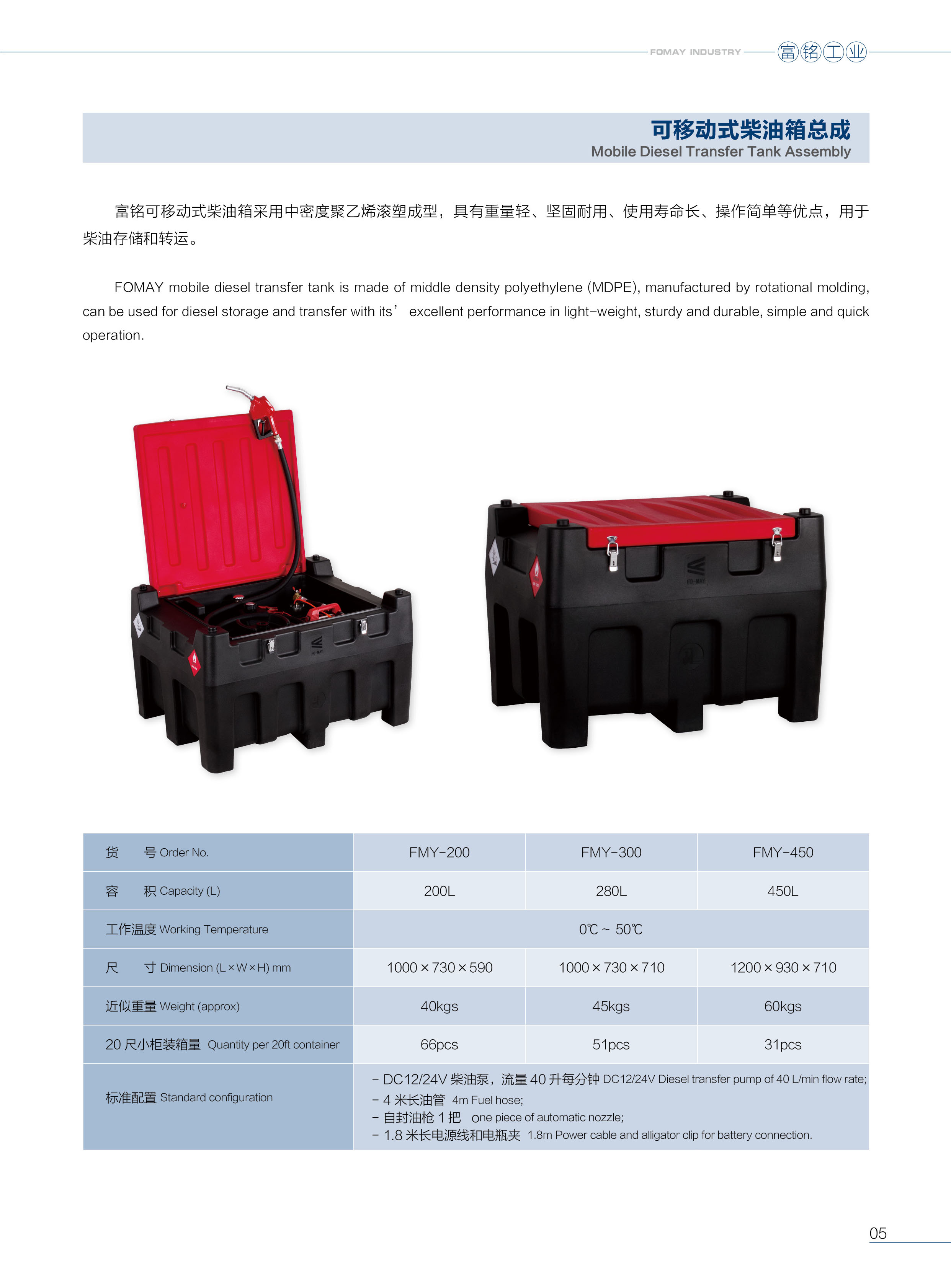

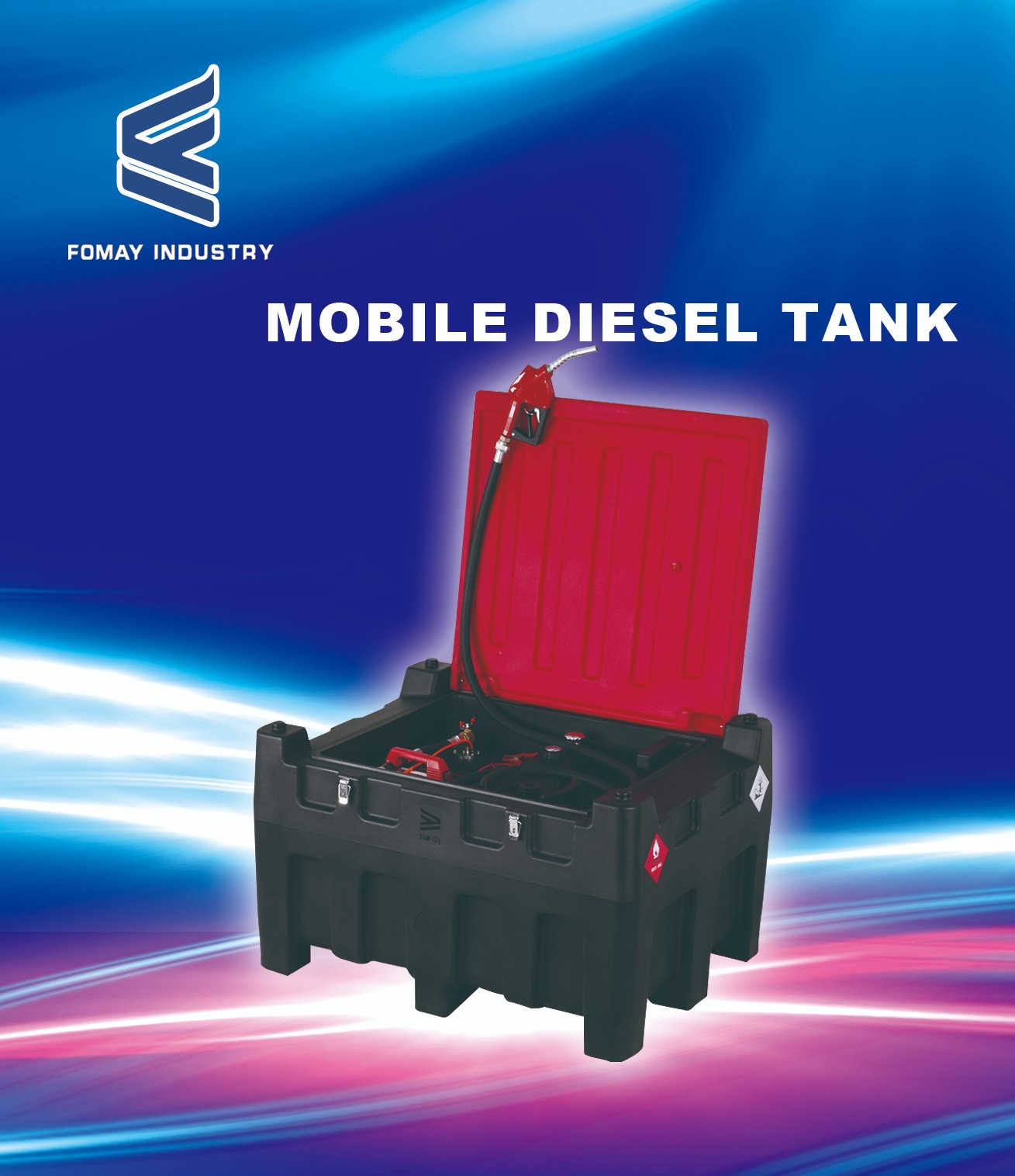

Mobile Diesel Fuel Transfer Solution
This mobile diesel transfer tank is engineered for efficient fuel storage and on-site dispensing. Constructed from durable, rotationally molded middle-density polyethylene, it offers a lightweight yet rugged solution for refueling machinery in remote locations like construction sites and agricultural operations. The unit comes fully equipped with a high-flow transfer pump, fuel hose, and nozzle, ensuring rapid and simple operation for professional users.
Technical Specifications
- Material
- Middle-density polyethylene (MDPE)
- Manufacturing Process
- Rotational molding
- Working Temperature
- 0°C to 50°C
Performance
Pump Flow Rate
40 L/min
Flow Rate
Standard Accessories
- 4m fuel hose
- Automatic dispensing nozzle
- 1.8m power cable with alligator clips
- Pump Voltage
- DC 12VDC 24V
Models & Dimensions
Model Specifications
| Model | Capacity (L) | Dimensions (LxWxH mm) | Weight (kg) | 20ft Container Qty |
|---|---|---|---|---|
| FMY-200 | 200 | 1000 x 730 x 590 | 40 | 66 |
| FMY-300 | 280 | 1000 x 730 x 710 | 45 | 51 |
| FMY-450 | 450 | 1200 x 930 x 710 | 60 | 31 |
