Portable Bluetooth Speaker with LED Illumination
This portable Bluetooth speaker provides wireless audio streaming and hands-free calling. Its compact design includes a micro USB charging port, SD card slot, and AUX input.
Technical Specifications
Overview
Compact Portable Audio Solution
The BT-S017B is a versatile portable Bluetooth speaker designed for high-quality audio streaming in a compact 76mm cube form factor. It features vibrant LED illumination and multiple input modes including TF card and AUX, making it an ideal choice for both indoor and outdoor environments. With integrated hands-free calling and intuitive playback controls, it offers a seamless user experience for professional and personal use.
Key Performance Metrics
Performance Highlights
3 W
Output Power
500 mAh
Battery Capacity
10 m
Wireless Range
5 h
Max Playtime
Technical Specifications
Audio Performance
| Parameter | Value |
|---|---|
| Speaker Driver | 4Ω / 3W |
| Frequency Response | 100Hz - 18KHz |
| Signal-to-Noise Ratio | ≥75dB |
| Distortion | ≤0.1% (1KHz 1W) |
Connectivity & Functions
Integrated Features
- Voice Prompt Notifications
- Hands-free Calling
- LED Illumination
- On-device Play/Pause Control
- Volume +/- Adjustment
- Track Navigation (Last/Next)
- Connectivity Modes

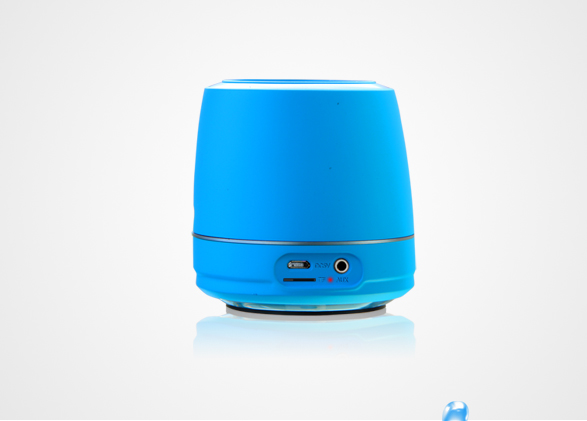

- Bluetooth V3.0TF Card Slot3.5mm AUX InComputer CopyMicro USB Charging
Power Management
- Charging Time
- 2 hours
- Operating Time
- 3-5 hours
- Charging Voltage
- USB 5V (500mA)
Physical Dimensions
- Dimensions
- 76 x 76 x 76.5 mm
