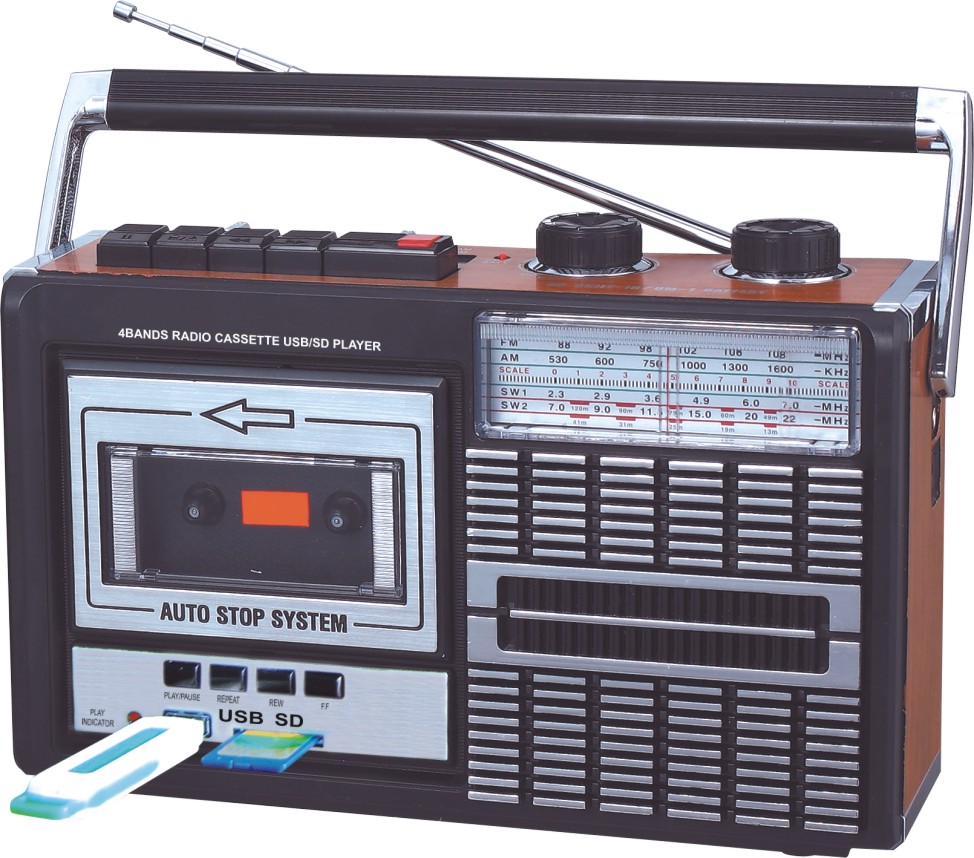

Portable 4-Band Radio Cassette Player with USB/SD
This portable device features AM/FM/SW1/SW2 radio bands and cassette playback with an auto-stop system. It also supports USB and SD card playback with functions like play/pause, repeat, rewind, and fast forward.
Technical Specifications
Overview
Versatile Portable Audio Solution
This portable 4-band radio cassette player combines classic analog media with modern digital connectivity. It features AM/FM/SW1/SW2 radio reception alongside a cassette recorder and Bluetooth capabilities for wireless streaming. With integrated USB and SD card slots, it serves as a comprehensive audio hub for various professional and personal environments.
Radio Specifications
Frequency Coverage
| Band | Frequency Range |
|---|---|
| AM | 530 - 1600 KHz |
| SW1 | 2.3 - 7.0 MHz |
| SW2 | 7.0 - 22 MHz |
- Supported Radio Bands
- AMFMSW1SW2
Media & Connectivity
Digital Connectivity
BluetoothUSB SlotSD Card Slot
Cassette Player Functions
- Cassette Recorder
- Auto-Stop System
- Rewind (REW)
- Fast Forward (FF)
- Play Indicator
Digital Playback Controls
- Play/Pause
- Repeat Function
Power & Audio
Power Input Options
- AC: 110V-220V
- DC: 6V In Jack
Audio Output
1 3.5mm
Headphone Jack
Hardware Design
- Antenna Type
- Telescopic Antenna
