Polyurethane Pneumatic Tubing
Pneumatic tubes are constructed from ester-based polyurethane, providing excellent resistance to pressure, weather, and corrosion. They are designed for industrial automation, pneumatic tools, fluid transfer, and protective sleeving.
Technical Specifications
Product Overview
Versatile Polyurethane Pneumatic Tubing
These ester-based polyurethane pneumatic tubes are engineered for high performance in demanding industrial environments. Featuring excellent pressure resistance, weatherability, and flexibility, they are suitable for a wide range of applications including industrial automation, pneumatic tools, and vacuum systems. The tubing is available in straight, coiling, and multi-row configurations to suit various installation requirements.
Technical Specifications
- Material Hardness
- 95A-98A
- Operating Temperature
- -20°C to +80°C
- Compatible Fluids
- Compressed AirWaterVacuum
- Construction Material
- Polyester Polyurethane
Performance Metrics
Pressure Ratings
10 bar
Max Working Pressure
30 bar
Max Burst Pressure
Common Applications
- Industrial Automation
- Pneumatic Tools
- Robotics
- Protective Sleeving
- Mining Equipment

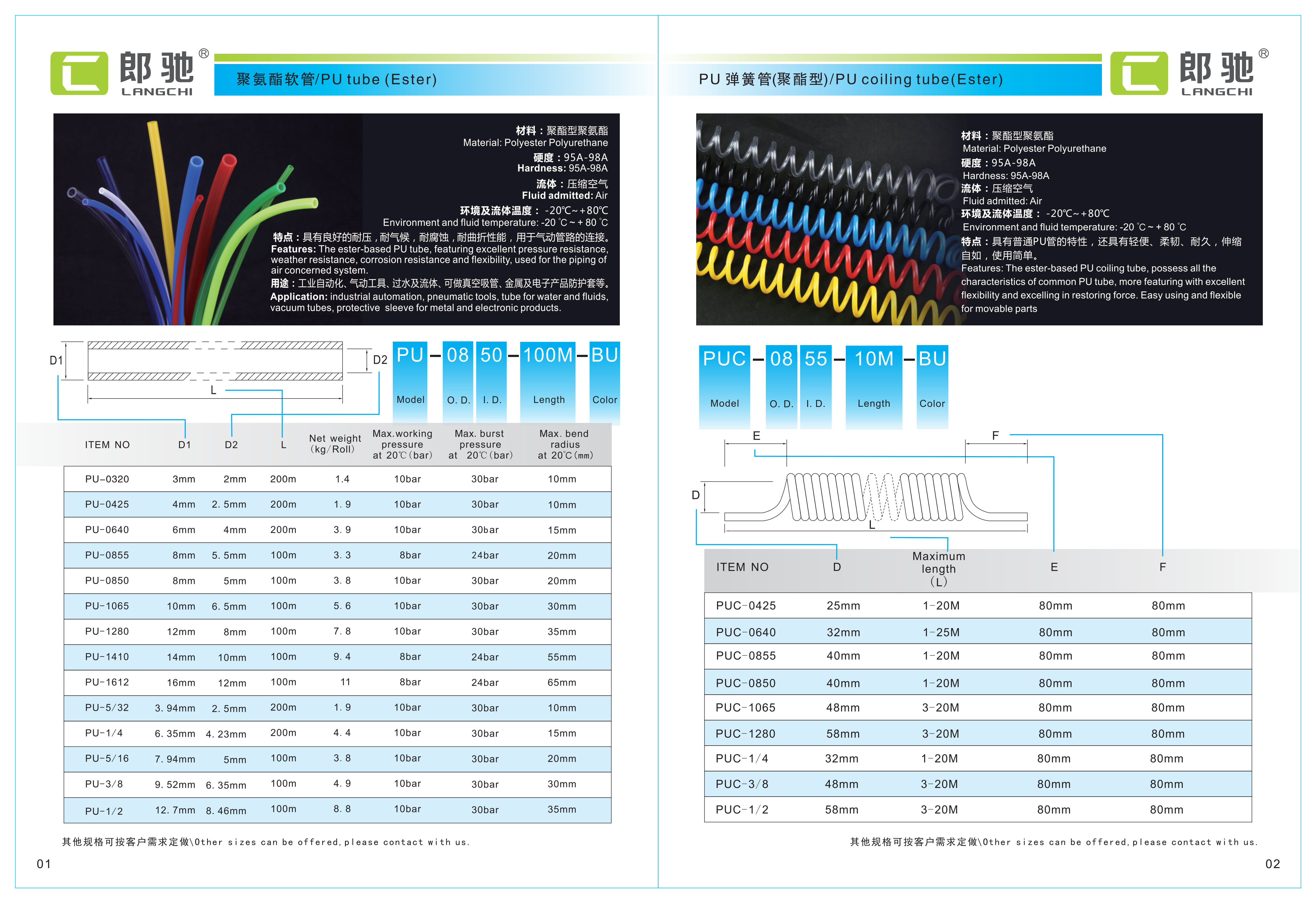

Standard Tubing Data
Standard Tubing Dimensions
| Model | O.D. | I.D. | Bend Radius |
|---|---|---|---|
| PU-0320 | 3mm | 2mm | 10mm |
| PU-0425 | 4mm | 2.5mm | 10mm |
| PU-0640 | 6mm | 4mm | 15mm |
| PU-0850 | 8mm | 5mm | 20mm |
| PU-1280 | 12mm | 8mm | 35mm |
