Polycrystalline Solar Panel 295-300W
Irradiance of 1000W/m2, AM1.5 spectrum, cell temperature of 25°C. Specifications included in this datasheet are subject to change without prior notice.
Technical Specifications
Overview
High-Efficiency Polycrystalline Solar Modules
These polycrystalline solar modules are engineered for optimal energy conversion in residential, commercial, and utility-scale applications. Built with a robust design and high-quality materials, they offer excellent durability and reliable long-term performance. The modules feature advanced cell technology and are compliant with major international industry standards, ensuring consistent power output.
Electrical Characteristics
Power Output Range
295 W
Minimum Power
300 W
Maximum Power

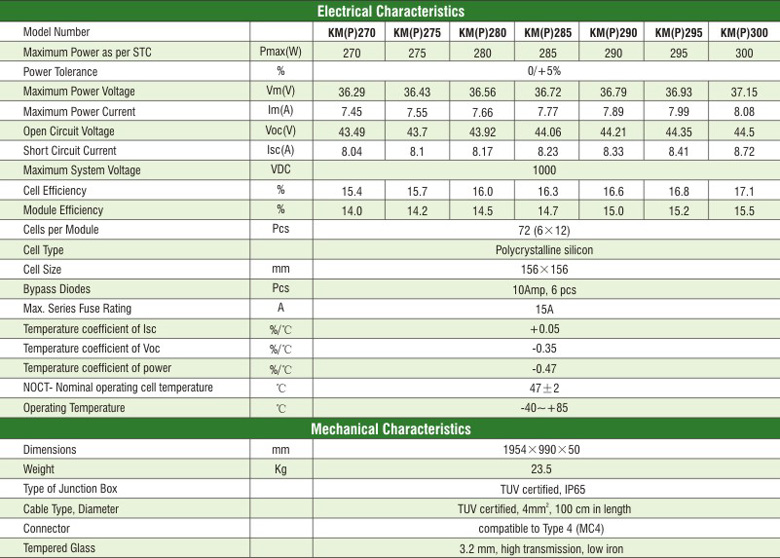

Electrical Specifications (STC)
| Parameter | 295W Model | 300W Model |
|---|---|---|
| Max Power (Pmax) | 295W | 300W |
| Max Power Voltage (Vm) | 36.93V | 37.15V |
| Max Power Current (Im) | 7.99A | 8.08A |
| Open Circuit Voltage (Voc) | 44.35V | 44.5V |
| Short Circuit Current (Isc) | 8.41A | 8.72A |
Efficiency
17.1 %
Max Cell Efficiency
15.5 %
Max Module Efficiency
Mechanical Characteristics
Construction Features
- 72 (6x12) Polycrystalline silicon cells
- 3.2mm Tempered glass (high transmission, low iron)
- IP65 TUV certified junction box
- Drainage holes for water runoff

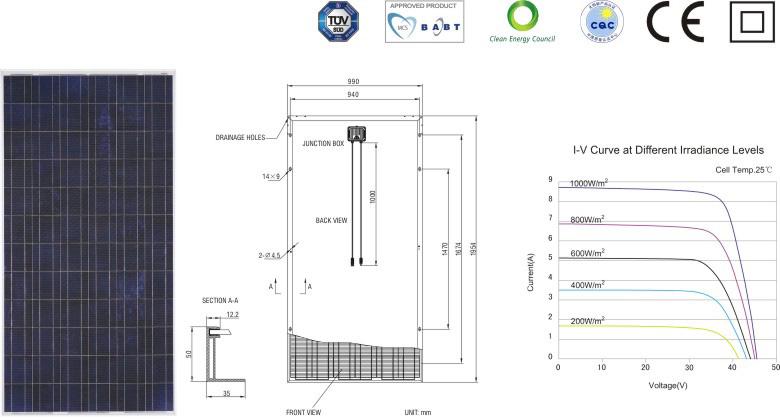

- Dimensions
- 1954 x 990 x 50 mm
- Weight
- 23.5 kg
Certifications & Compliance
Certifications
TUV SUDMCSBABTClean Energy CouncilCE
Operating Conditions
Temperature Coefficients
| Parameter | Value |
|---|---|
| Isc | +0.05 %/°C |
| Voc | -0.35 %/°C |
| Power | -0.47 %/°C |
- Operating Temperature Range
- -40°C to +85°C
