Pneumatic Y-Type Tank Bottom Angle Valve

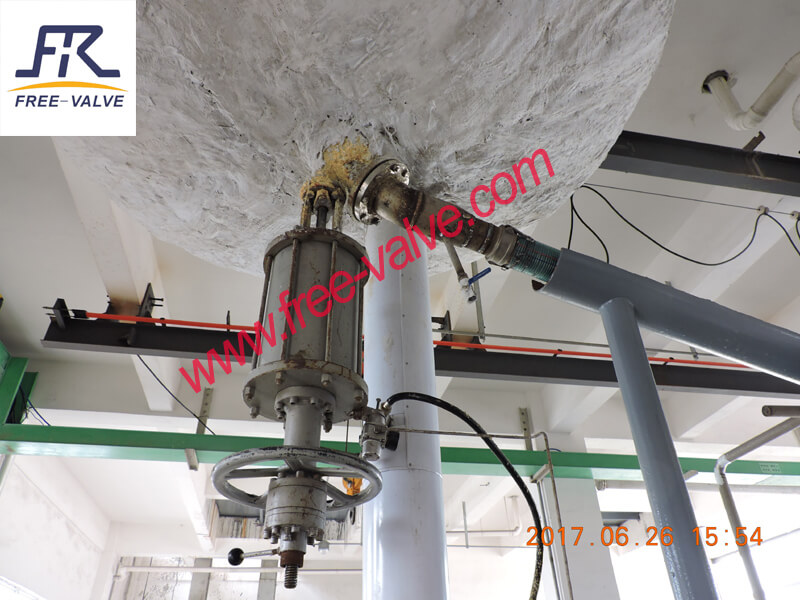

Pneumatic Y-type tank bottom angle valves facilitate rapid material or sample discharge from reactor bottoms and drain or feed vessels. These valves can be welded or flange-mounted to vessels, commonly installed for feeding or draining applications in pipelines.
Technical Specifications
Product Overview
High-Performance Tank Bottom Angle Valve
This pneumatic Y-type tank bottom angle valve is engineered for efficient discharging and sampling from reactor vessels and drain pipelines. It features a robust, integrated structure with a rotation-resistant design to ensure precise linear stem motion. Designed for extreme reliability, the valve utilizes hardened sealing surfaces with cemented or tungsten carbide to withstand erosion and corrosion in demanding industrial applications.
Technical Specifications
Available Outlet Angles
- 45
- 50
- 90
Body Materials
Carbon SteelStainless Steel
- Pressure Class
- Class 150Class 300
- Size Range
- DN50 - DN350 (NPS 2 - NPS 14)
- Maximum Temperature
- 425 °C
- Connection Standards
- ASME B16.5GB/T9113
- Control Options
- PneumaticManualElectric
Industry Applications
Primary Industries
- Petrochemical
- Alumina
- Steel
- Polymer
- Mining
- Pharmaceutical
- Fine Chemicals
- Mineral Processing
