Pneumatic Tank Bottom Angle Valve

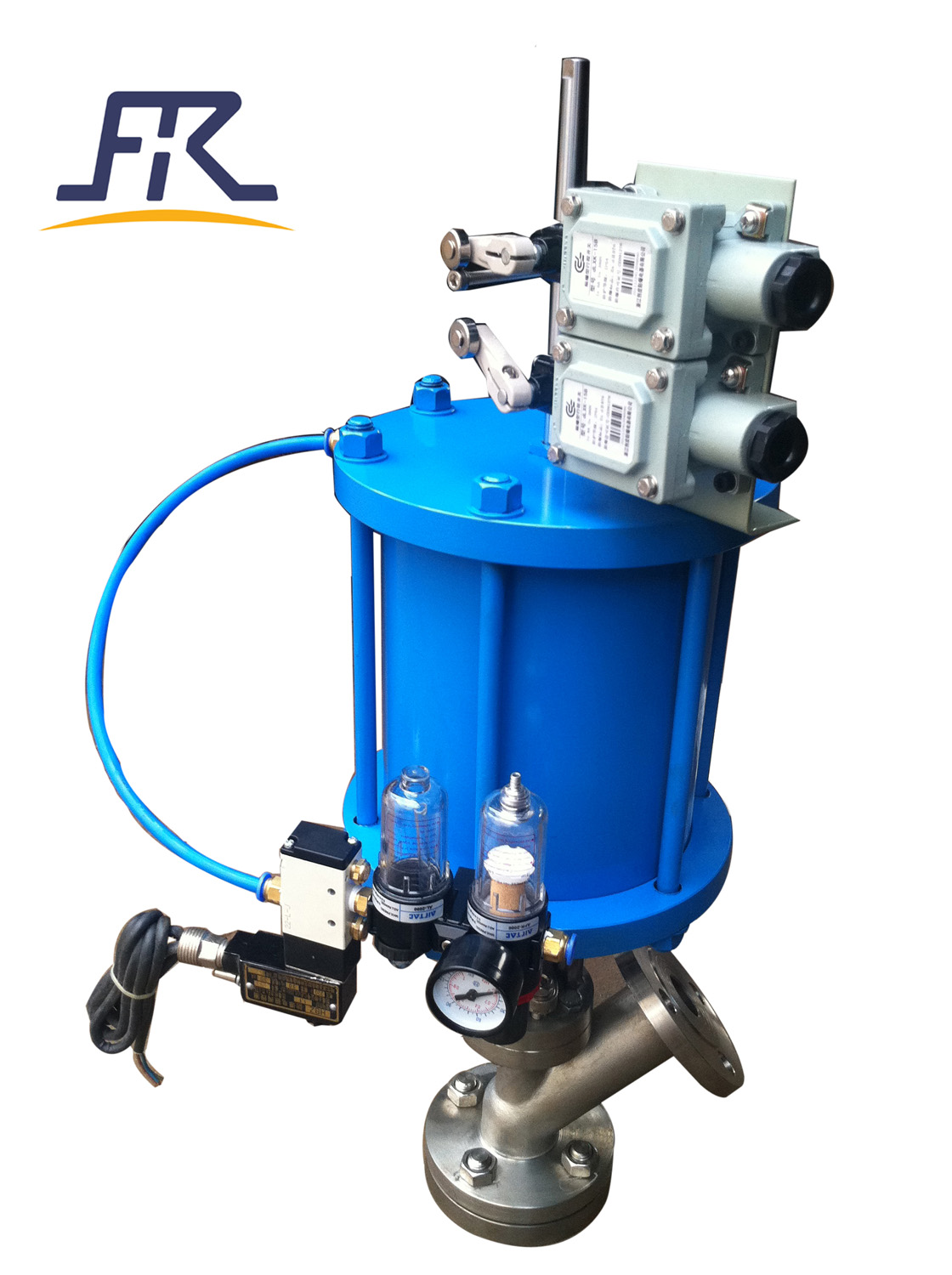

This pneumatic tank bottom angle valve is designed for efficiently discharging material from tanks. Its robust construction includes a stainless steel angle body and a pneumatic actuator for automated operation.
Technical Specifications
Product Overview
High-Performance Tank Bottom Discharge

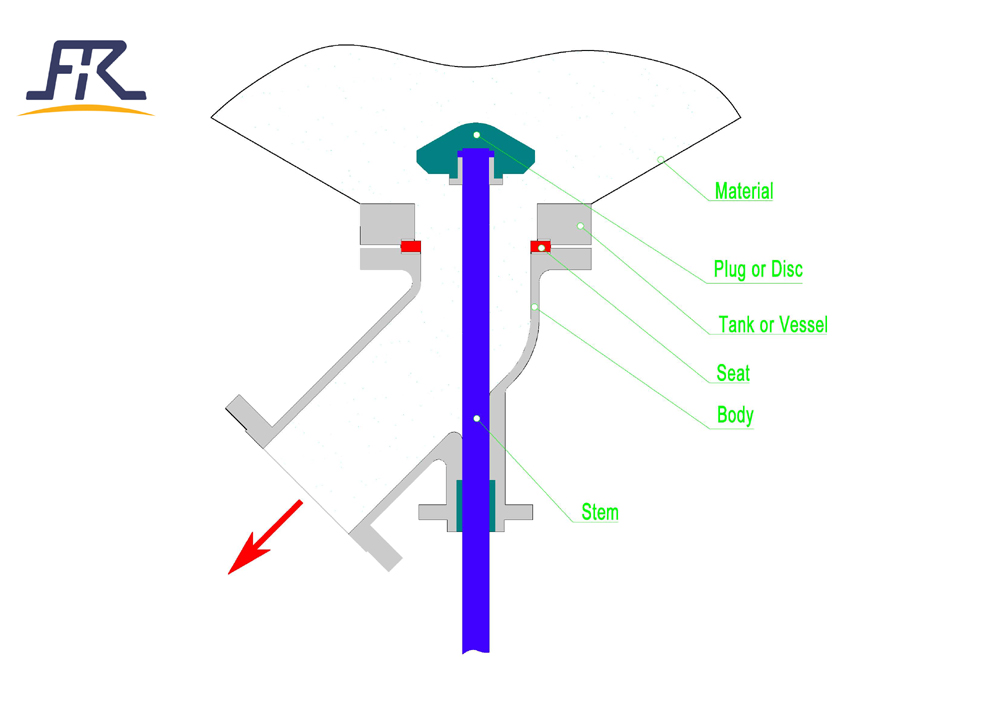

Designed for rapid and efficient material discharge, this pneumatic tank bottom angle valve is engineered for demanding industrial environments. It features a robust, integrated structure with a 45-degree outlet angle, ensuring dead-space-free draining for reactors and feed vessels. With advanced erosion resistance and precise actuation capabilities, it provides reliable, leak-free performance for critical process applications.
Technical Specifications
- Size Range
- DN50 to DN350 (NPS 2 to NPS 14)
- Pressure Class
- Class 150 to Class 300
- Maximum Working Temperature
- 425 °C
- Connection Standards
- ASME B16.5GB/T 9113
- Design Standard
- ASME B16.34
- Testing Standards
- GB/T 13927API 598
Configuration & Materials
Body Materials
- Carbon Steel
- Stainless Steel
Operating Types
PneumaticManualElectric
- Sealing Surface Material
- Alloy (Cemented Carbide/Tungsten Carbide overlay)
Key Features
Performance Metrics
45 °
Outlet Angle
Design Highlights
- Integrated structure for durability
- Rotation-resistant stem design
- Protection plate for erosion resistance
- Auxiliary line sealing for reliability
- Remote or local solenoid control
Applications
- Suitable Industries
- PetrochemicalAluminaSteelPolymerMiningPharmaceuticalFine ChemicalsMineral Processing
