Technical Specifications
Overview
High-Performance Pneumatic Starting System
This pneumatic starting system is engineered for reliability and versatility, covering a power range of 4-52KW. Designed for multi-cylinder engines with a displacement of 4-300L, it utilizes advanced vane-type and turbine-type motor principles. The system ensures robust performance through pre-engagement and inertial ring gear meshing, making it an ideal solution for demanding industrial engine applications.
Technical Specifications
Power Range
4 KW
Min Power
52 KW
Max Power
- Engine Displacement
- 4-300L
- Operating Principles
- Vane-type motorTurbine-type motorPre-engagement meshingInertial ring gear meshing
Certifications
Certifications
ABSLloyds RegisterKorean Register of Shipping
System Components

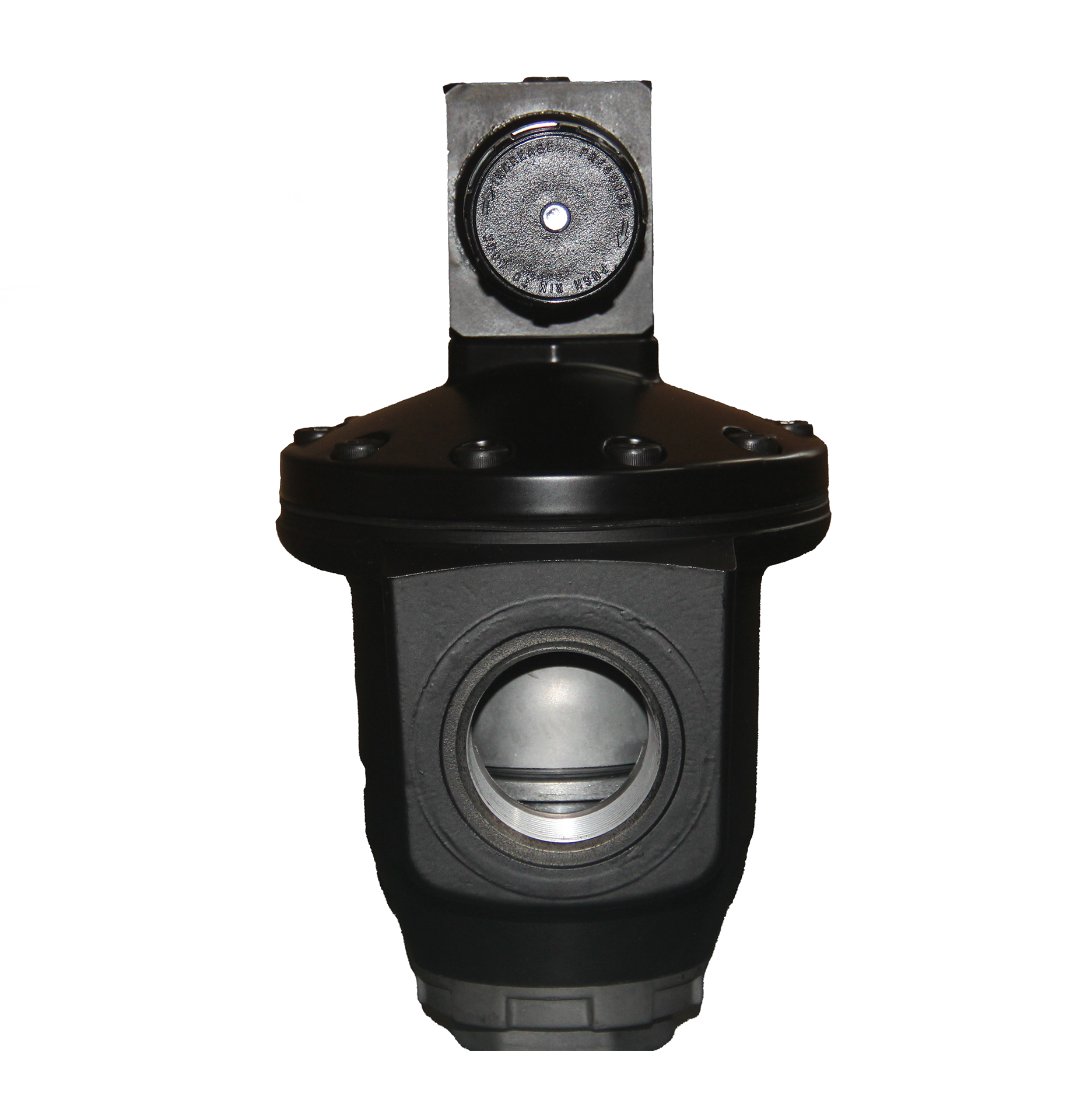

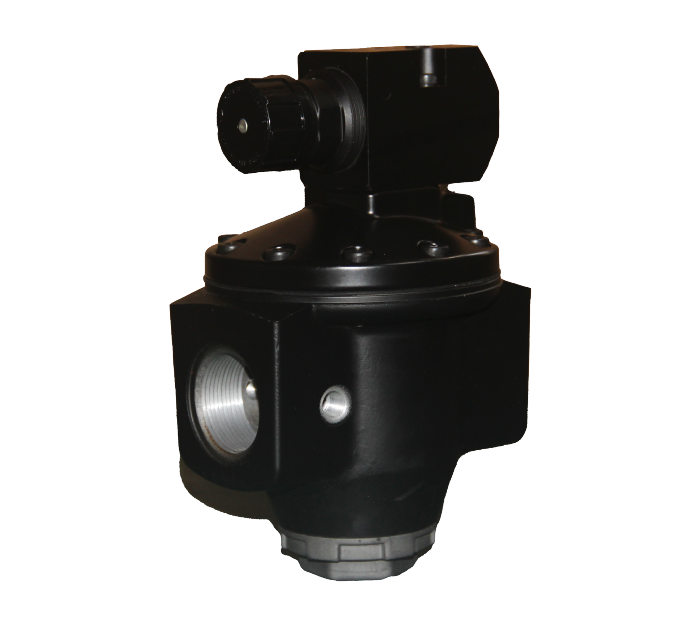

- Pressure Regulation
- Integrated pressure regulator for constant output pressure control
- Actuation Mechanism
- Rotary actuator for precise positioning and torque control
- Flow Control Valve
- Heavy-duty industrial valve for flow management
Compatibility
Supported Engine Series
| Engine Category | Series Examples |
|---|---|
| MAN | 16/24, L23/30H, 12&16V28/32A, L21/31, L28/32H, L32/40 |
| Caterpillar | 3516, 3116, 3512, 3612, 3618, 3126, D-334 |
| Cummins | 6BT5.9, K50, K38, N-855, QSK60, QST30, K19 |
| Wartsila | 12V26, 16V26, 18V26, 12V200, 12V25SG |
