Pneumatic Quick Connect Fittings
These pneumatic fittings ensure secure, leak-proof connections in pneumatic systems. They are suitable for compressed air, vacuum, and fluid transfer applications, offering reliable performance.
Technical Specifications
Product Overview
High-Performance Pneumatic Fittings

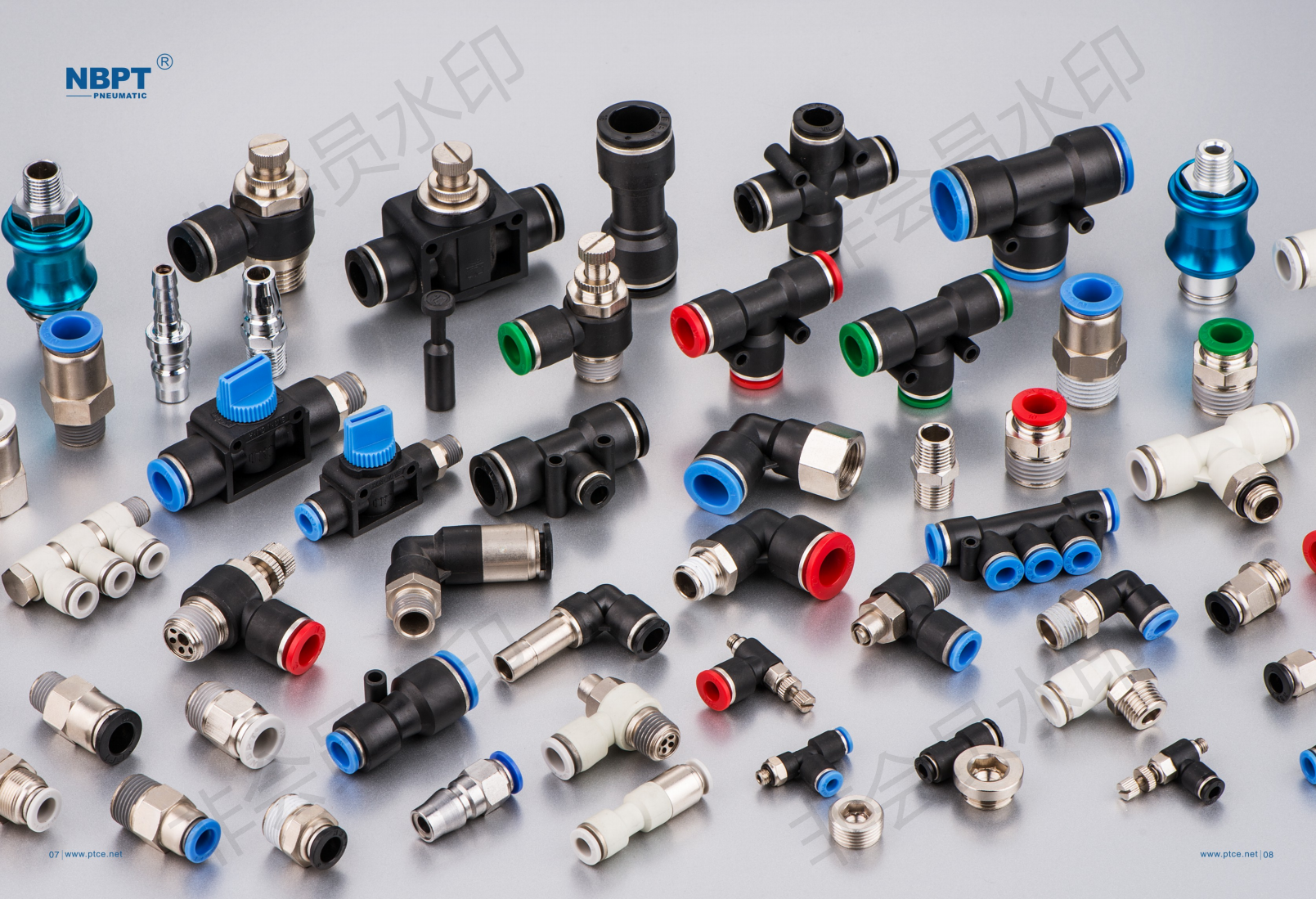

These pneumatic quick connect fittings are engineered for efficient, leak-proof piping systems in demanding industrial environments. Featuring a nickel-plated metal body for superior corrosion resistance and one-touch installation, they allow for flexible tube positioning even after assembly. They are fully compatible with nylon, polyurethane, and polyethylene tubing, making them versatile for compressed air, vacuum, and fluid transfer applications.
Technical Specifications
Performance Metrics
1 MPa
Operating Pressure
1.5 MPa
Max Pressure
-100 Kpa
Negative Pressure
60 °C
Max Temperature
- Compatible Tubing Materials
- NylonPolyurethane (PU)Polyethylene
- Supported Thread Types
- NPTBSPT (R)MetricG-ThreadUNF
Construction & Materials
Material Breakdown
- Nickel-Plated Brass (Body)
- POM (Sleeve/Button)
- NBR (Seals)
- Zinc Alloy (Collar)
- Stainless Steel (Lock Claws)
- PBT (Resin Body)
Sealing Features
Pre-coated sealant on R/NPT threadsStandard O-Ring seals on cylindrical threadsLeak-proof design
Product Variety
Available Configurations
- Straight Connectors
- Elbow Connectors
- Tee Connectors
- Cross Connectors
- Y Connectors
