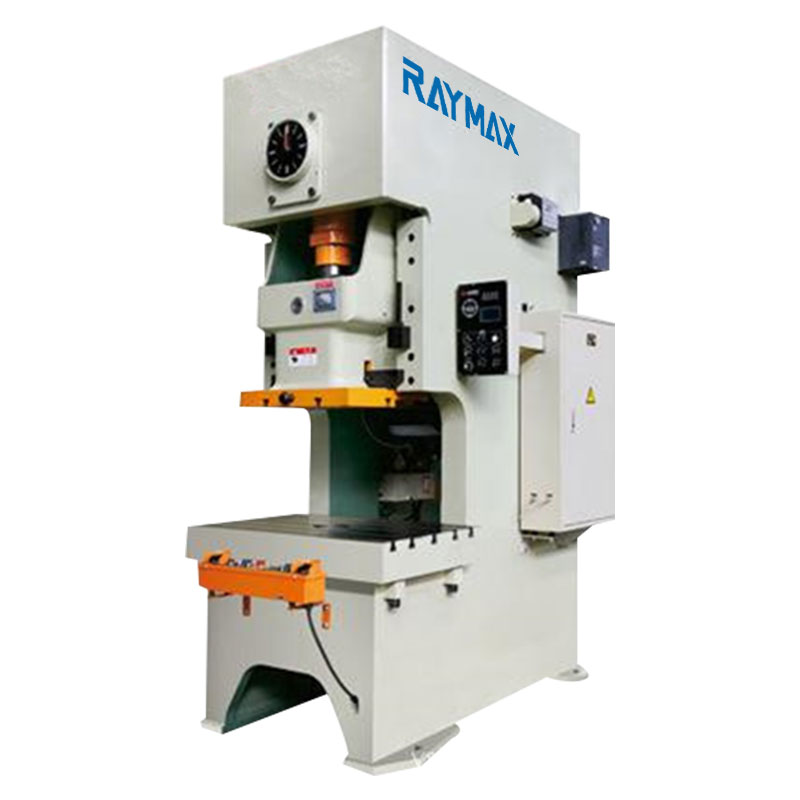

Pneumatic Metal Punching Machine
This pneumatic metal punching machine is a robust machine for various punching applications. It features a rigid frame, adjustable stroke length, and a user-friendly control panel.
Technical Specifications
Overview
Industrial Pneumatic Punching Performance
This pneumatic metal punching machine is engineered with a steel plate welded C-frame body, treated for heat resistance to ensure high rigidity, accuracy, and stability. It incorporates a wet-type pneumatic clutch with a safety solenoid valve to provide lower noise levels and extended service life. Designed for reliability, the system features a hydraulic overload protection mechanism that automatically stops the press if an overload is detected, protecting both the machine and the die.
Technical Specifications
Lubrication Systems
- Cluster gear flooding oil lubrication
- Electric compelling grease lubrication system
- Manual lubrication system for balancing cylinders
- Molding Accuracy
- 0.1 mm
- Guide Configuration
- Six-face rectangular lengthened guideEight-face lengthened guide (CP1-315B/400B)
Features & Safety
Safety & Protection
Hydraulic Overload ProtectionSafety Solenoid ValvePneumatic Balancing DeviceCombined Friction Clutch & Brake
Key Components
- High-quality gears
- Bushes
- Cylinders
- Link rods
- Ball screw
- Blowing device
