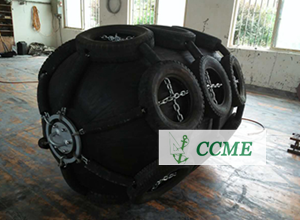

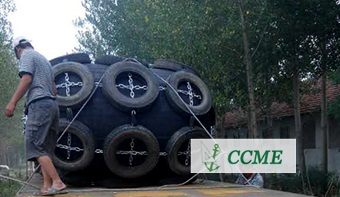

Pneumatic Marine Rubber Fender for Ship Berthing
This protection facility is suitable for installation on wharves. It absorbs energy upon ship alongside, reducing impact strength to ensure the vessel and wharf's structural integrity.
Technical Specifications
Product Overview
High-Performance Pneumatic Marine Fenders
These pneumatic rubber fenders are engineered for superior energy absorption and low reaction force during ship-to-ship and ship-to-shore berthing operations. Their design allows them to float and adjust naturally with tidal movements, ensuring consistent protection for hulls, quays, and jetties. Built for durability, they maintain uniform compression performance without rubber deterioration, even under oblique impact conditions.
Key Features
Operational Advantages
- High energy absorption with low reaction force
- Uniform surface pressure distribution
- Effective under oblique compression
- Floats and adjusts to tidal changes
- Easy installation
Technical Specifications
Standard Sizes and Performance
| Size (D x L) | Energy Absorption | Reaction Force |
|---|---|---|
| 500 x 1000 mm | 6 | 64 |
| 600 x 1000 mm | 8 | 74 |
| 700 x 1500 mm | 17 | 137 |
| 1000 x 1500 mm | 32 | 182 |
| 1000 x 2000 mm | 45 | 257 |
| 1200 x 2000 mm | 63 | 297 |
| 1350 x 2500 mm | 102 | 427 |
| 1500 x 3000 mm | 153 | 579 |
| 1700 x 3000 mm | 191 | 639 |
| 2000 x 3500 mm | 308 | 875 |
| 2500 x 4000 mm | 663 | 1,381 |
| 2500 x 5000 mm | 857 | 1,835 |
| 2500 x 5500 mm | 943 | 2,019 |
| 3000 x 5000 mm | 1,050 | 2,000 |
| 3000 x 6000 mm | 1,312 | 2,488 |
| 3300 x 4500 mm | 1,175 | 1,884 |
| 4500 x 9000 mm | 4,752 | 5,747 |
| 4500 x 12000 mm | 6,473 | 7,984 |
- Initial Pressure
- 0.05 MPa
