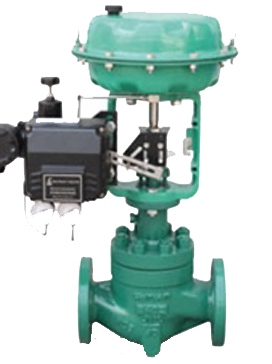

Pneumatic Diaphragm Control Valve
This control valve features a compact structure and an advanced operation actuator system. It provides high durability and stability in liquid, gas, and steam applications, simplifying maintenance and reducing costs.
Technical Specifications
Product Overview
High-Performance Industrial Control Valve
This pneumatic diaphragm control valve is engineered for advanced industrial automation and precise flow regulation. Featuring a compact, durable design with an optimized actuator system, it ensures high stability and simplified maintenance. Suitable for liquid, gas, and steam applications, this valve is built to handle demanding environments across various industrial sectors.
Technical Specifications
Bonnet Types
- Standard (-5°C to 230°C)
- Radiator (-45°C to >230°C)
- Low Temperature Extended (-196°C to -45°C)
- Bellow Seal
- Nominal Size Range
- DN25 to DN500 (1" to 20")
- Pressure Grade
- PN10 to PN420 (ANSI Class 150 to 1500)
- Connection Types
- Flange (FF)Flange (RF)Flange (MF)Flange (RTJ)SWBW
Performance Metrics
Key Performance Indicators
500 DN
Max Size
420 PN
Max Pressure
Compatibility & Usage
Applicable Media
LiquidGasSteam
Typical Industries
- Chemical Industry
- Power Plant
- Petrochemical
- Paper Making
- Steel Plant
- Shipping
- Environmental Protection
- Fire Extinguish System
