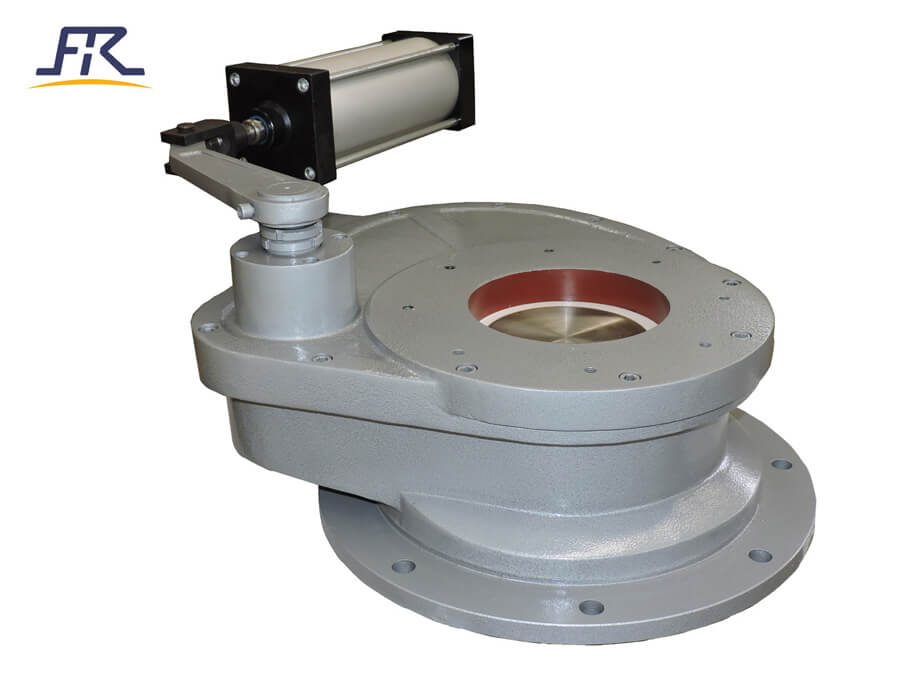

Pneumatic Ceramic Rotary Ash Gate Valve
This pneumatic ceramic rotary ash gate valve is designed for pressurized and vacuum systems, ideal for pneumatic conveying, discharge, and venting. The valve features ceramic sealing faces that are ground and polished to ensure reliable sealing.
Technical Specifications
Product Overview
Industrial Ceramic Rotary Ash Gate Valve
This pneumatic ceramic rotary ash gate valve is engineered for demanding industrial environments, featuring toughened engineering ceramics for superior abrasion resistance. The rotary disc design prevents ash deposition during operation, while the slant-structure outlet ensures smooth material flow and prevents accumulation. Designed for reliability, the system includes a floating spring-loaded connection to compensate for thermal expansion and sealing surface wear, ensuring a long service life.
Technical Specifications
Operating Temperature
0 °C
Min
200 °C
Max
- Size Range
- NPS4~NPS12, DN100~DN300
- Pressure Range
- Class 150PN6PN10
- Connection Type
- Flange
- Operating Mode
- Pneumatic
Design & Materials
Compliance Standards
| Category | Standard |
|---|---|
| Pressure Test | GB/T13927, API598 |
| Face to Face | GB/T12221, API609 |
| Valve Body | GB/T12224, ASME B16.34 |
- Sealing Material
- Toughened engineering ceramics
Application
Industry Applications
- Steel plants
- Cereals transport systems
- Cement transport systems
- EP systems in coal-fired power plants
Logistics
- Model
- FRZ6431
- Delivery Time
- 30 days
