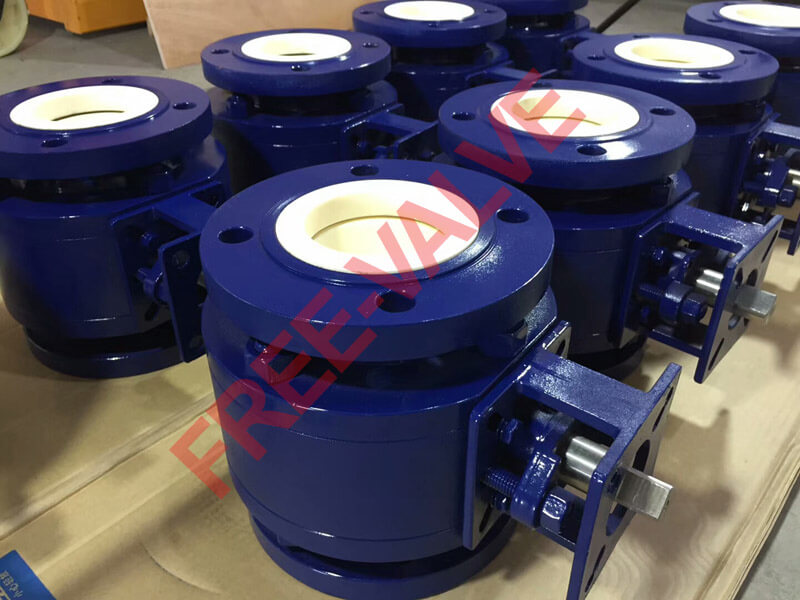

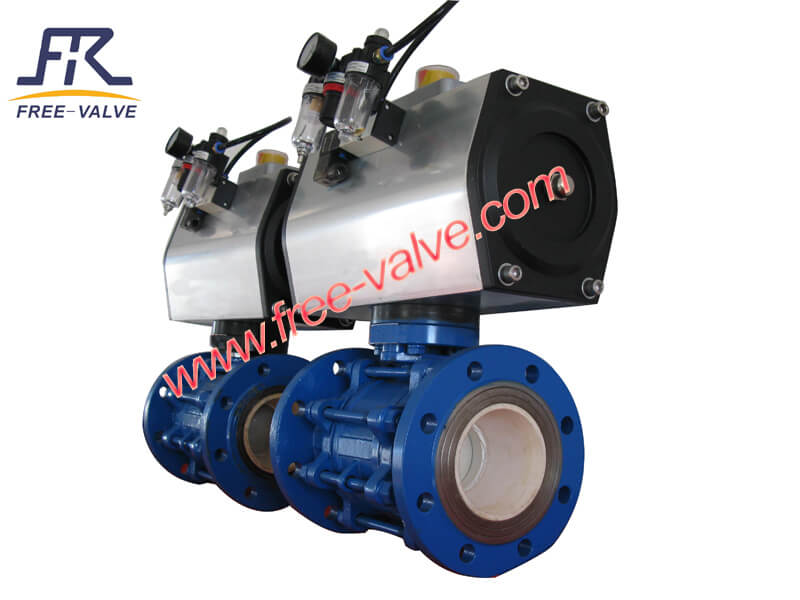

Pneumatic Ceramic Lined Floating Ball Valve
This pneumatic ceramic lined floating ball valve features engineering ceramic internal parts for exceptional wear resistance. It is widely used for on/off and throttling control in corrosive media with abrasive solids.
Technical Specifications
Product Overview
High-Performance Ceramic Lined Solution
Engineered with advanced ceramics, this floating ball valve provides exceptional wear resistance for demanding industrial environments. It is specifically designed for throttling control and open/close functions in systems handling corrosive media or abrasive solids. The floating ball design ensures a tight seal against the downstream seat, while the pneumatic actuator enables reliable remote operation and precise process control.
Technical Specifications
- Size Range
- DN50 to DN200 (NPS 2 to NPS 8)
- Nominal Pressure
- 1.0 MPa / Class 150
- Maximum Temperature
- 200 °C
- Connection Type
- Flange
- Flange Standards
- ASME B16.5GB/T9113
- Testing Standards
- GB/T13927API598
- Face-to-Face Standards
- GB/T12221API609
Design & Materials
Actuation Options
- Manual Lever
- Gear Box
- Pneumatic
- Electric
- Hydraulic
- Sealing Surface Material
- Engineering Ceramic
- Ceramic Hardness
- > HRC80
Applications
Suitable Media
- Silicon Powder
- Alumina Powder
- Dry Coal Powder
- Limestone Slurry
- Gypsum Slurry
- Plaster
- Fly Ash
- Mining Ore
- Coal Powder Injection
- Metallurgical Dust
- LiCoO2 Powder
