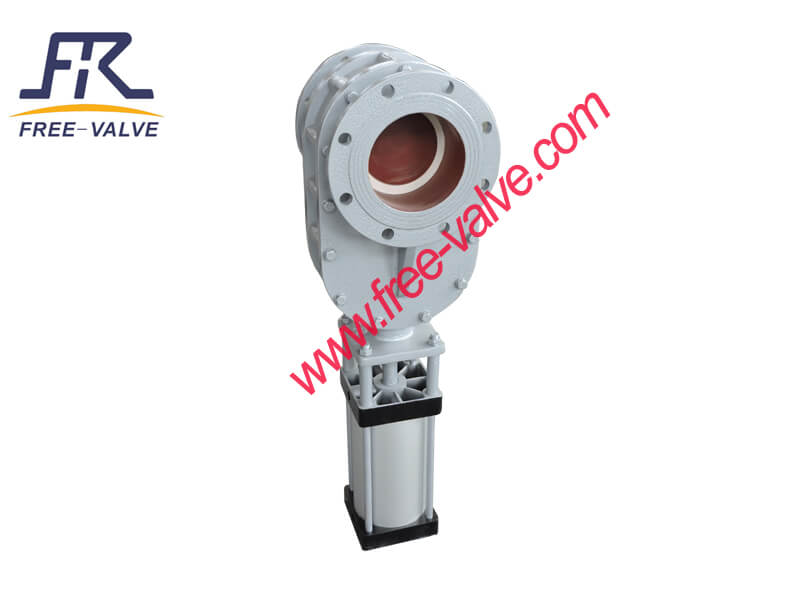

Pneumatic Ceramic Double Disc Gate Valve
This pneumatic ceramic double disc gate valve is used for feeding and dumping dry powder in transport pipelines. It utilizes toughened ceramic for shut-off and wear resistance, with a pressure self-sealing design and valve disc auto-rotation to enhance sealing and prolong service life.
Technical Specifications
Product Overview
High-Performance Ceramic Gate Valve
This pneumatic ceramic double disc gate valve is engineered for the reliable handling of dry powders and abrasive materials in transport pipelines. Utilizing toughening ceramic for its sealing surfaces, the valve features a pressure self-sealing design and auto-rotating discs that significantly enhance wear resistance and longevity. Its double-disc configuration with internal spring preload ensures effective bi-directional sealing even at low pressures, preventing dust clogging and ensuring consistent performance in demanding industrial environments.
Technical Specifications
Operating Temperature
- Size Range
- NPS4–NPS12 / DN100–DN300
- Pressure Range
- Class 150PN6PN10
- Operating Type
- Pneumatic
- Sealing Material
- Engineering Ceramics
Standards & Compliance
Industry Standards
| Category | Standard |
|---|---|
| Pressure Test | GB/T13927, API598 |
| Face to Face | GB/T12221, API609 |
| Flange Standards | ASME B16.5, GB/T9113 |
Applications
Suitable Industries
Logistics
- Delivery Time
- 30 days
- Country of Origin
- China
