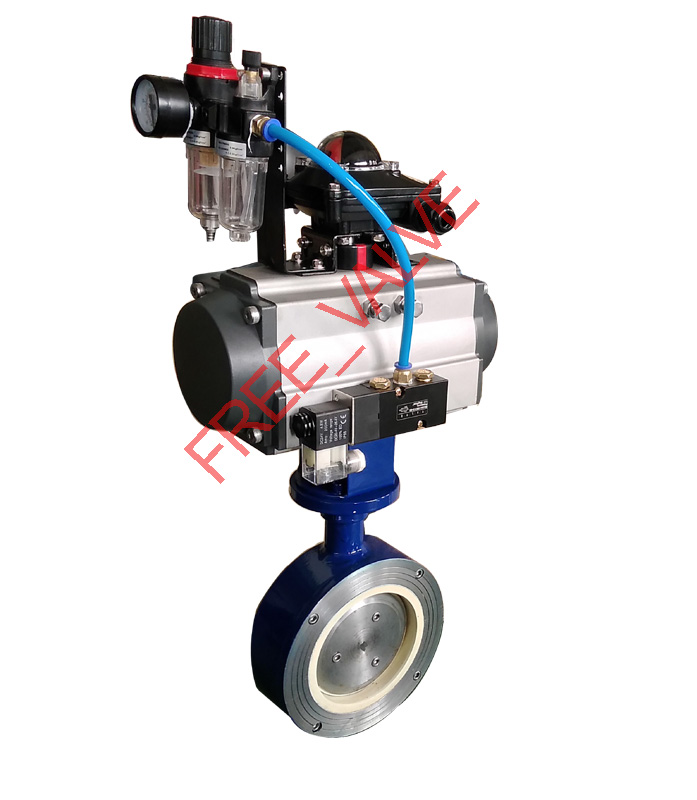

Pneumatic Ceramic Disc Butterfly Valve
This pneumatic butterfly valve features a ceramic disc and seat for superior abrasion and chemical resistance. Its wafer type design allows for easy installation and is suitable for a variety of industrial processes.
Technical Specifications
Overview
High-Performance Ceramic Butterfly Valve
Engineered for the harshest control environments, this pneumatic ceramic butterfly valve offers superior resistance to cavitation and abrasive media. Utilizing high-performance ceramic materials for the disc and seat, it delivers 6-8 times the hardness of stainless steel, ensuring significantly longer service life and reduced maintenance costs. The wafer-style design facilitates easy installation, while the pneumatic actuator enables seamless remote or local control for automated industrial processes.
Performance Metrics
Key Performance Metrics
200 °C
Max Temperature
25 PN
Max Pressure
Technical Specifications
Technical Data
| Parameter | Specification |
|---|---|
| Size Range | NPS2 - NPS12 (DN100 - DN300) |
| Pressure Range | PN6 - PN25 |
| Temperature Range | 0 - 200°C |
| Connection Type | Flange, Wafer |
| Sealing Material | Engineering Ceramics |
| Body Materials | WCB, CF8, CF8M, CF3, CF3M |
Features
Key Features
- Ceramic disc and seat materials (Alumina, Zirconia, Tungsten Carbide)
- Excellent resistance to cavitation and chemical corrosion
- Wafer type design for lightweight, easy installation
- Pneumatic operation for remote/local control
- Fail-safe capability with single-acting cylinder
- Inherent adjustable performance characteristics
Application
- Recommended Applications
- Abrasive SlurryBauxiteMining SlagCoal WashingAsh SlurryGrainQuartz SandMetallurgical Dust
Logistics
Commercial Information
| Term | Details |
|---|---|
| Price Range | 500-5000 USD/set |
| Price Terms | FOB, CIF, FCA, CFR |
| Payment Terms | TT, LC |
| Delivery Time | 30 days |
| Origin | China |
