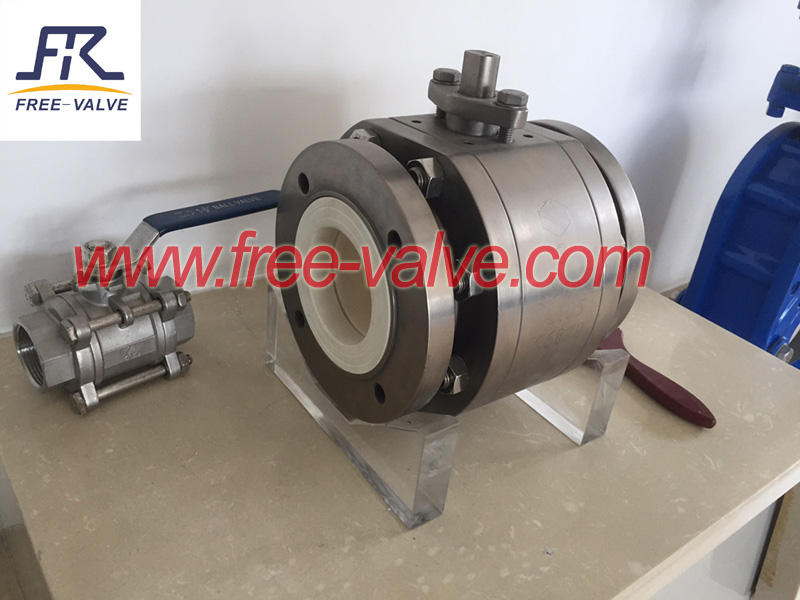

Pneumatic Ceramic Ball Valve with Flanged Connection
This ceramic ball valve is equipped with a pneumatic actuator for automated operation and a flanged connection for secure installation. Its ceramic ball and seat provide exceptional wear and corrosion resistance.
Technical Specifications
Overview
High-Performance Ceramic Ball Valve
Engineered with advanced ceramics, this pneumatic ball valve provides exceptional wear and corrosion resistance for demanding industrial environments. It is designed to handle abrasive solids and corrosive media, offering reliable open/close functions and precise throttling control. The floating ball design ensures a tight seal under differential pressure, making it an ideal solution for challenging applications in mining, power generation, and chemical processing.
Technical Specifications
- Size Range
- DN50 to DN200 (NPS2 to NPS8)
- Nominal Pressure
- 1.0 MPa / Class 150
- Max Working Temperature
- 200 °C
- Connection Type
- Flanged
- Flange Standards
- ASME B16.5GB/T9113
- Operating Types
- ManualPneumaticElectric
Material & Design
Key Design Features
- Floating ball design for tight sealing
- Superior wear resistance
- Excellent chemical inertness
- Customizable V-type control option
- Sealing Surface Material
- Engineering Ceramic
- Ceramic Hardness
- > HRC80
Compliance & Standards
- Testing Standards
- GB/T13927API598
- Face to Face Standards
- GB/T12221API609
Applications
Suitable Media
- Silicon Powder
- Alumina Powder
- Dry Coal Powder
- Limestone Slurry
- Gypsum Slurry
- Plaster
- Fly Ash
- Mining Ore
- Coal Powder Injection
- Metallurgical Dust
- FGD Systems
- LiCoO2 Powder
