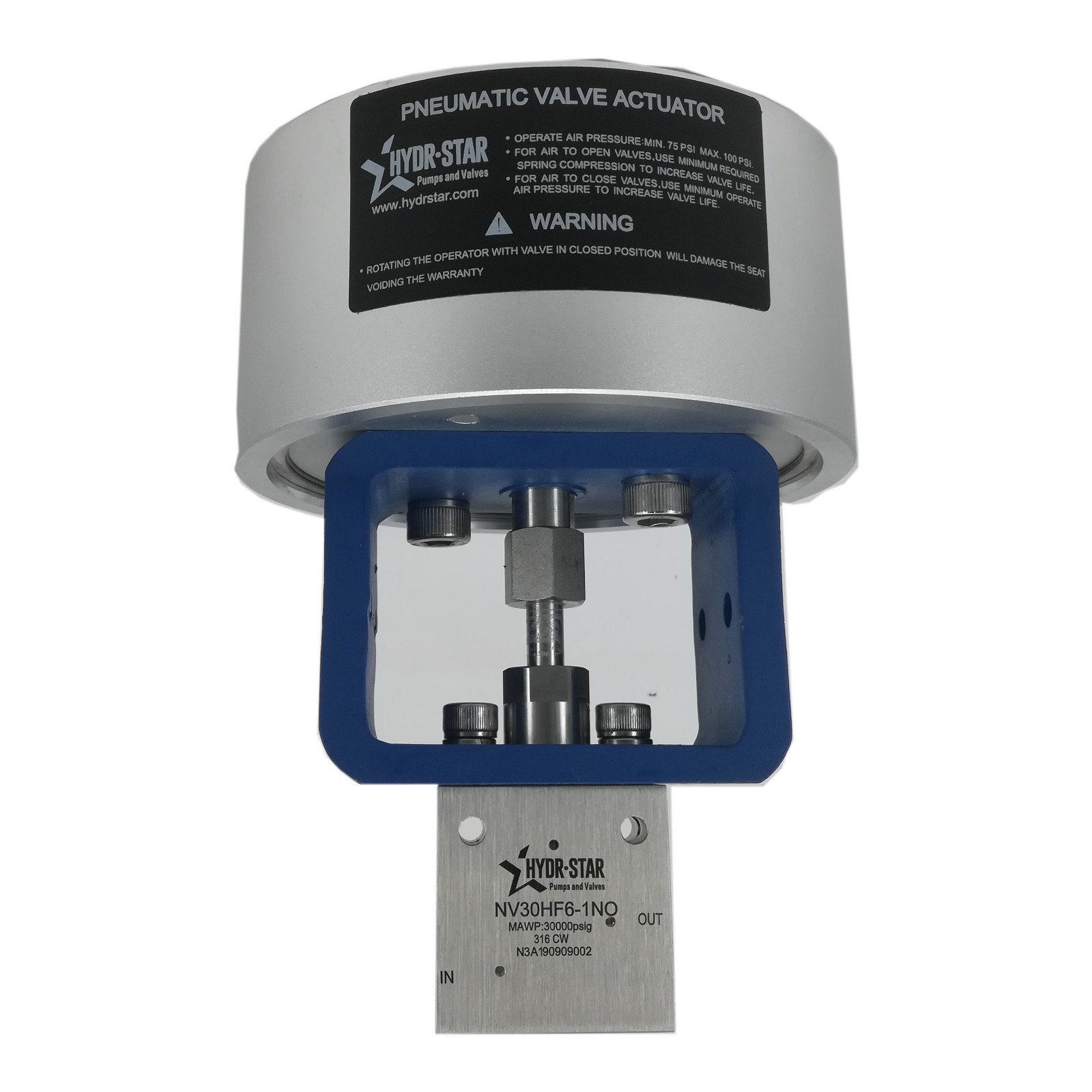

Pneumatic and Hydraulic Actuated Valve
This valve features a 316 cold-work stainless steel body, offering excellent corrosion resistance and high tensile strength. It is available with pneumatic or hydraulic pilot options and multiple pressure levels.
Technical Specifications
Overview
High-Performance Actuated Valves
These pneumatic and hydraulic actuated valves are engineered for demanding industrial environments, featuring a 316 cold-work stainless steel body for superior corrosion resistance and high tensile strength. Designed for versatility, they support both normally open and normally closed configurations across six distinct pressure levels up to 60,000 psig. The modular design allows for quick removal of the valve from the actuator, ensuring easy maintenance and reduced operational costs.
Technical Performance
Operating Configurations
Normally Open (NO)Normally Closed (NC)Air to OpenAir to Close
- Available Pressure Levels
- 6000 psig10000 psig15000 psig20000 psig30000 psig60000 psig
- Standard Working Temperature
- -40°F to 250°F (-40℃ to 120℃)
Material Specifications
Actuator Materials
- 316 Stainless Steel (IFV Series)
- Aluminium Alloy (NV & NR Series)
- Valve Body Material
- 316 Cold-Work Stainless Steel
Installation & Maintenance
Mounting Options
- Panel Mounting
- Bracket Installation (Integral through-holes)
Maintenance Benefits
- Quick-remove valve design
- Low maintenance costs
- Easy repair access
Actuation System
Pilot Control Types
- Pneumatic Pilot
- Hydraulic Pilot
- Air Pilot
Operating Air Pressure
75 PSI
Min Operating Pressure
100 PSI
Max Operating Pressure

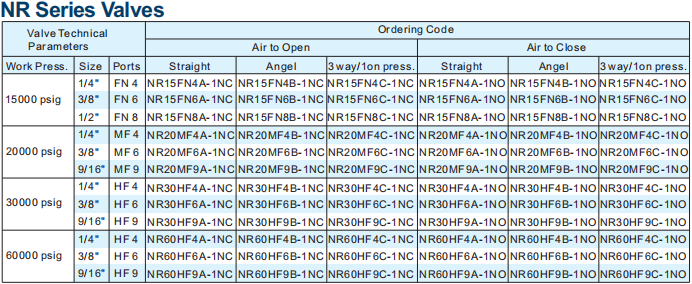

Series Specifications

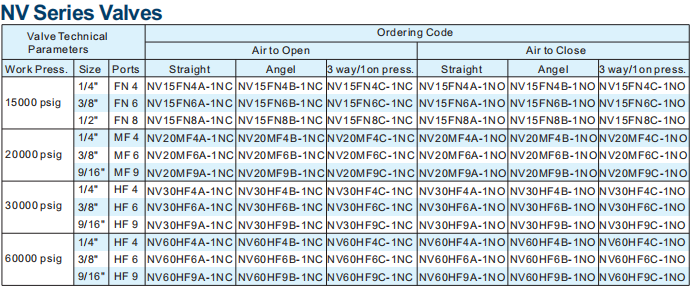

NV Series Technical Parameters
| Working Pressure (psig) | Connection Sizes | Port Types |
|---|---|---|
| 15,000 | 1/4", 3/8", 1/2" | FN4, FN6, FN8 |
| 20,000 | 1/4", 3/8", 9/16" | MF4, MF6, MF9 |
| 30,000 | 1/4", 3/8", 9/16" | HF4, HF6, HF9 |
| 60,000 | 1/4", 3/8", 9/16" | HF4, HF6, HF9 |
