Pneumatic Air Filter
This pneumatic air filter is designed for compressed air systems. It features a modular design for easy installation, dismantling, and maintenance.
Technical Specifications
Overview

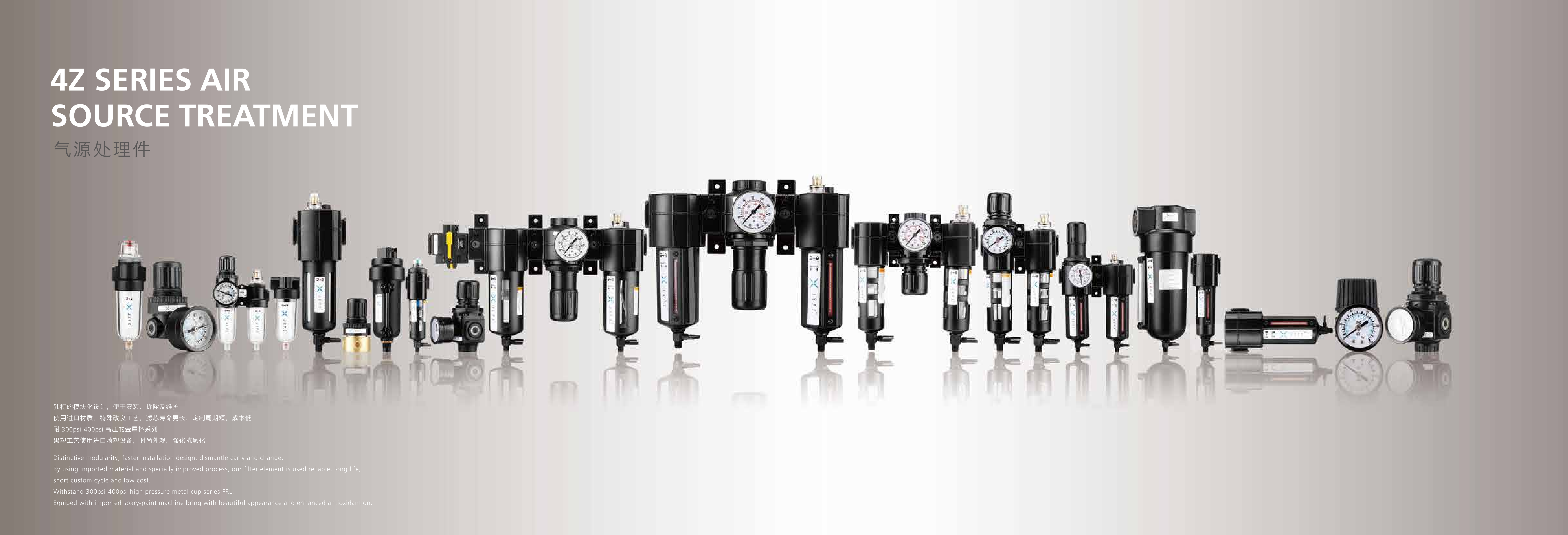

4Z Series Air Source Treatment Units
The 4Z Series Air Source Treatment Units are engineered for high-performance pneumatic systems, featuring a modular design that simplifies installation, dismantling, and maintenance. These filters utilize imported materials and advanced manufacturing processes to ensure a reliable, long service life with enhanced antioxidant properties. Designed to handle high pressures, these units provide efficient air filtration for diverse industrial applications.
Performance Specifications
- Filter Precision
- 5µm (40µm optional)
- Max Pressure (Metal Cup)
- 2.5 MPa
- Max Pressure (Polycarbonate Cup)
- 1.5 MPa
- Temperature Range (Metal)
- -5 to 80°C
- Temperature Range (Polycarbonate)
- -5 to 50°C
- Max Flow Rate
- 750 cfm
Construction & Materials
Available Port Sizes
- NPT1/8
- NPT1/4
- NPT3/8
- NPT1/2
- NPT3/4
- NPT1
- NPT1-1/2
- NPT2
- Container Materials
- Zinc AlloyAluminum Die-castingAluminum CastingPolycarbonate
- Maintenance Recommendation
- Clean or change the filter element every 1-2 months to ensure effective filtration.
Key Features
Product Highlights
Modular DesignAntioxidant CoatingHigh Pressure ResistanceCustomizable Thread Types (G, NPT, PT)
