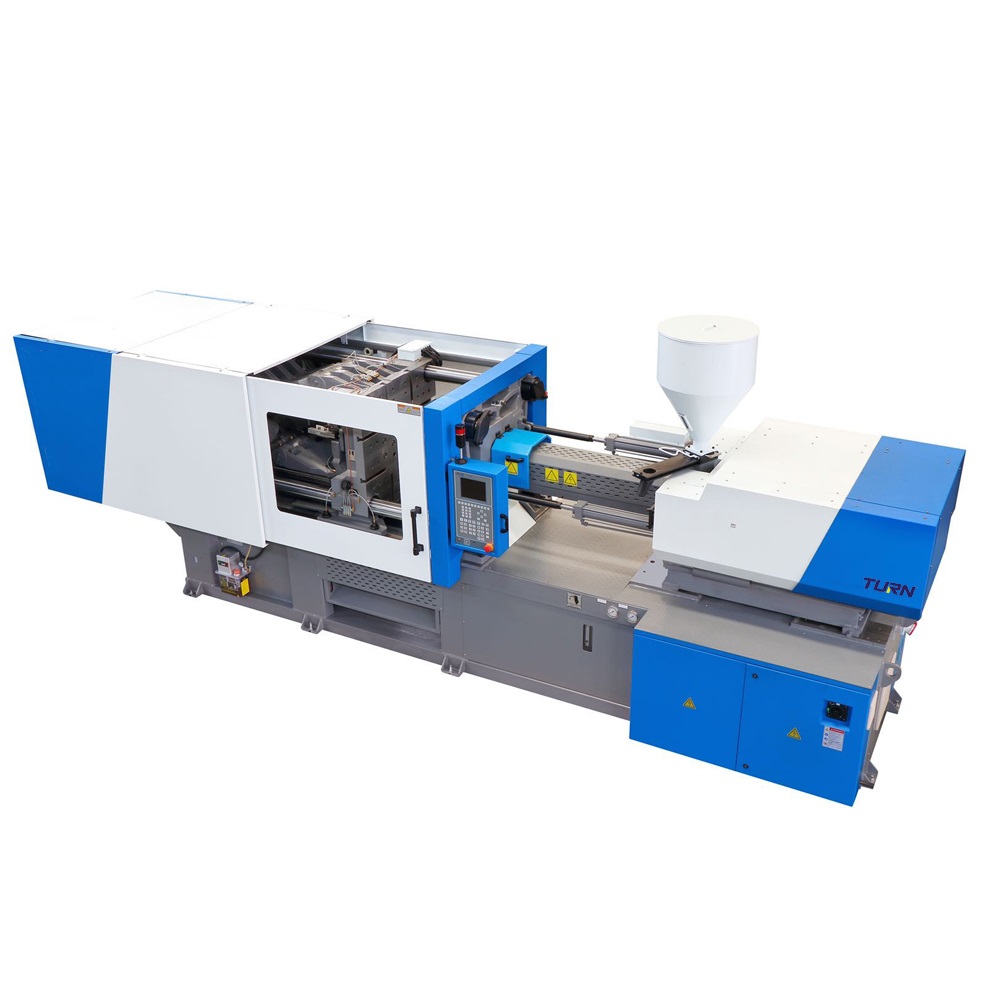

Plastic Injection Molding Machine
This plastic injection molding machine is designed for efficient and precise manufacturing. It features a robust clamping unit and an advanced injection unit for consistent material delivery.
Technical Specifications
Overview
High-Precision Injection Molding Series
This European-style plastic injection molding machine is engineered for high-performance production, featuring advanced servo motor technology and robust hydraulic systems. Designed for precision, the machine is ideal for manufacturing automotive components and complex industrial plastic parts with consistent quality. Its modular construction and energy-efficient design provide a scalable, cost-effective solution for demanding production environments.
Key Metrics
Performance Highlights
15,000 kN
Max Clamping Force
14,074 cm³
Max Shot Volume
87 tons
Max Machine Weight
Technical Specifications

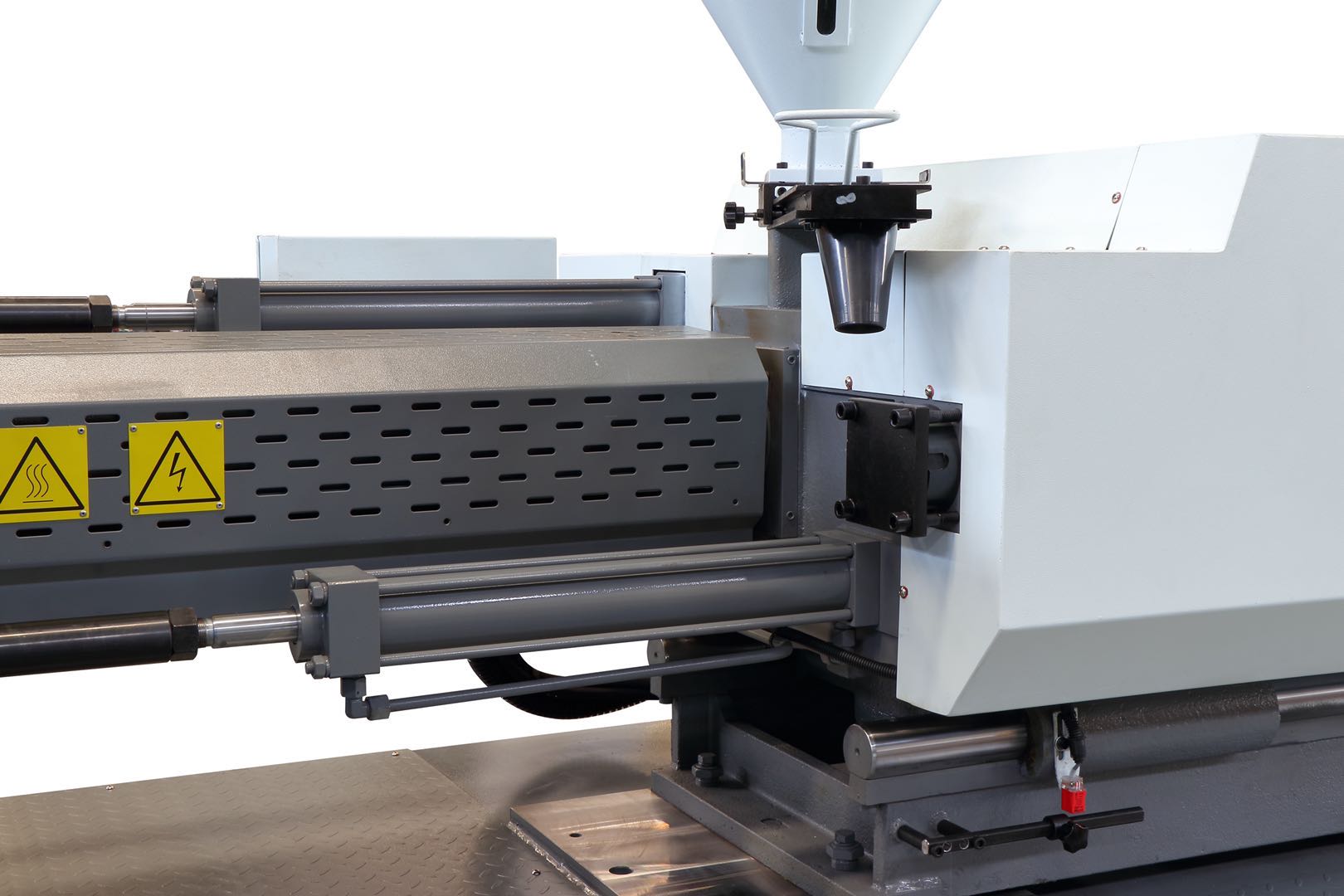

Injection Unit Specifications
| Parameter | K1300-SA Range | K1500-SA Range |
|---|---|---|
| Screw Diameter (mm) | 120 - 150 | 130 - 160 |
| Injection Pressure (Bar) | 1232 - 1925 | 1293 - 1959 |
| Plasticizing Capacity (g/s) | 135 - 233 | 156 - 246 |

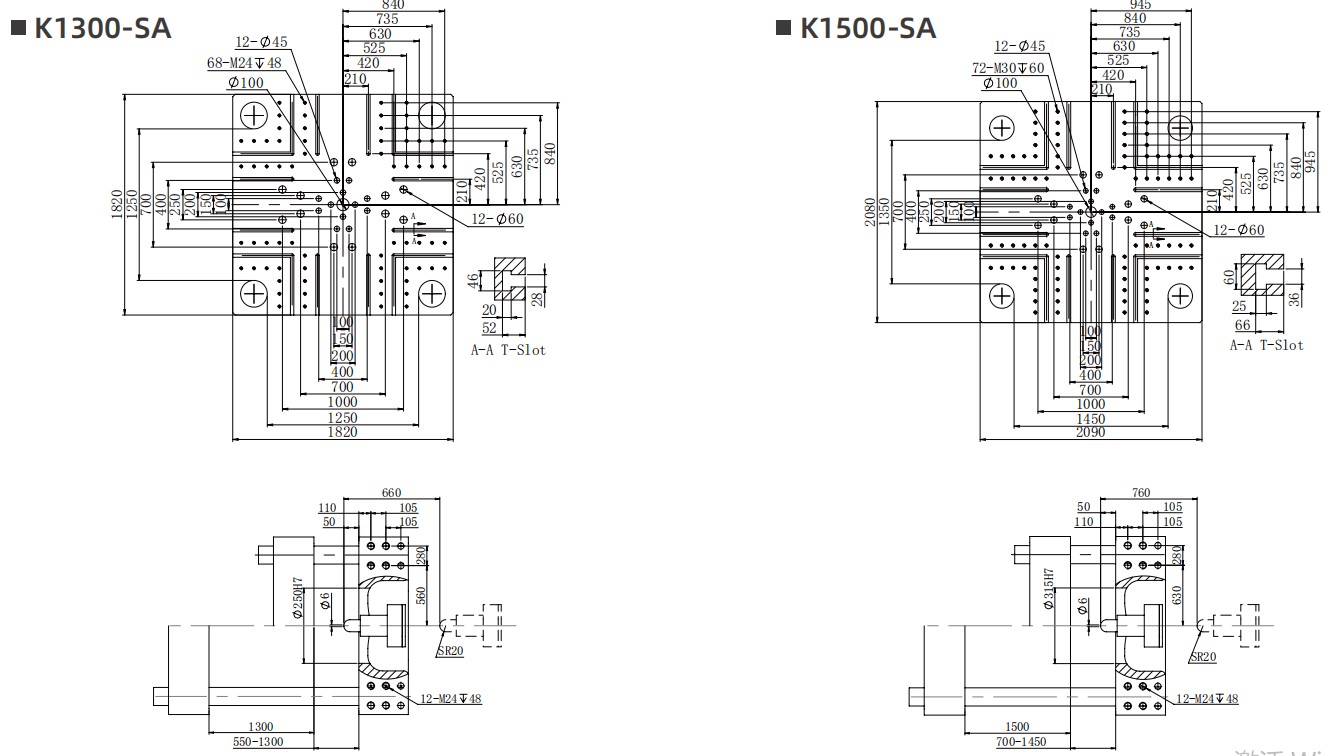

Clamping Unit Details
- Tie bar spacing: 1250x1250mm (K1300) to 1450x1350mm (K1500)
- Opening stroke: 1300mm - 1500mm
- Mold height range: 550mm - 1450mm
- Ejector force: 220kN - 320kN
- Number of ejector pins: 25

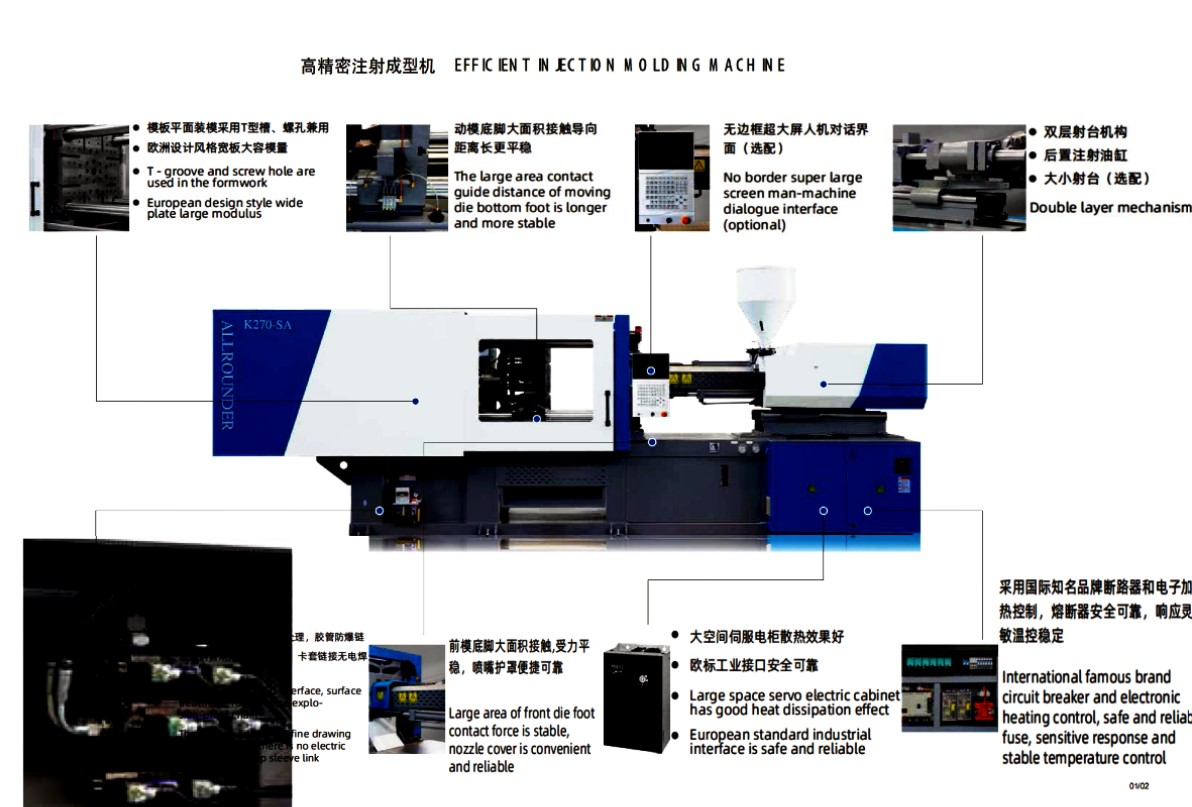

Features & Capabilities
Safety & Control
Low-Pressure Mold ProtectionDual Electrical/Mechanical SafetyPID Temperature ControlHigh-Temperature Alarm
- Core Capabilities
- Servo Motor DriveEuropean Design StandardsModular Injection UnitHigh-Rigidity ClampingEnergy EfficientPrecise Parameter Control
