Plastic Injection Molding Machine

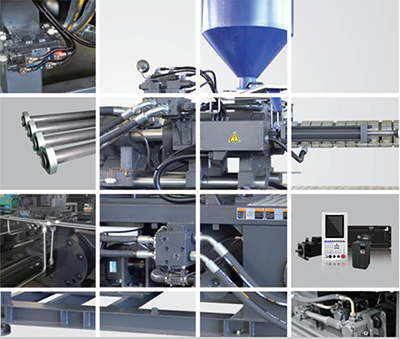

This plastic injection molding machine is designed for efficient and precise manufacturing. It features a robust hydraulic system for consistent clamping force and injection pressure.
Technical Specifications
Overview
High-Performance Injection Molding

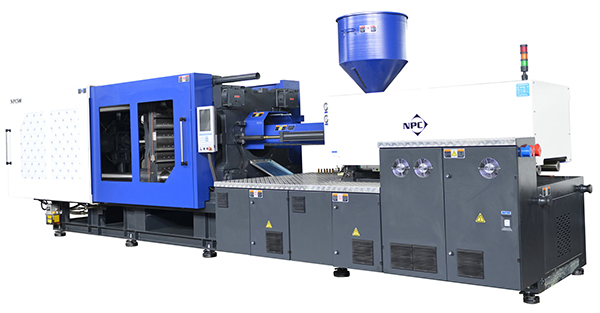

The NPC 500 is a robust plastic injection molding machine engineered for precision and efficiency in high-volume manufacturing environments. Featuring a 500-ton clamping force and a versatile injection unit, it is designed to handle a wide range of thermoplastic materials. The system integrates advanced servo-control technology with a user-friendly interface, ensuring consistent cycle times, reduced energy consumption, and superior part quality.

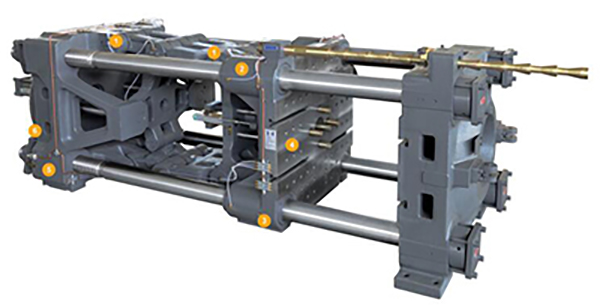

Clamping Unit
Clamping Force
5,000 kN
Clamping Force
Clamping Specifications
| Specification | Value |
|---|---|
| Open Stroke | 850 mm |
| Space Between Tie Bars | 820 x 820 mm |
| Min. Mold Height | 330 mm |
| Max. Mold Height | 910 mm |
| Ejector Stroke | 240 mm |
| Ejector Force | 150 kN |
Key Features
Diagonal Dual ToggleAuto LubricationAuto Mold AdjustmentOne-piece Casting

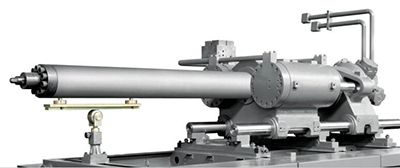

Injection Unit
Injection Performance
| Screw Diameter | Injection Pressure | Shot Volume |
|---|---|---|
| 75 mm | 224 MPa | 1948 cm³ |
| 80 mm | 197 MPa | 2216 cm³ |
| 85 mm | 174 MPa | 2485 cm³ |
| 90 mm | 156 MPa | 2785 cm³ |
- Capabilities
- Dual-cylinder Balanced SystemMulti-stage Pressure ControlHigh-torque Oil MotorScrew Speed Tester
General Specifications
Dimensions & Weight
- Machine Dimensions: 8.53 x 2.08 x 2.6 m
- Machine Weight: 20.0 t
Power & Capacity
60.5 kW
Servo Power
40.7 kW
Heating Power
890 L
Oil Tank Capacity
