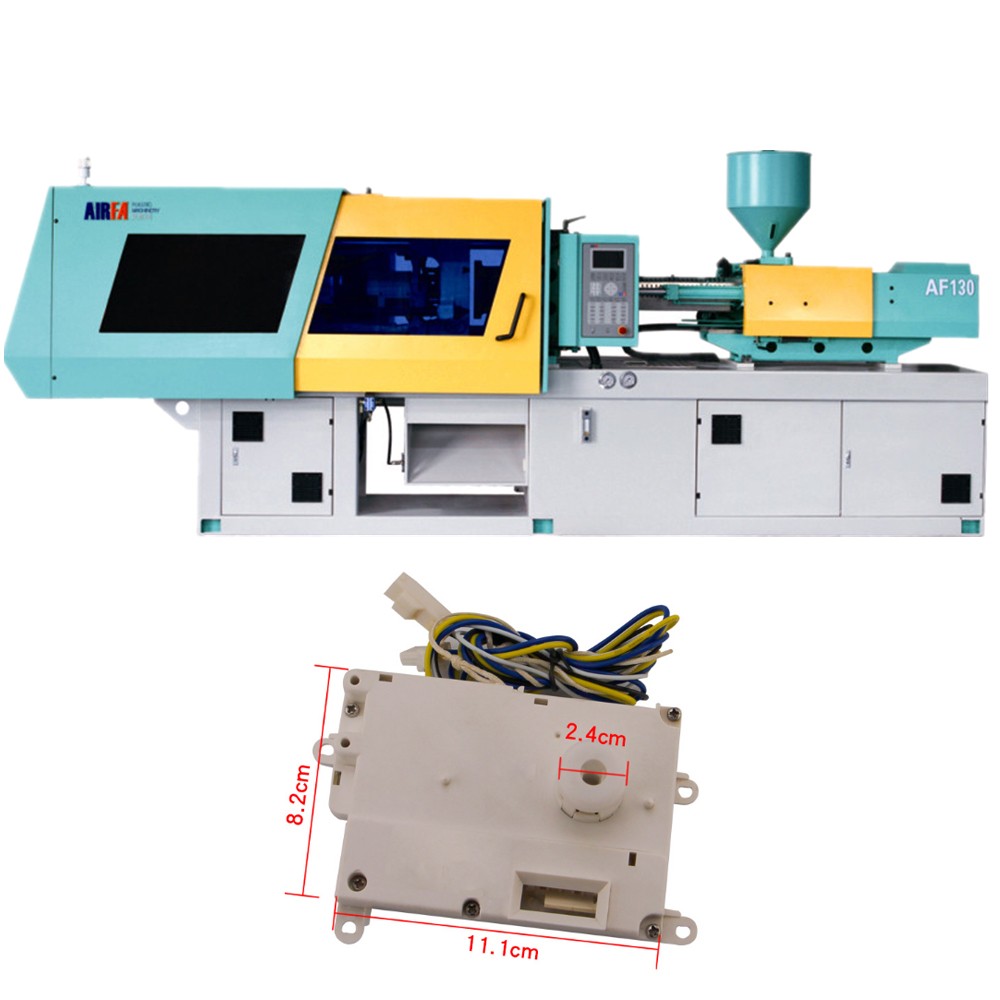

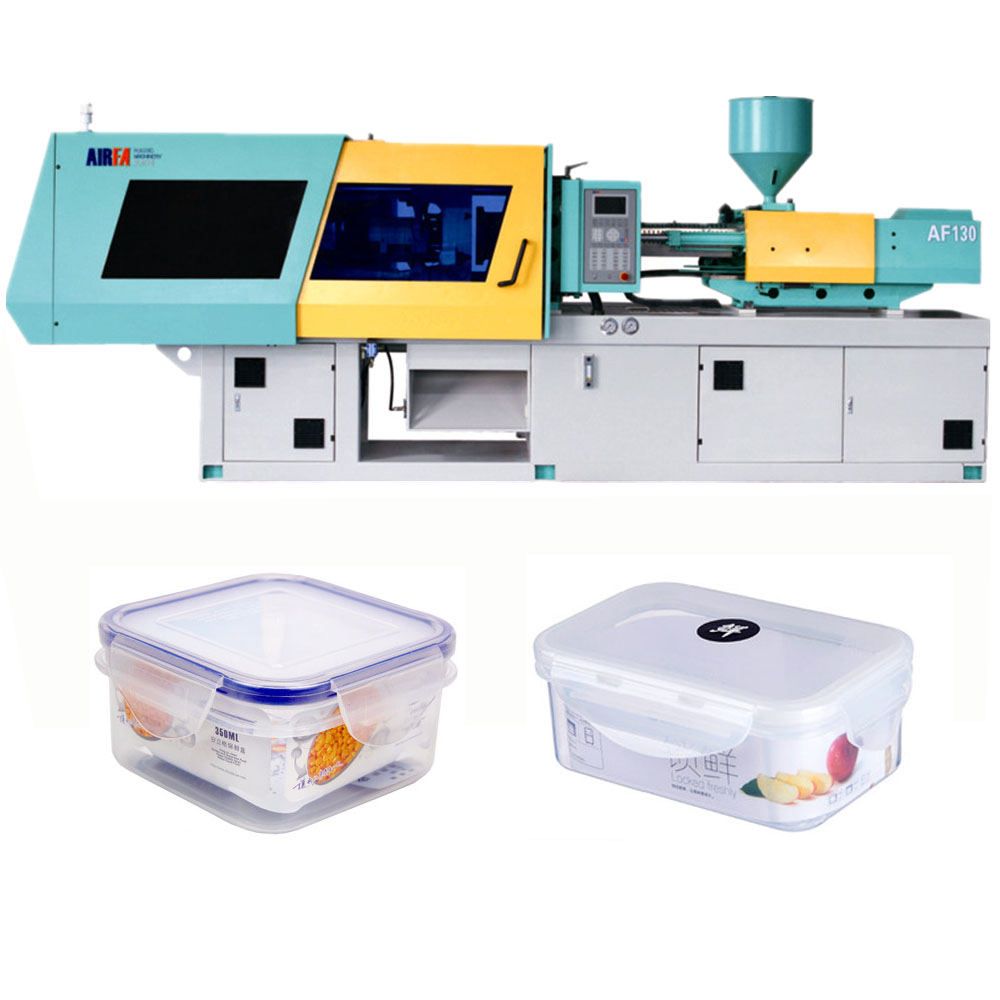

Plastic Injection Molding Machine
This injection molding machine is designed for producing plastic parts with precision and efficiency. It offers precise control over injection parameters, ensuring consistent part quality and easy customization.
Technical Specifications
Overview
High-Performance Injection Molding Solution
This industrial-grade injection molding machine is engineered for precision, consistency, and energy efficiency across a wide range of plastic materials including engineering plastics. Featuring a modular, robust architecture, it integrates advanced hydraulic and electronic control systems to ensure repeatable quality and high throughput. The unit is optimized for diverse sectors such as automotive, consumer goods, and electronics, offering reliable performance with simplified maintenance requirements.

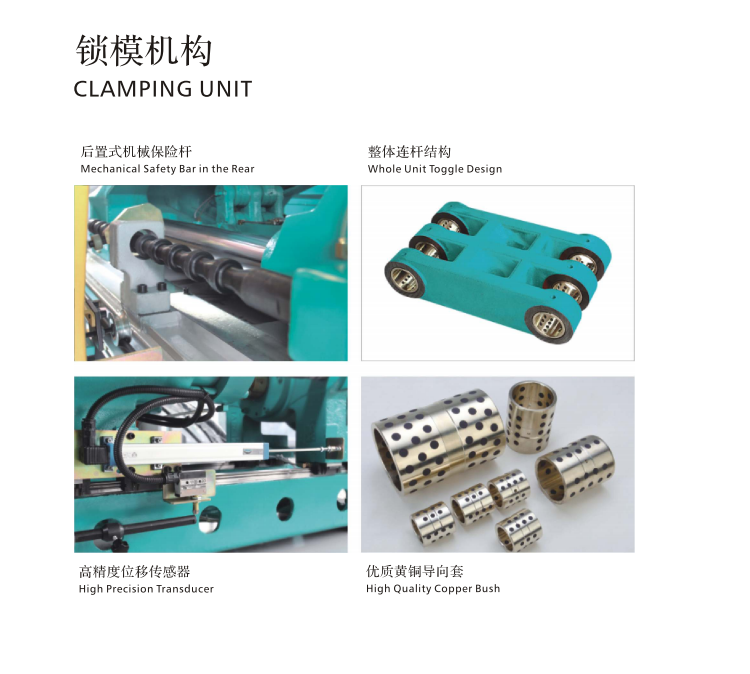

Clamping System
- Clamping Unit Design
- Mechanical Safety BarWhole Unit Toggle DesignHigh-Precision TransducerCopper Bushings

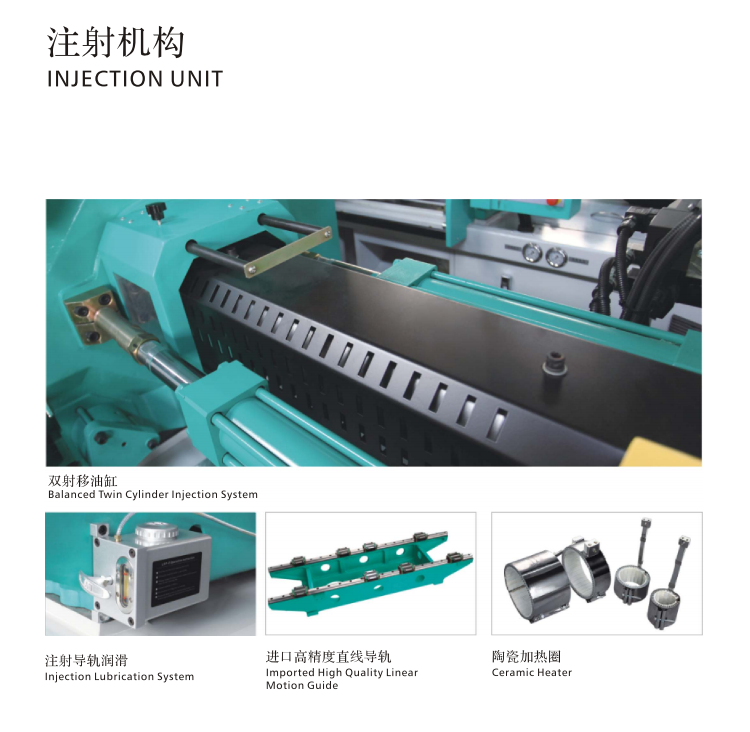

Injection System
Injection Technology
- Balanced Twin Cylinder Injection System
- Automatic Injection Lubrication System
- Linear Motion Guides
- Ceramic Heater Temperature Control

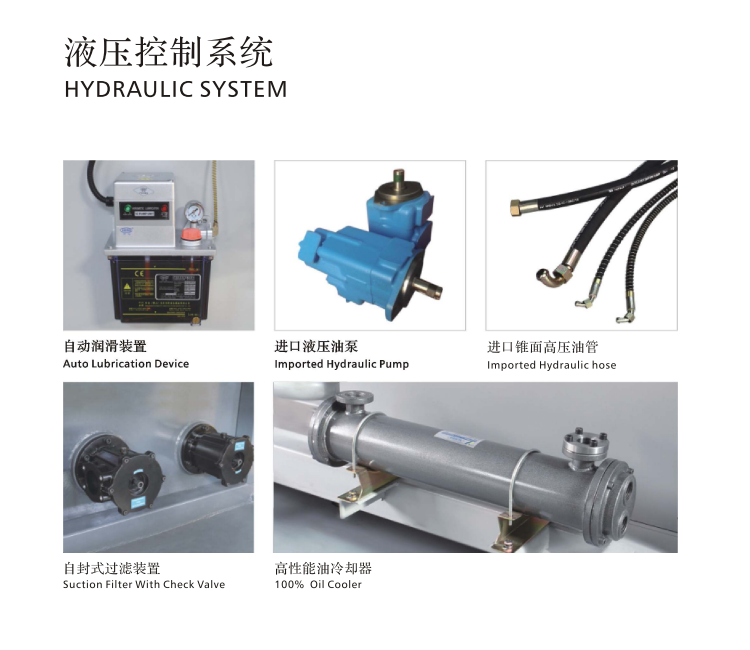

Hydraulic System
Hydraulic System Highlights
- Auto Lubrication Device
- Imported Hydraulic Pump
- Imported Hydraulic Hoses
- Suction Filter with Check Valve
- 100% Oil Cooler

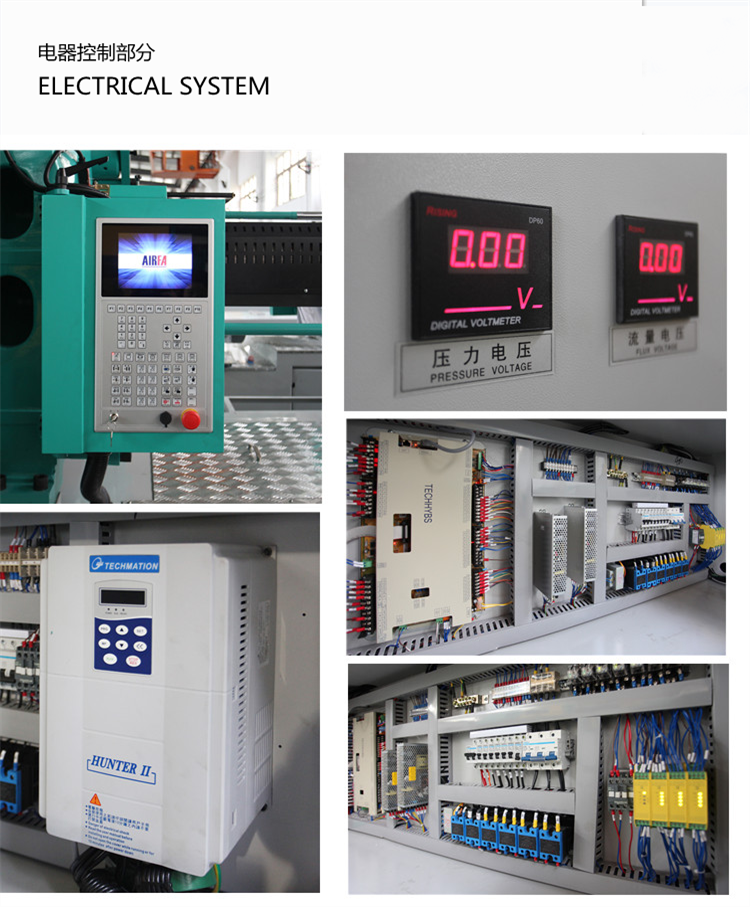

Electrical System
Control System Specifications
- Digital Pressure and Flow Voltmeter
- Advanced Inverter Control
- Integrated Control Cabinet
- User-friendly Interface
Performance Metrics
Key Performance Indicators
130 AF
Model Series
350 ml
Shot Capacity
