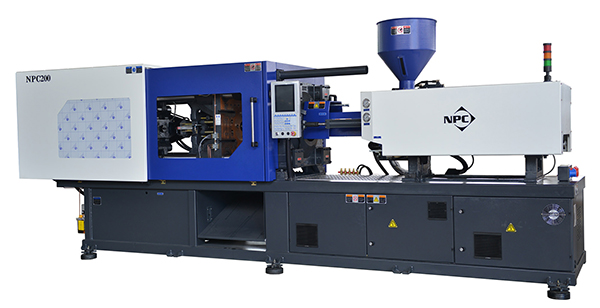

Plastic Injection Molding Machine
This plastic injection molding machine is designed for efficient and precise manufacturing. It features a robust construction and advanced control system for consistent operation.
Technical Specifications
Overview
High-Precision Injection Molding
The NPC 200 is a high-performance plastic injection molding machine engineered for efficient, precise manufacturing. It features a robust clamping system, advanced hydraulic controls, and an optimized injection unit designed to ensure consistent part quality and high productivity. With its user-friendly interface and energy-saving servo technology, this machine is an ideal solution for diverse applications in the plastic and rubber industries.

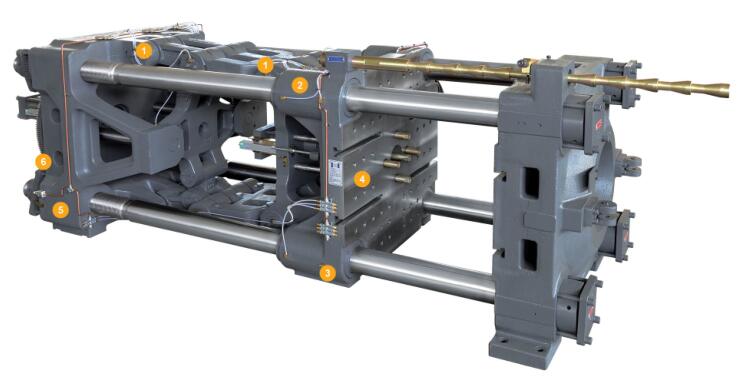

Clamping Unit
- Clamping Force
- 2000 kN
- Space between tie bars (WxH)
- 525x525 mm
- Mould Height Range
- 200 - 530 mm
- Key Clamping Features
- Diagonal dual toggleAutomatic lubricationAutomatic mould adjustmentTriple interlocking protection

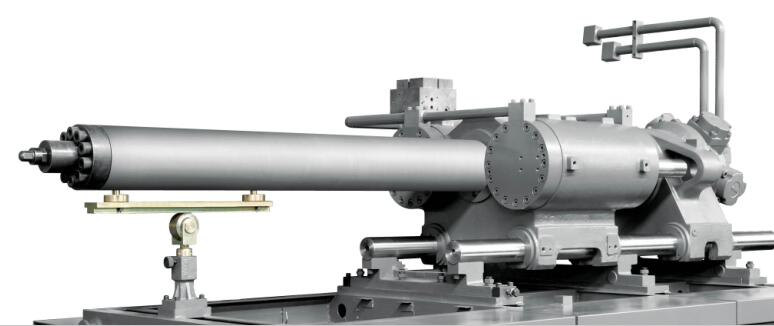

Injection Unit
Injection Unit Specifications
| Metric | Screw A | Screw B | Screw C |
|---|---|---|---|
| Screw Diameter (mm) | 45 | 50 | 55 |
| Shot Volume (cm³) | 397 | 490 | 593 |
| Injection Weight (g) | 361 | 446 | 540 |
| Injection Pressure (MPa) | 239 | 194 | 160 |
Injection System Features
- Dual-cylinder balanced injection system
- High-torque oil motor drive
- Screw draw-back anti-drooling device
- Computer PID hopper temperature control

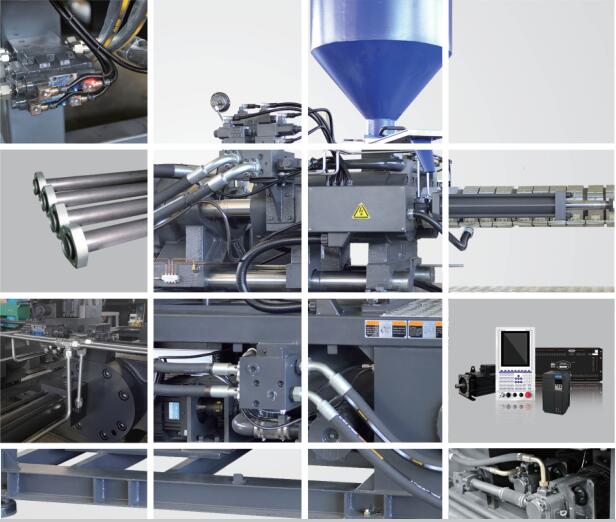

Hydraulic & Power
Power & Capacity
27.8 kW
Servo Power
14.9 kW
Heating Power
206 L
Oil Tank Capacity
Hydraulic System Highlights
Proportional multi-pump controlEnergy-saving servo systemFlaring type seamless steel pipesImported hydraulic components
General Specifications
- Dimensions (LxWxH)
- 5.73 x 1.44 x 2.21 m
- Machine Weight
- 6.8 t
