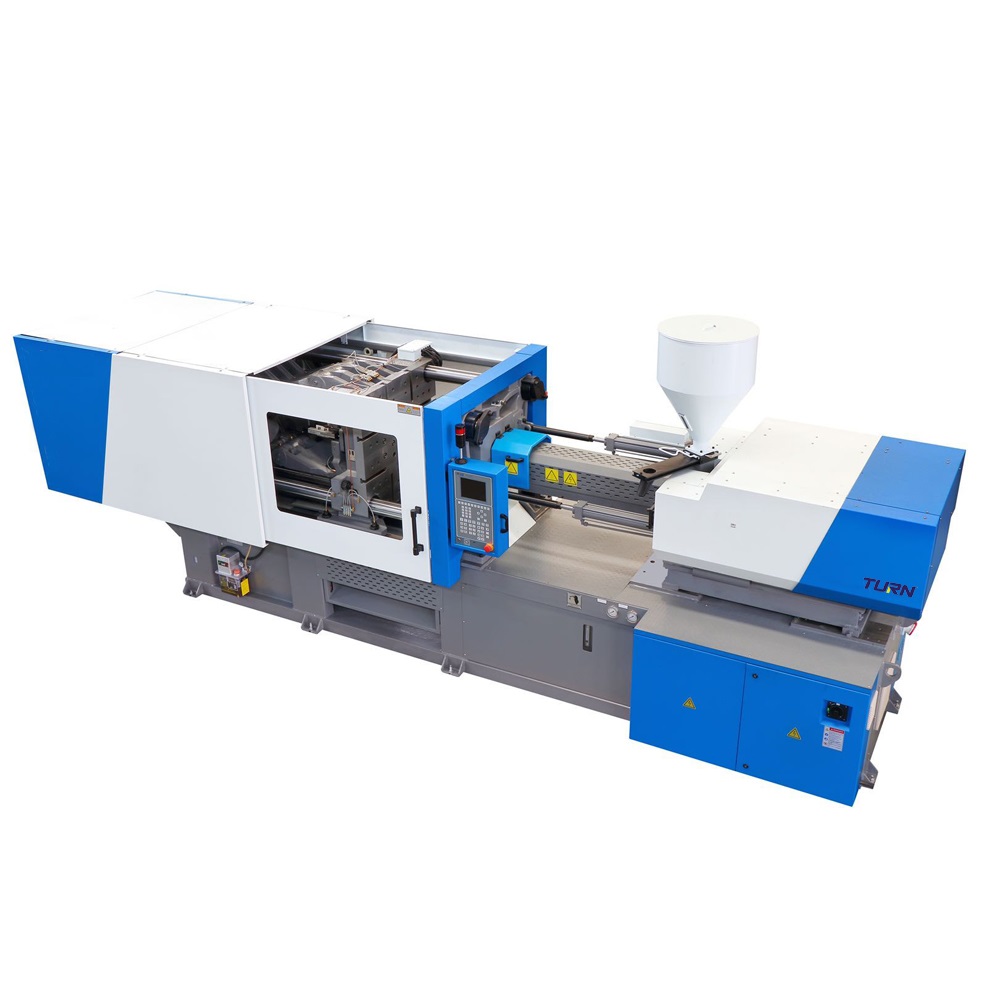

Plastic Injection Molding Machine
This European-style plastic injection molding machine is designed for a wide range of applications. It is well-suited for auto parts and other precise industrial plastic parts production.
Technical Specifications
Overview
High-Performance Injection Molding Solution
This European-style plastic injection molding machine is engineered for precision and efficiency in high-volume industrial production. Equipped with advanced servo motor technology and high-quality electrical components, it is optimized for demanding applications such as automotive parts and precise industrial plastic components. The design emphasizes stability, energy efficiency, and consistent output quality, making it a reliable choice for professional manufacturing environments.
Technical Specifications
Clamping Force Range
1,100 kN
Min Clamping Force
18,500 kN
Max Clamping Force
Injection Unit Performance
| Parameter | Range/Value |
|---|---|
| Screw L:D Ratio | 18.3 - 24.1 |
| Injection Pressure | Up to 264.2 Bar |
| Max Screw Speed | 85 - 120 r/min |
Optional Configurations
- No-border super large screen man-machine interface
- Special screw barrel and nozzle variations
- Hydraulic multi-core pulling system
- Mechanical manipulator control interface
- Energy storage device for express injection
- Standard Features
- Servo MotorEuropean Design StylePID Temperature ControlLow-pressure Mold ProtectionAutomatic LubricationLinear Electronic Ruler Control
Quality & Standards
Certifications
ISO 9001CESGS
