Plastic Injection Molding Machine
This plastic injection molding machine is engineered for efficient and precise production. It features a robust clamping unit for secure mold closure and a high-capacity injection unit for consistent material delivery.
Technical Specifications
Overview

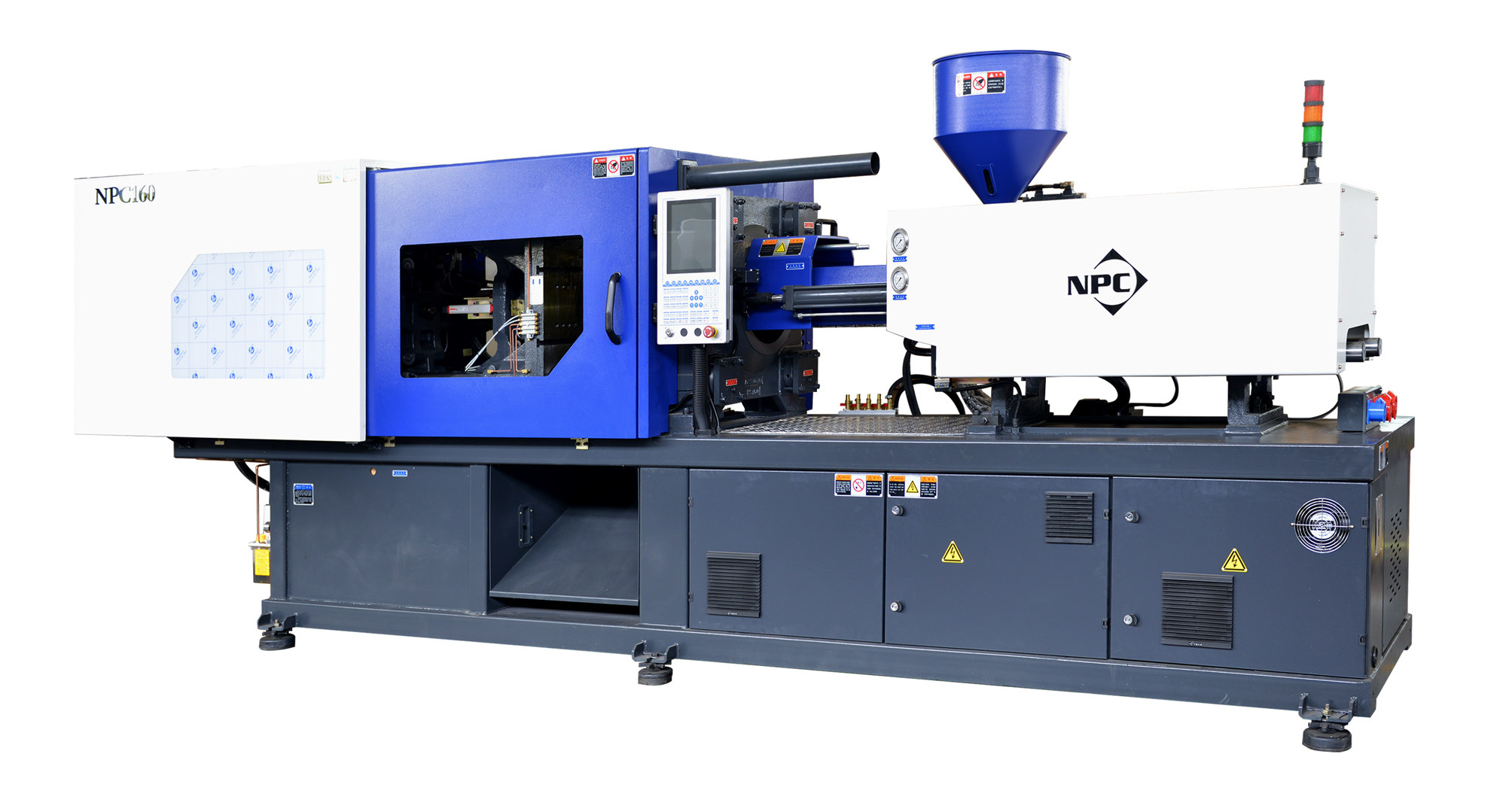

High-Performance NPC 160 Injection Molding Machine
The NPC 160 is a robust plastic injection molding machine engineered for precision and high-volume production. It features an advanced servo-driven system that ensures smooth operation, reduces energy consumption, and extends the service life of the equipment. Designed with a dual-toggle clamping mechanism and a high-torque injection unit, this machine delivers consistent part quality across a wide range of thermoplastic materials.

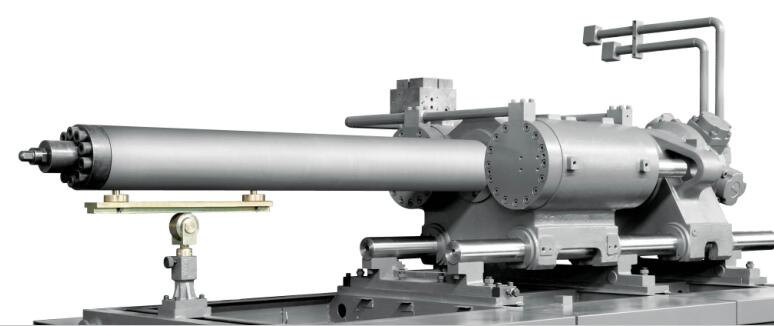

Injection Unit
Injection Performance Metrics
1,600 kN
Clamping Force
180 rpm
Max Screw Speed
213 MPa
Max Injection Pressure
Screw Configuration Options
| Specification | Type A | Type B | Type C |
|---|---|---|---|
| Screw Diameter (mm) | 42 | 45 | 50 |
| Theoretical Shot Volume (cm³) | 305 | 350 | 432 |
| Injection Weight (g) | 277 | 319 | 393 |
| Injection Rate (g/s) | 130 | 150 | 185 |

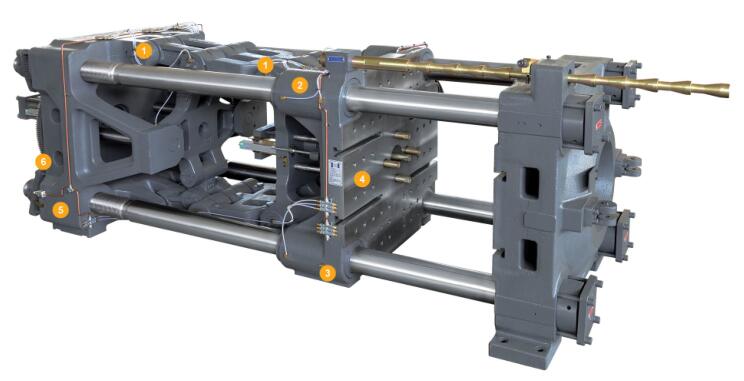

Clamping Unit
Key Clamping Features
- Diagonal type dual toggle mechanic mould clamping mechanism
- One-piece casting of the connecting rod
- Triple mechanical, hydraulic and electrical interlocking protection
- Automatic centralized lubrication system
- Automatic mould adjustment function
Clamping Dimensions
470 mm
Tie Bar Spacing (W)
470 mm
Tie Bar Spacing (H)
435 mm
Opening Stroke
General Specifications
Machine Dimensions and Weight
- Dimensions: 5.28m x 1.34m x 2.06m
- Total Weight: 5.0 Tons
- Oil Tank Capacity: 205 L
Power Ratings
23 kW
Servo Motor Power
12.5 kW
Heating Power
