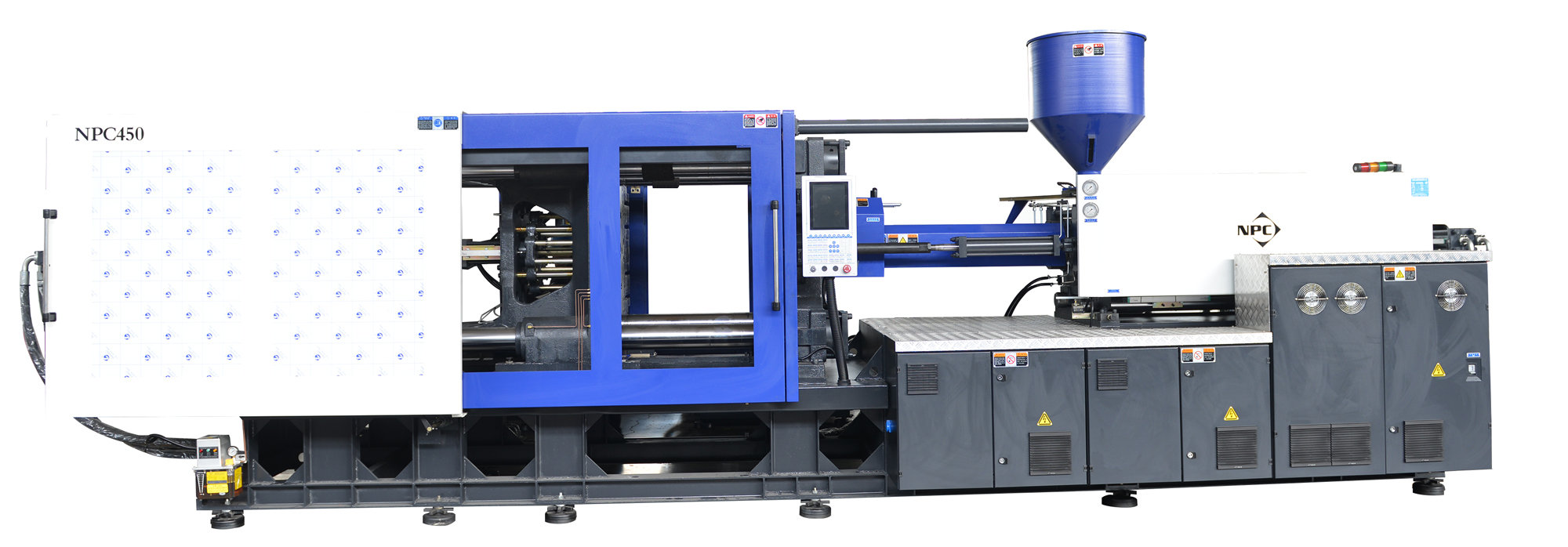

Plastic Injection Molding Machine
This plastic injection molding machine is engineered for high-precision and efficient plastic part production. It features a robust clamping system, advanced hydraulic system, and user-friendly control interface.
Technical Specifications
Overview
Precision Injection Molding Solution
This high-performance plastic injection molding machine is engineered for efficient, high-precision manufacturing of plastic parts. It features a robust clamping unit, an advanced hydraulic system, and a user-friendly control interface that supports network management and cloud connectivity. Designed for reliability and ease of maintenance, this machine is an ideal solution for producing a wide range of plastic products with consistent quality and high throughput.

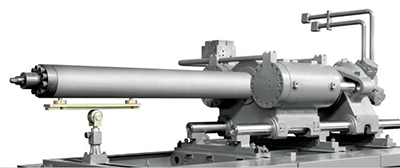

Injection Unit
Injection Performance Metrics
| Specification | A | B | C |
|---|---|---|---|
| Screw Diameter (mm) | 70 | 75 | 80 |
| Screw L/D Ratio | 23.6 | 22 | 20.6 |
| Theoretical Shot Volume (cm³) | 1500 | 1723 | 1960 |
| Injection Weight (g) | 1365 | 1567 | 1784 |
| Injection Rate (g/s) | 336 | 386 | 439 |
| Injection Pressure (MPa) | 206 | 180 | 158 |
- Injection System Features
- Dual-cylinder balanced injectionMulti-stage pressure/speed controlHigh-torque oil motorScrew draw-back anti-droolingPID hopper temperature control
Clamping Unit
Clamping Force
4,500 Kn
Clamping Force
Clamping Specifications
- Open Stroke: 770 mm
- Space Between Tie Bars: 770 x 770 mm
- Max Mold Height: 780 mm
- Min Mold Height: 250 mm
- Ejector Stroke: 200 mm
- Ejector Force: 110 Kn

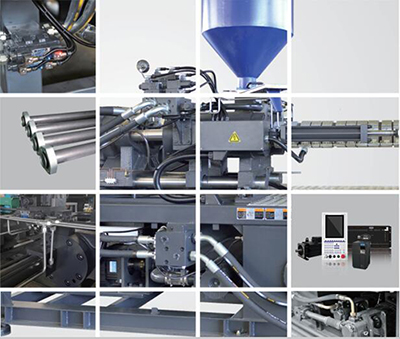

Hydraulic Unit
Hydraulic System
Servo Energy-SavingMulti-pump ControlImported Components
- Max Pump Pressure
- 17.5 MPa

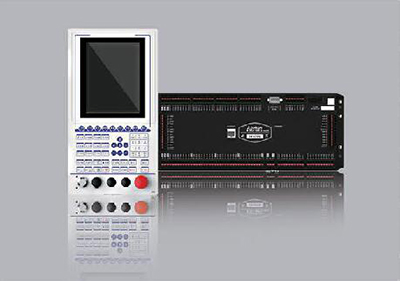

Controller
Control System Features
- Network production management
- Cloud data connectivity
- Real-time fault and data monitoring
- One-key mold opening/closing setting
General Specifications
Power Ratings
- Motor/Servo Power: 50.7 kW
- Heating Power: 35 kW
- Dimensions (LxWxH)
- 8.08 x 2.0 x 2.62 m
- Machine Weight
- 16.3 t
