Plastic Injection Molding Machine

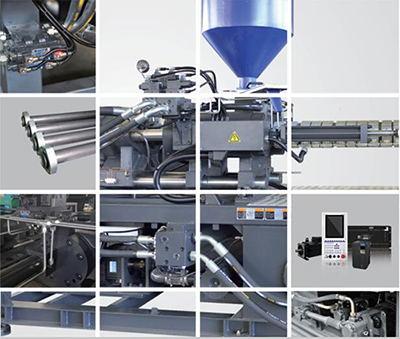

This plastic injection molding machine is designed for high-precision and efficient production of plastic parts. It features a robust hydraulic system for consistent clamping force and injection pressure.
Technical Specifications
Overview
High-Performance Injection Molding

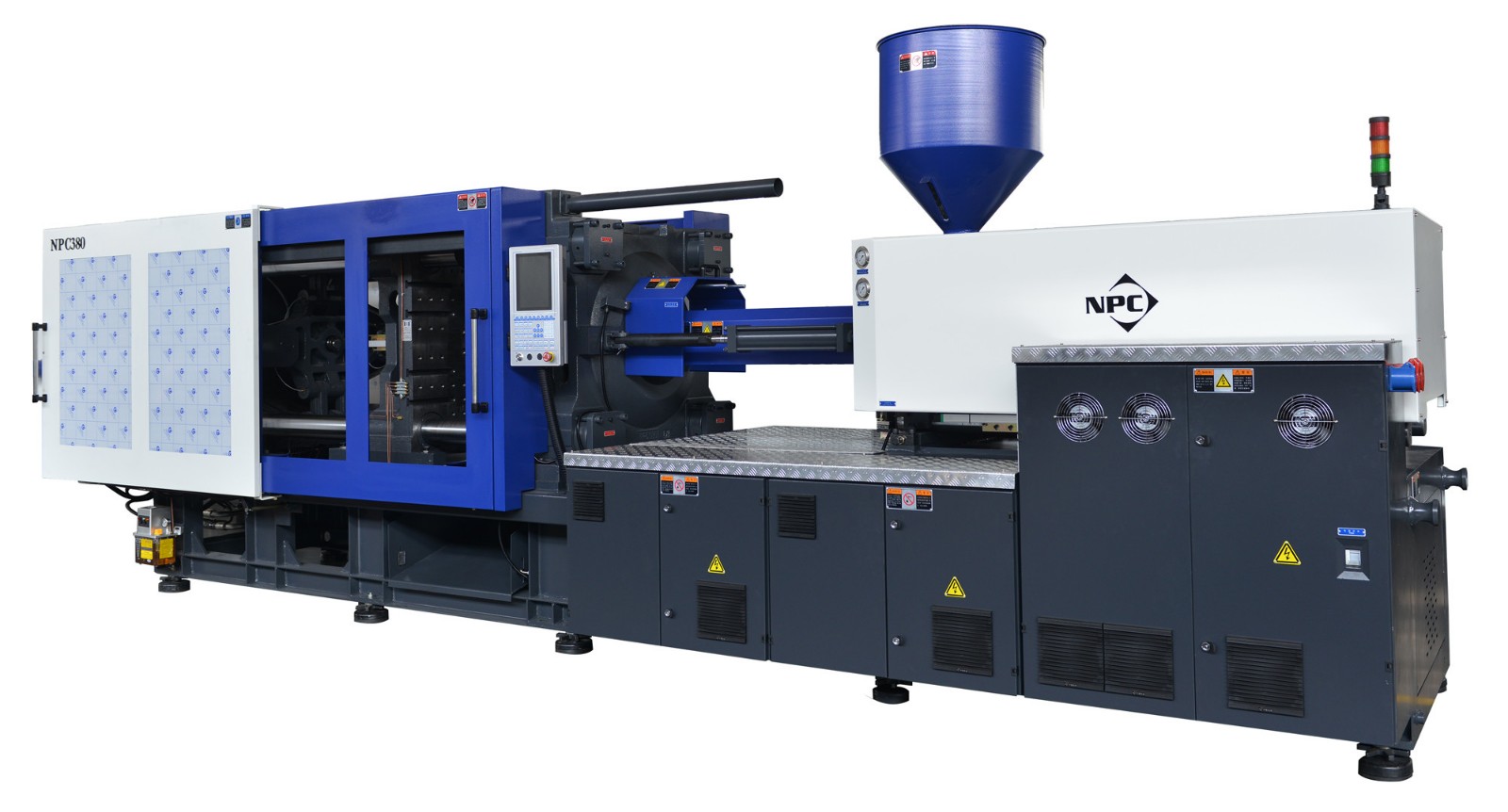

The NPC 380 is a high-performance plastic injection molding machine engineered for precision and efficiency in manufacturing plastic components. It features a robust clamping unit, an advanced hydraulic system, and a user-friendly control interface, making it ideal for high-volume production in automotive, electronics, and consumer goods industries. With its energy-saving servo control system and modular design, this machine offers consistent quality, reliable operation, and flexible configuration to meet diverse production requirements.
General Specifications
Power Requirements
50.7 kW
Motor/Servo Power
35 kW
Heating Power
- Machine Weight
- 14 t
- Dimensions (LxWxH)
- 7.83 x 1.83 x 2.58 m
- Oil Tank Cubage
- 745 L
Clamping Unit
- Clamping Force
- 3800 kN
- Open Stroke
- 720 mm
- Space Between Tie Bars
- 720 x 720 mm
- Mold Height Range
- 250 - 780 mm

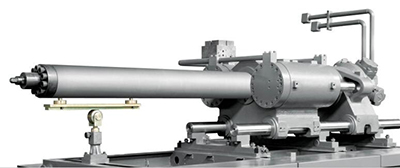

Injection Unit
Injection Performance Table
| Parameter | Screw A | Screw B | Screw C |
|---|---|---|---|
| Diameter (mm) | 70 | 75 | 80 |
| Shot Volume (cm³) | 1,500 | 1,723 | 1,960 |
| Injection Weight (g) | 1,365 | 1,567 | 1,784 |
| Injection Pressure (MPa) | 206 | 180 | 158 |
Features
- Core Technologies
- Servo Control SystemAutomatic LubricationPID Temperature ControlMulti-stage Injection ControlAnti-drooling Device
