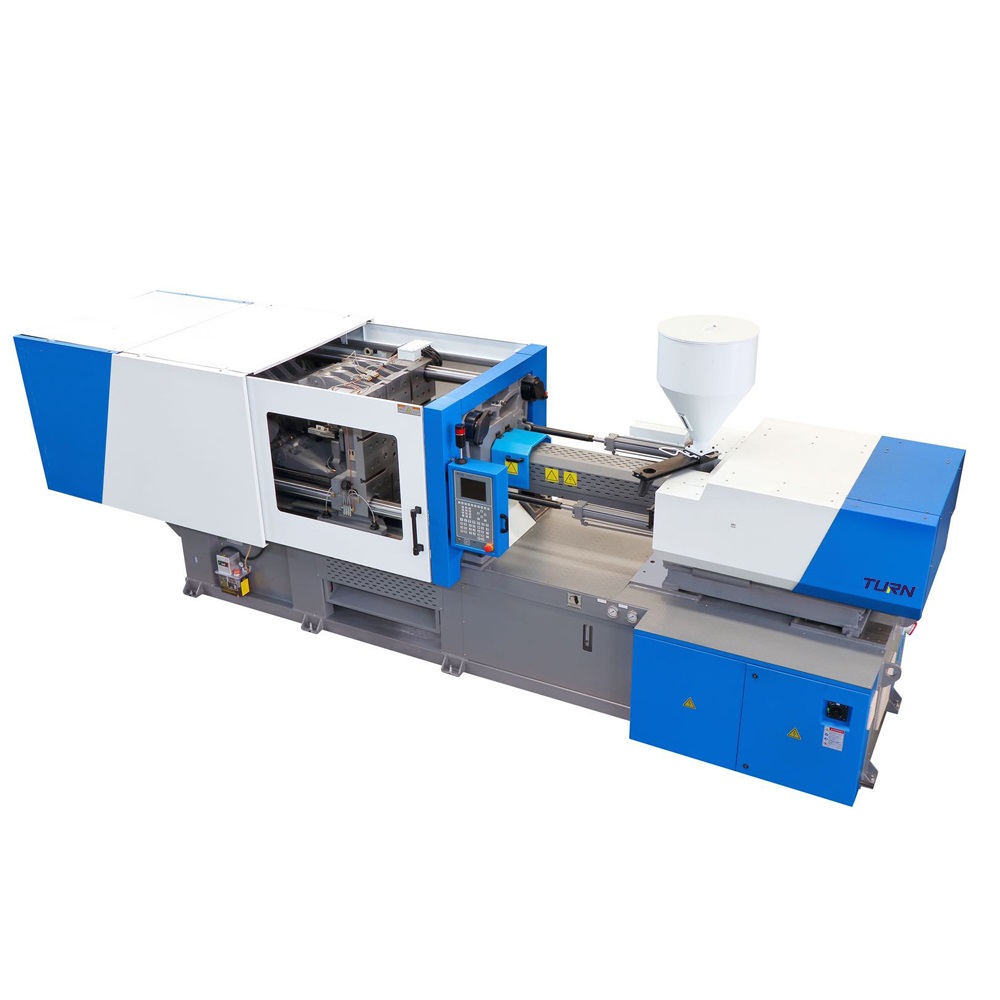

Plastic Injection Molding Machine
This plastic injection molding machine is designed for a wide range of applications, especially for auto parts and precise industrial plastic parts production. It is equipped with electrical components and a servo motor.
Technical Specifications
Overview
K-Series European Style Injection Molding Machine
This high-performance injection molding machine features an Italian-inspired design tailored for precision manufacturing. It incorporates advanced servo motor technology and premium electrical components to ensure consistent, high-quality production for automotive and industrial plastic parts. The machine is built for efficiency, reliability, and ease of maintenance.
Performance Metrics
Key Performance Indicators
1,800 kN
Max Clamping Force
442 cm³
Max Shot Volume
2,393 Bar
Max Injection Pressure
Technical Specifications
Technical Data Table

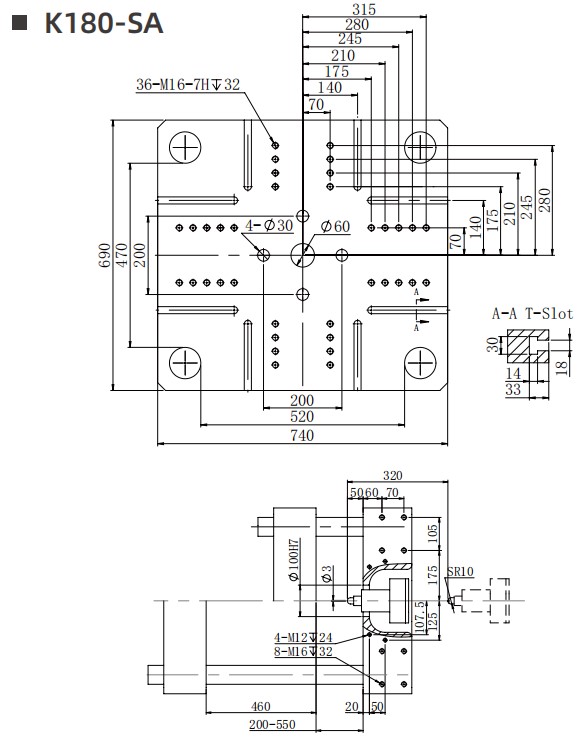

| Specification | K110-SA | K150-SA | K180-SA |
|---|---|---|---|
| Clamping Force (kN) | 1100 | 1500 | 1800 |
| Screw Diameter (mm) | 32-40 | 36-45 | 40-50 |
| Shot Volume (cm³) | 145-226 | 204-318 | 283-442 |
| Injection Pressure (Bar) | 1531-2393 | 1378-2154 | 1428-2231 |
| Opening Stroke (mm) | 350 | 400 | 460 |
| Machine Weight (t) | 3.6 | 4.4 | 6.0 |

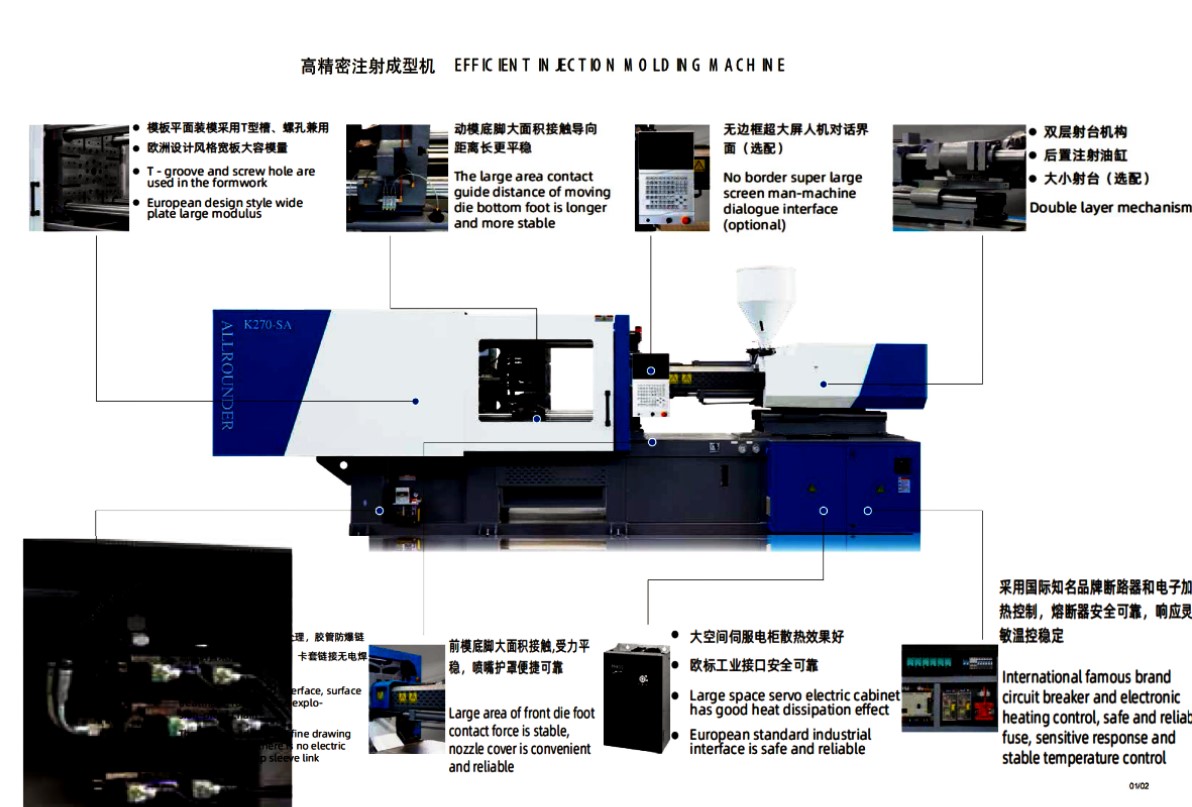

Key Features
Machine Features
- European design style with large modulus formwork
- T-groove and screw hole design for versatile mold mounting
- High-torque, low-speed oil motor
- Large space servo electric cabinet with optimized heat dissipation
- Double-layer injection mechanism
- Advanced PID temperature control
- Linear electronic ruler control for injection and clamping
- Certifications
- ISO 9001CESGS
