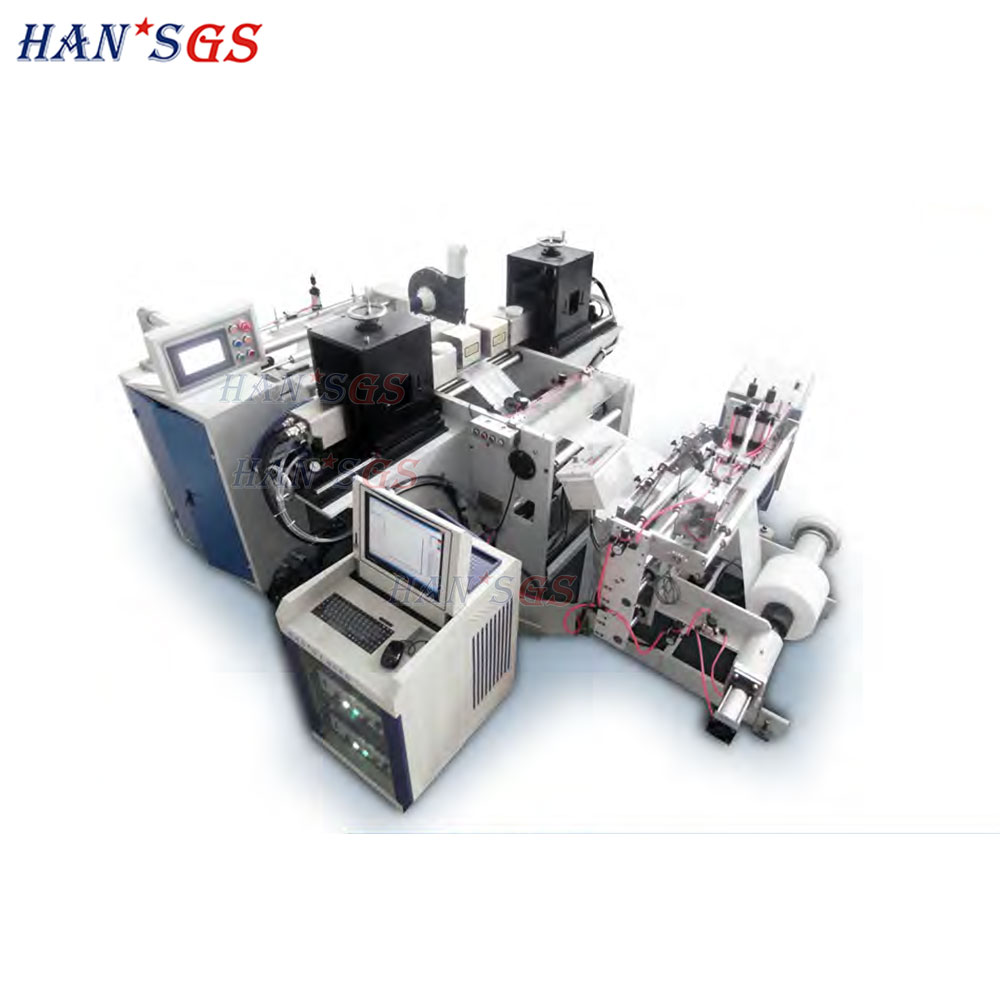

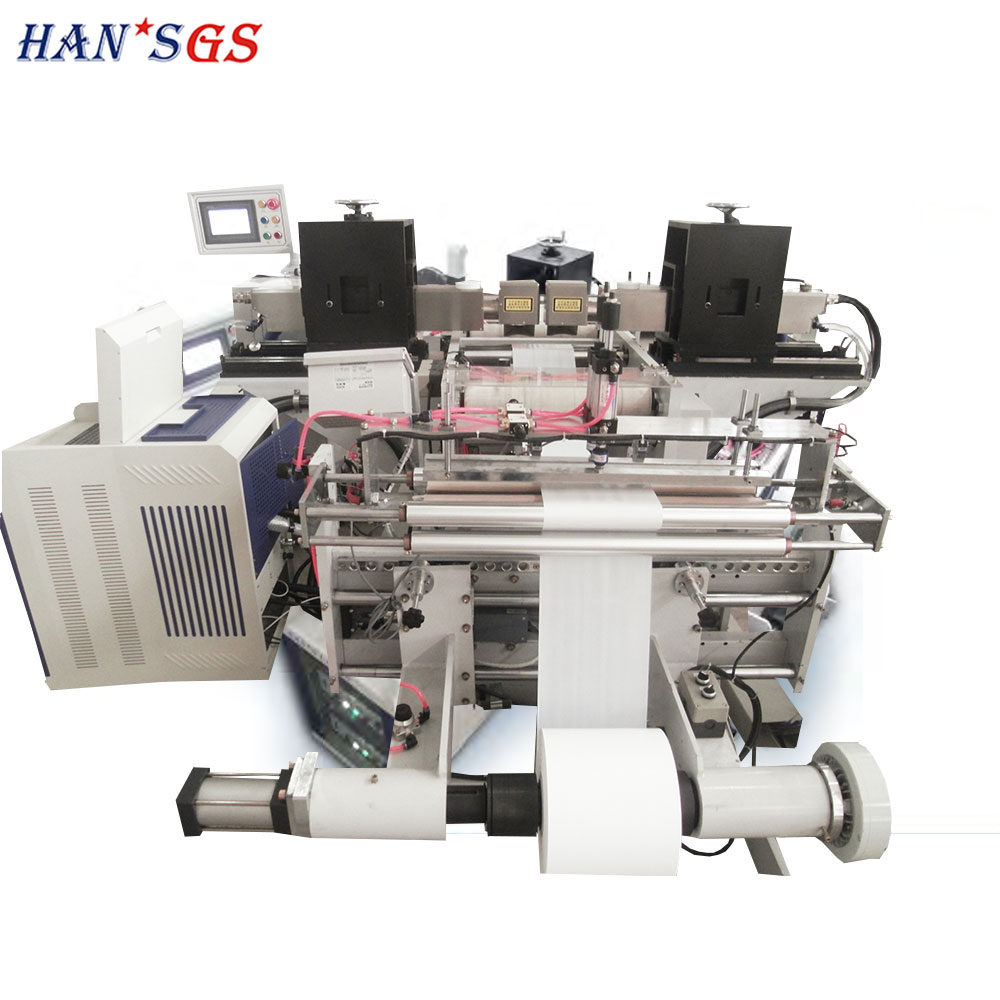

Plastic Film Laser Perforating Equipment
This equipment uses laser technology to create micro-perforations in plastic films. The process allows for controlled airflow and moisture release, which extends the shelf life of packaged goods.
Technical Specifications
Overview
High-Precision Laser Perforation
This laser perforating equipment is designed to create precise microporous structures on various packaging materials, enhancing airflow and moisture control for fresh produce. By utilizing advanced laser technology instead of mechanical punching, it ensures clean, sealed edges that maintain material strength and integrity. The system is engineered to optimize packaging processes, allowing for faster filling, improved compression, and reduced shipping costs.
Performance Metrics
Operating Speed
200 m/min
Max Speed
- Laser Power Options
- 55W100W200W
Technical Specifications
- Hole Diameter
- 0.1mm - 0.2mm
- Row Space Adjustment Range
- 20 mm
- Laser Wavelength
- 10.6 μm
Features
Key Advantages
- Wide range of compatible materials
- Clean micro-perforation with heat-sealed edges
- Enhanced shelf life for fresh produce
- Easier filling with reduced air spillage
- Improved stacking and reduced shipping costs

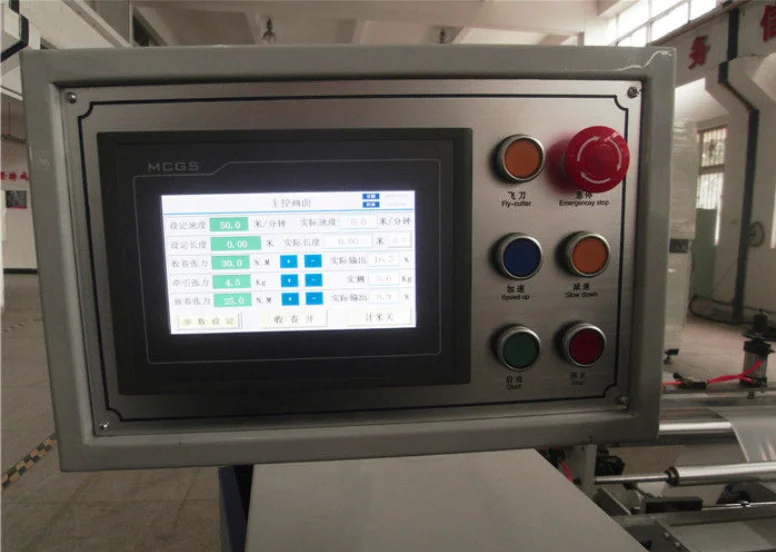

Control System
Adjustment Capabilities
- Vertical and horizontal laser source positioning
- Perforating edge distance control
- Focus distance adjustment
- Multi-row spacing control
