Photovoltaic Solar Panel
This photovoltaic module converts sunlight into electricity. It is constructed with durable materials for long-lasting performance and weather resistance.
Technical Specifications
System Overview
10kW Solar Power Solution
This 10kW solar power system is designed for high-efficiency energy harvesting, suitable for residential, commercial, or industrial applications. It includes high-performance PV modules capable of delivering 310W to 375W per panel, paired with a robust MPPT or PWM solar charge controller and a reliable inverter. The system is engineered for versatility with custom mounting options for roofs or ground installations.

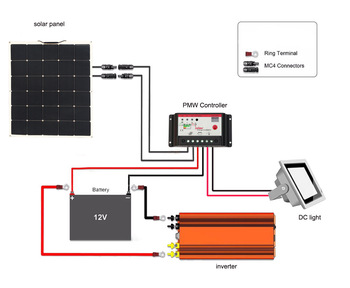

System Components
System Bill of Materials
| Component | Description | Quantity |
|---|---|---|
| PV Module | Poly 310w/375w solar panel | 8 pcs |
| Solar Charge Controller | 48V 50A (MPPT or PWM) | 1 pcs |
| Off Grid Inverter | 48V DC/220V AC 50/60HZ | 1 pcs |
| DC Connected Box | Air switch, over-voltage protection | 1 pcs |
| PV Cable | Single-core PV Cable 4mm² | 100 m |
| System Installation | Customized Aluminium Alloy | 1 set |
Technical Specifications
Total System Rating
10 kW
Rated Power
- Inverter Output
- 220V AC 50/60HZ
- Mounting Versatility
- Flat RoofPitched RoofGround Mount
