Photovoltaic Combiner Box for Solar Power Systems
This photovoltaic combiner box consolidates multiple solar panel outputs into a single connection point. It provides overcurrent and surge protection for photovoltaic systems, ensuring safe and reliable operation.
Technical Specifications
Product Overview
Professional Photovoltaic Combiner Solution
This PV combiner box is designed to aggregate multiple solar string inputs into a single output, significantly reducing wiring complexity for large-scale grid-connected systems. Engineered for high reliability, it provides essential overcurrent and surge protection while facilitating easy maintenance for solar power installations. The enclosure is built to withstand rigorous outdoor environments, offering robust protection against environmental factors.
Technical Specifications
- Input Channels
- 16
- Max DC Voltage
- 1000 V
- Fuse Rating
- 15 A
- Operating Temperature
- -10°C to +40°C
Environmental & Safety
Ingress Protection
IP65
- Environmental Features
- Anti-UVAnti-acidAnti-alkaliMoisture ResistantMildew ResistantRodent Control
Basic Structure

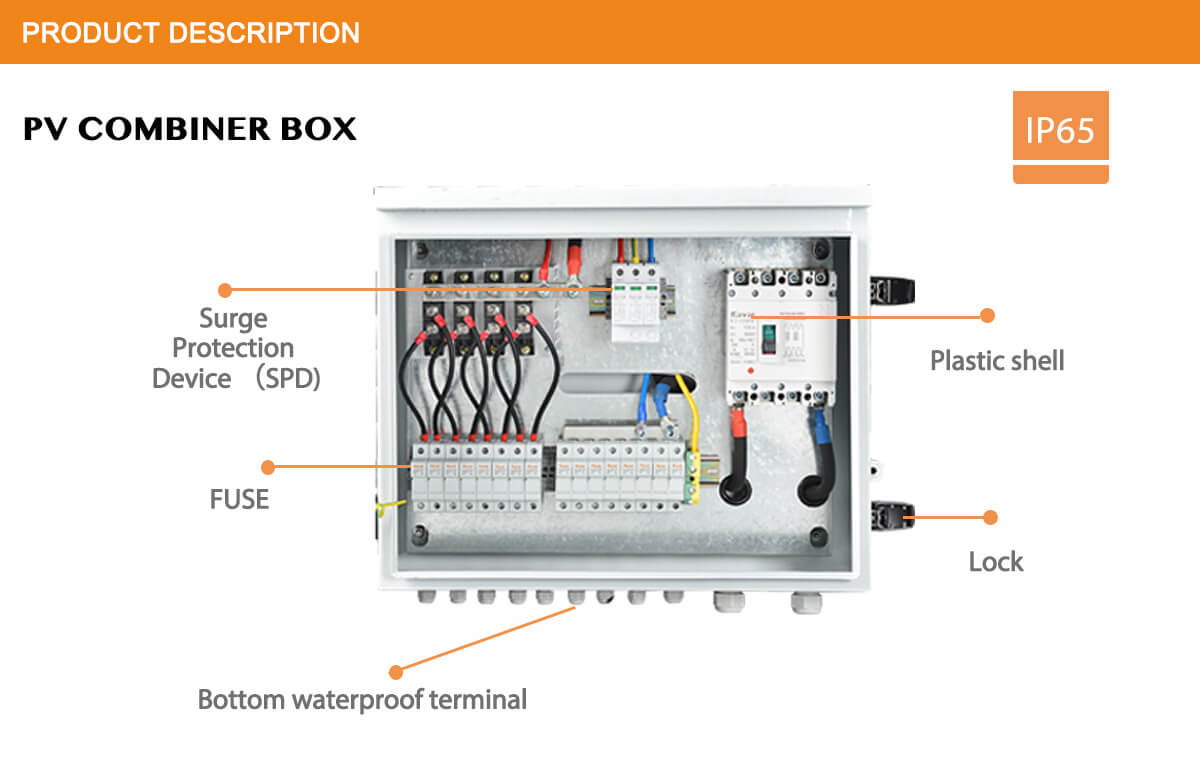

Component Layout
| Component |
|---|
| Negative convergence copper busbar |
| 16-way detection unit |
| DC MCB |
| DC positive convergence output |
| DC negative convergence output |
| RS485 communication terminal |
| Ground output point |
