Technical Specifications
Product Overview

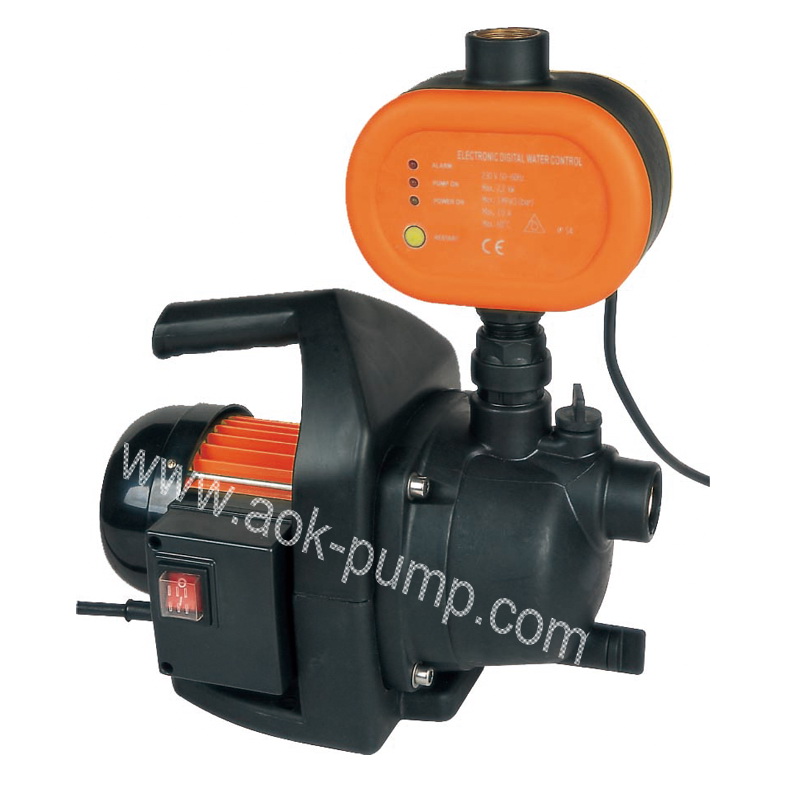

High-Efficiency Peripheral Pump
This peripheral water pump features an integrated electronic digital water control system, making it an ideal solution for domestic water pressure boosting and garden irrigation. Constructed with a durable stainless steel shell and high-quality plastic components, it is designed for reliable clean water transfer. The unit includes advanced safety features such as dry-running protection and automatic operation, ensuring consistent performance for wells, tanks, or stream applications.
Technical Specifications
Power Output
600 W
Min Power
1,200 W
Max Power
- Max Flow Rate
- 3.2 m3/h
- Max Head
- 32 m
- Electrical Requirements
- 230V 50-60Hz
- Rated Current
- 1.2 A
Compliance & Safety
IP Rating
IPX4
- Certifications
- GSCEEMC
Features
Control System
- Electronic digital water control
- Alarm indicator
- Pump on indicator
- Power on indicator
- Manual reset button
- Dry-running protection
Materials
- Stainless steel shell
- Plastic pump body
