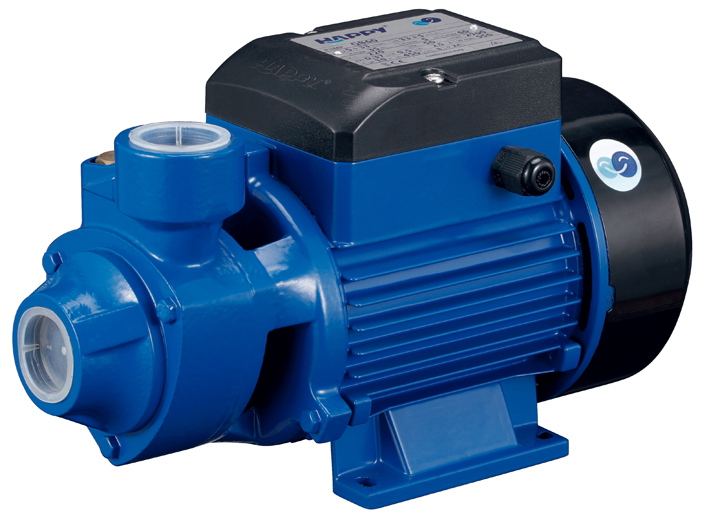

Peripheral Water Pump for Clean Water Transfer
This peripheral water pump is designed for clean water transfer and boosting pressure in domestic applications. Its compact design and efficient motor ensure reliable performance for pumping clean water in home and garden environments.
Technical Specifications
Product Overview
Clean Water Transfer Solution
This peripheral water pump is specifically designed for the efficient transfer of clean water, making it an excellent choice for domestic irrigation and pressure boosting. It is engineered to handle liquids free of abrasive particles and chemically aggressive components. With its compact footprint and reliable construction, it integrates seamlessly into home and garden water systems.
Performance Metrics
Performance Highlights
35 L/min
Max Flow Rate
35 m
Max Head
8 m
Max Suction
2,850 RPM
Speed
Technical Specifications
Electrical Data
| Parameter | Value |
|---|---|
| Voltage | 220 V |
| Frequency | 50 Hz |
| Power (HP) | 0.5 HP |
| Power (KW) | 0.37 KW |
| Current | 2.5 A |
Standards & Protection
IP44 ProtectionClass F Insulation
- Key Components
- Copper winding motorBrass impeller
Installation Requirements
Operating Conditions
- Enclosed environment recommended
- Must be sheltered from inclement weather
- Suitable for small pressure sets
- Designed for clean water without abrasives
