Technical Specifications
Overview

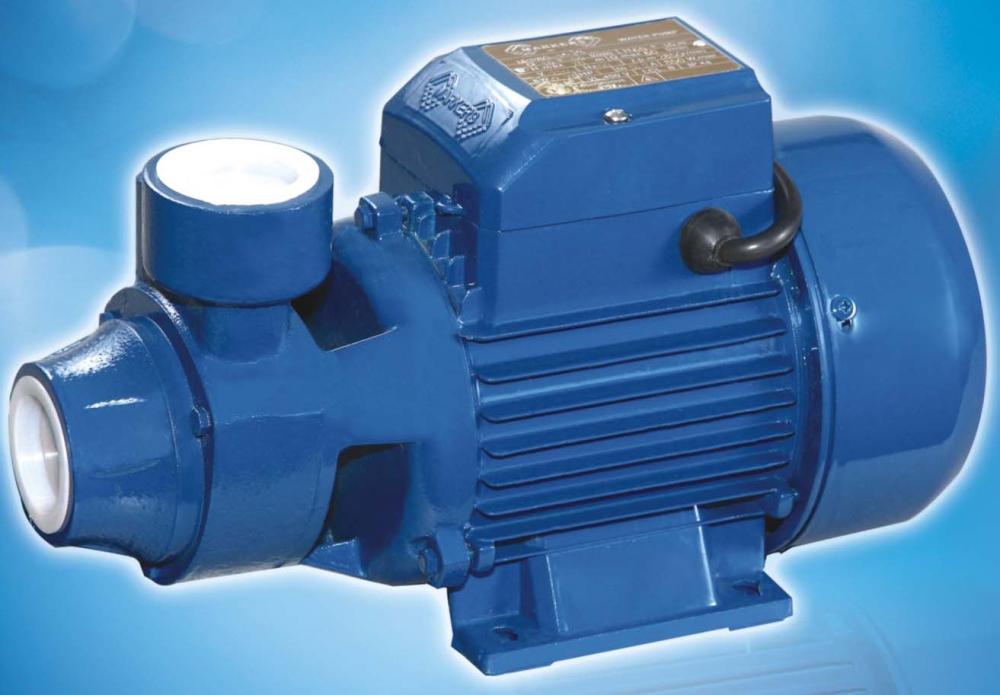

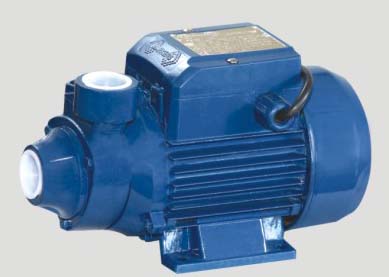

MKP Series Peripheral Water Pump
The MKP series peripheral pump is a high-performance solution engineered for clean water transfer and pressure boosting. Designed with a unique impeller structure, it excels in high-head, low-flow applications, making it ideal for domestic water supply, small-scale irrigation, and general fluid handling. Its compact, robust construction ensures reliable operation and durability in demanding environments.
Technical Specifications
Operating Conditions
60 °C
Max Liquid Temp
40 °C
Max Ambient Temp
8 m
Max Suction
Motor Specifications
| Feature | Specification |
|---|---|
| Motor Type | Single Phase |
| Insulation Class | B |
| Protection Rating | IP44 |
| Duty Cycle | Continuous |
Construction Materials
Material Composition
- Pump Body: Cast Iron
- Motor Housing: Aluminum
- Impeller: Brass/Aluminum/Plastic
- Shaft/Rotor: 45# Steel
- Mechanical Seal: Carbon/Ceramic
- Bearing Type
- C&U or local bearing
