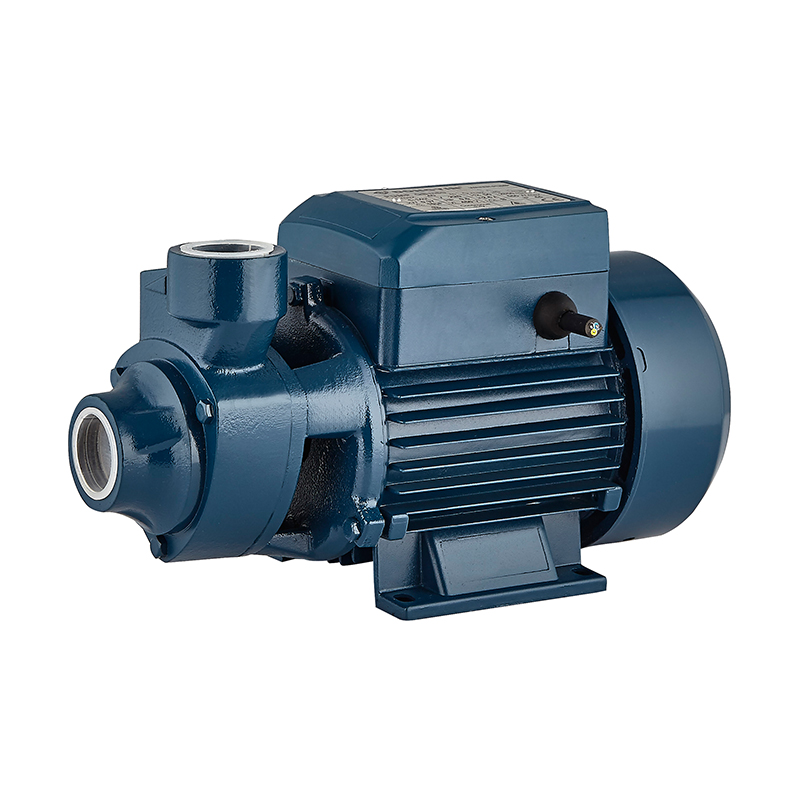

Peripheral Water Pump
This peripheral water pump is designed for pumping clean water without abrasive particles. It is suitable for domestic applications, such as water supply from wells, irrigation, and pressure boosting.
Technical Specifications
Product Overview
High-Efficiency Peripheral Water Pump
The QB series peripheral pump is a compact and reliable solution designed for pumping clean water free of abrasive particles. It excels in domestic applications, including water supply from wells, irrigation, and pressure boosting for small to medium-sized surge tanks. Known for high-pressure output at lower flow rates, this pump offers an economical and easy-to-maintain design for residential and light commercial needs.
Technical Specifications
Performance Metrics
36 L/min
Max Flow Rate
35 m
Max Head
8 m
Suction Height
0.5 HP
Power Output
Electrical Data
| Parameter | Value |
|---|---|
| Voltage | 220V |
| Frequency | 50Hz |
| Rated Current | 2.8A |
| Power Rating | 0.37kW |
| Speed | 2850r/min |
Operational Details
Installation Notes
- Install a foot valve on the suction opening
- Install a check valve on the suction opening
- Only for use with clean water
- Suitable for non-chemically aggressive liquids
- Compliance & Protection
- IP44 ProtectionSelf-priming
