Perforated Top Modular Plastic Conveyor Belt

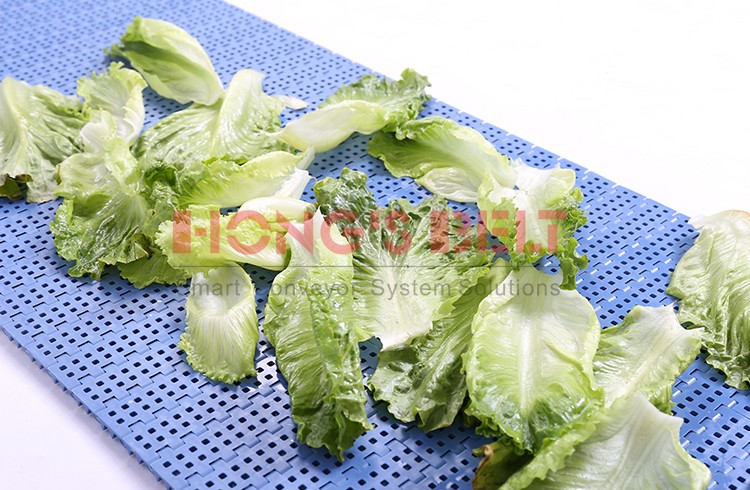

This modular plastic conveyor belt features a perforated top for drainage and airflow. It is suitable for food processing applications such as washing lines.
Technical Specifications
Product Overview
High-Performance Modular Conveyor Belt
Designed for demanding industrial environments, this perforated top modular plastic conveyor belt offers exceptional durability and hygiene. Its specialized design facilitates efficient drainage and airflow, making it an ideal choice for washing, cooling, and defrosting processes in the food industry. With a robust load capacity of up to 1.2 tons per square meter and a maintenance-free design, this belt ensures consistent performance and reduced operational downtime.
Technical Specifications
Maximum Load Capacity
1.2 tons/sqm
Max Load
- Pitch
- 25.4 mm
- Thickness
- 10 mm
- Minimum Width
- 45 mm
- Open Area
- 15 %
- Rod Diameter
- 4.9 mm
- Working Temperature
- -40°C to 260°C
Design & Compatibility

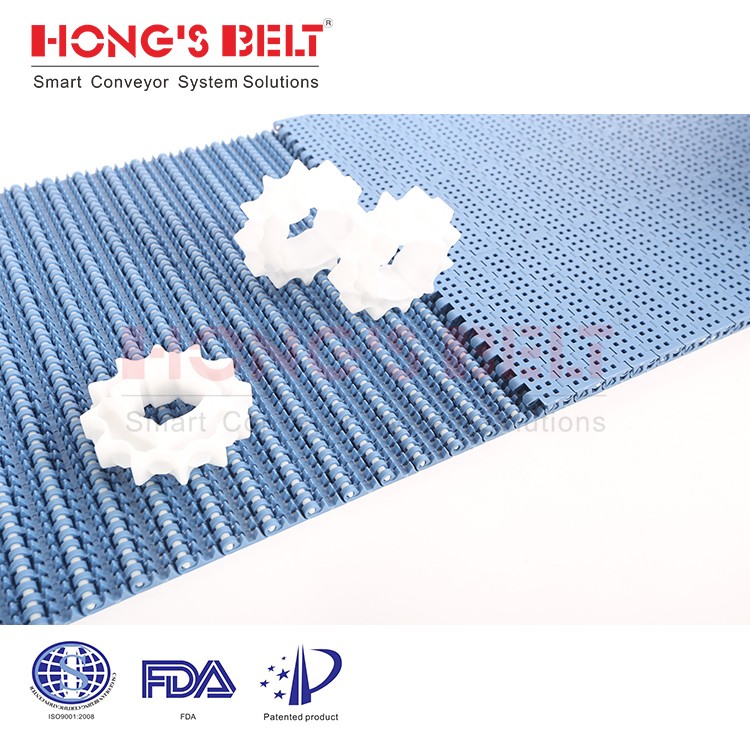

Sprocket Sizes
- 7T
- 8T
- 10T
- 12T
- 16T
- 20T
Key Features
Flight AvailableSide Guard AvailableFood Approved MaterialsMaintenance FreeEasy to Clean
- Available Materials
- PPPOMPEPA
- Available Colors
- WhiteBlueGrayNatureDark-brown
Compliance & Application
Industry Applications
| Sector | Industries |
|---|---|
| Food Industry | Meat, Poultry, Sea Food, Bakery, Snack Food, Fruit & Vegetables |
| Non-food Industry | Automotive, Tire, Packaging, Printing, Postal, Cardboard, Can, PET, Textile |
- Certifications
- FDAEU
