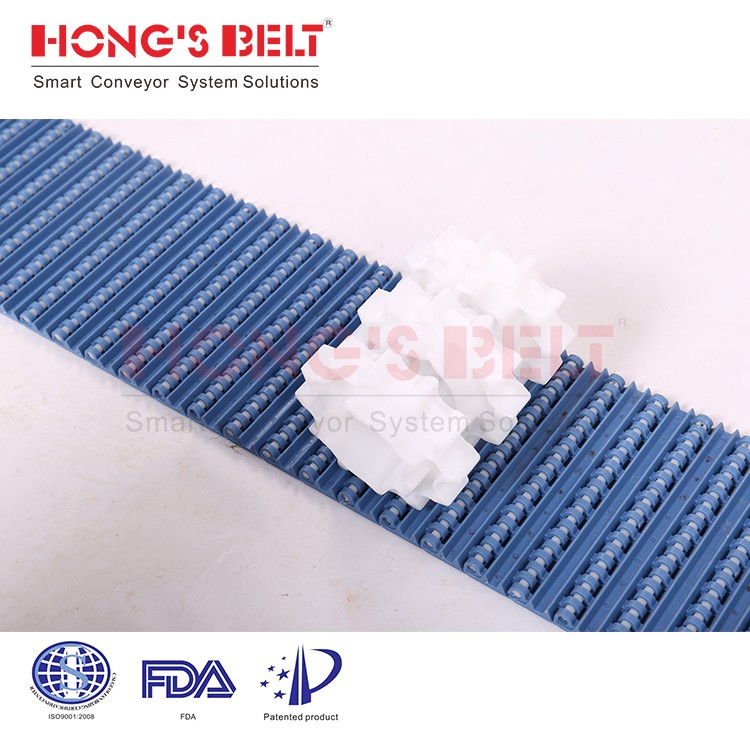

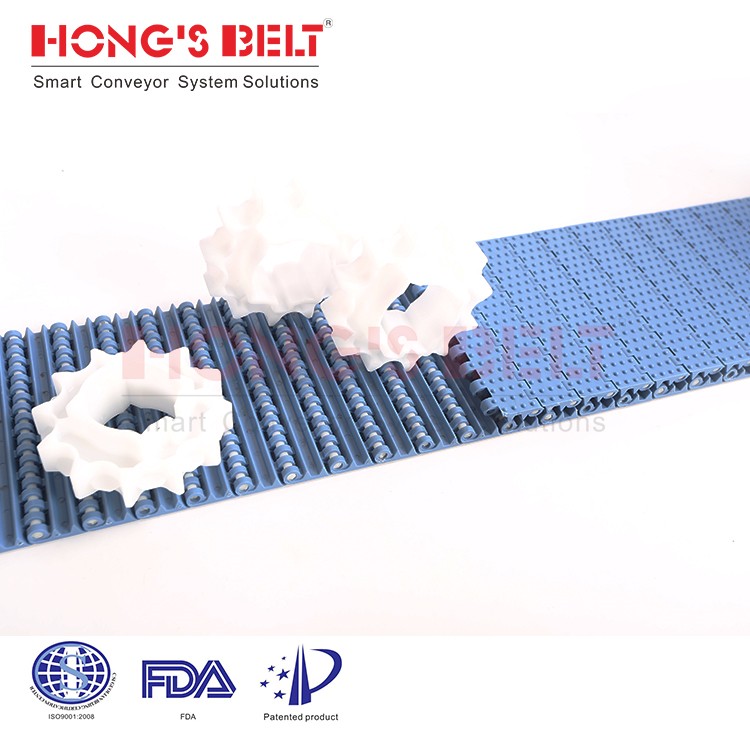

Modular Plastic Conveyor Belt with Nub Top
This modular plastic conveyor belt features a nub top surface for enhanced grip. It is designed for vegetable processing applications, ensuring efficient and reliable material handling.
Technical Specifications
Product Overview
Modular Nub Top Conveyor Belt
This modular plastic conveyor belt features a specialized nub top surface engineered for superior grip, making it ideal for vegetable processing and general food handling. The modular design allows for rapid assembly, customization, and simplified maintenance, significantly reducing operational downtime. Built to withstand demanding environments, it offers excellent resistance to chemicals, moisture, and abrasion while meeting stringent food safety standards.
- Model
- HS-200AN
Technical Specifications
- Pitch
- 25.4 mm
- Thickness
- 11.5 mm
- Minimum Width
- 45 mm
- Rod Diameter
- 4.9 mm
- Open Area
- 0 %
- Materials
- PPPOMPEPA
Performance Metrics
Maximum Load Capacity
1.2 tons/m²
Load Capacity
- Working Temperature
- -40°C to 260°C
Features & Compatibility
Approvals
FDAEU Approved
Sprocket Sizes
- 7T
- 8T
- 10T
- 12T
- 16T
- 20T
- Flight
- Yes
- Side Guard
- No
- Curve Capability
- No
