Technical Specifications
Product Overview
Precision Strength Testing

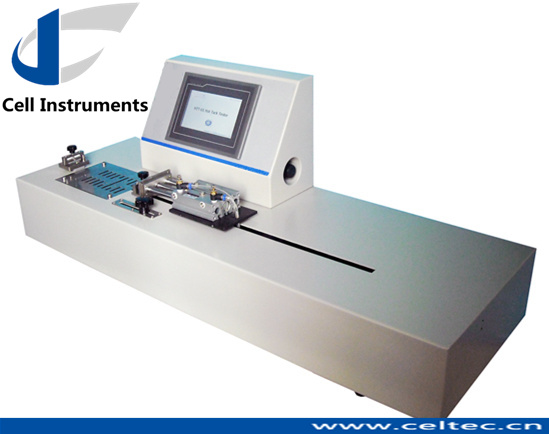

This Peeling and Bond Strength Tester is a comprehensive solution designed to measure the strength of heat seals formed between thermoplastic surfaces. It integrates hot tack, heat seal, peeling, and tensile testing capabilities into a single, efficient instrument. Equipped with advanced PLC control and a 7-inch touchscreen interface, it provides precise, repeatable data for quality control and research applications.
Technical Specifications
- Sealing Temperature Range
- 250 °C
- Temperature Accuracy
- 0.2 °C
- Sealing Pressure Range
- 0.15 - 0.7 MPa
- Dwell Time Range
- 0.1 - 9999 s
- Load Cell Capacity
- 200N (Optional: 30N, 50N, 100N, 500N)
- Measurement Accuracy
- 0.5 F.S.
- Stroke Length
- 500 mm
- Sealing Jaws
- 50mm x 10mm Teflon Coated, Double Heating
Features
Key Features
- Integrated hot tack, heat seal, peeling, and tensile test modes
- 7-inch TFT touchscreen interface
- PLC-controlled operation
- Aluminum encapsulated sealing jaws for uniform heating
- Adjustable testing speed
- Auto zeroing with overload and over-travel protection
- Manual and foot switch start options
- RS 232 port for data connectivity
Compliance
- Compliance Standards
- ASTM F1921ASTM F2029QB/T2358YBB 00122003
