Pedal Brake Valve
This pedal brake valve features a compact design for easy installation. It provides responsive braking with low hysteresis, and the braking pressure is directly proportional to the actuation force.
Technical Specifications
Product Overview
Pedal Brake Valve GLT06
The GLT06 pedal brake valve is designed for reliable and precise control of hydraulic braking systems in heavy-duty mobile machinery. It features a compact design with ergonomic foot pedal operation, allowing for quick response times and low hysteresis. Brake pressure is directly proportional to the applied force, providing operators with intuitive control while ensuring safety and efficiency in demanding construction environments.

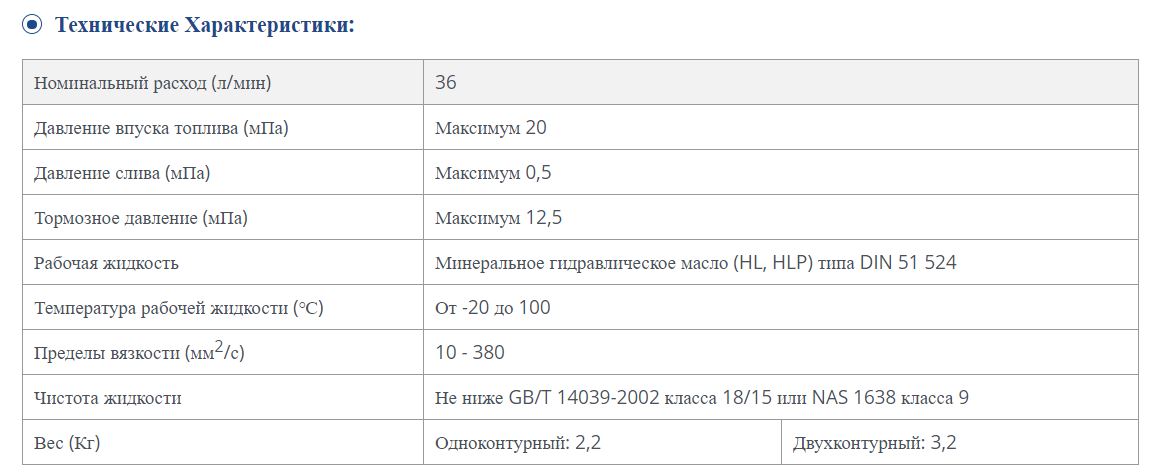

Technical Specifications
Weight by Configuration
| Version | Weight |
|---|---|
| Single-circuit | 2.2 kg |
| Double-circuit | 3.2 kg |
- Nominal Flow Rate
- 36 l/min
- Max Inlet Pressure
- 20 MPa
- Max Brake Pressure
- 12.5 MPa
Operating Requirements
- Working Fluid
- Mineral hydraulic oil (HL, HLP) type DIN 51 524
- Temperature Range
- -20 to 100 °C
- Viscosity Limits
- 10-380 mm²/s
Application
Compatible Equipment
- Concrete mixers
- Sorters
- Rotary excavators
- Forklifts
- Loaders
- Lifting equipment
