PE PP Hard Plastic Washing Machine
This PE PP hard plastic washing machine is engineered for the efficient recycling of plastic waste. The robust system effectively removes contaminants from plastic flakes, ensuring high-quality recycled material.
Technical Specifications
Overview

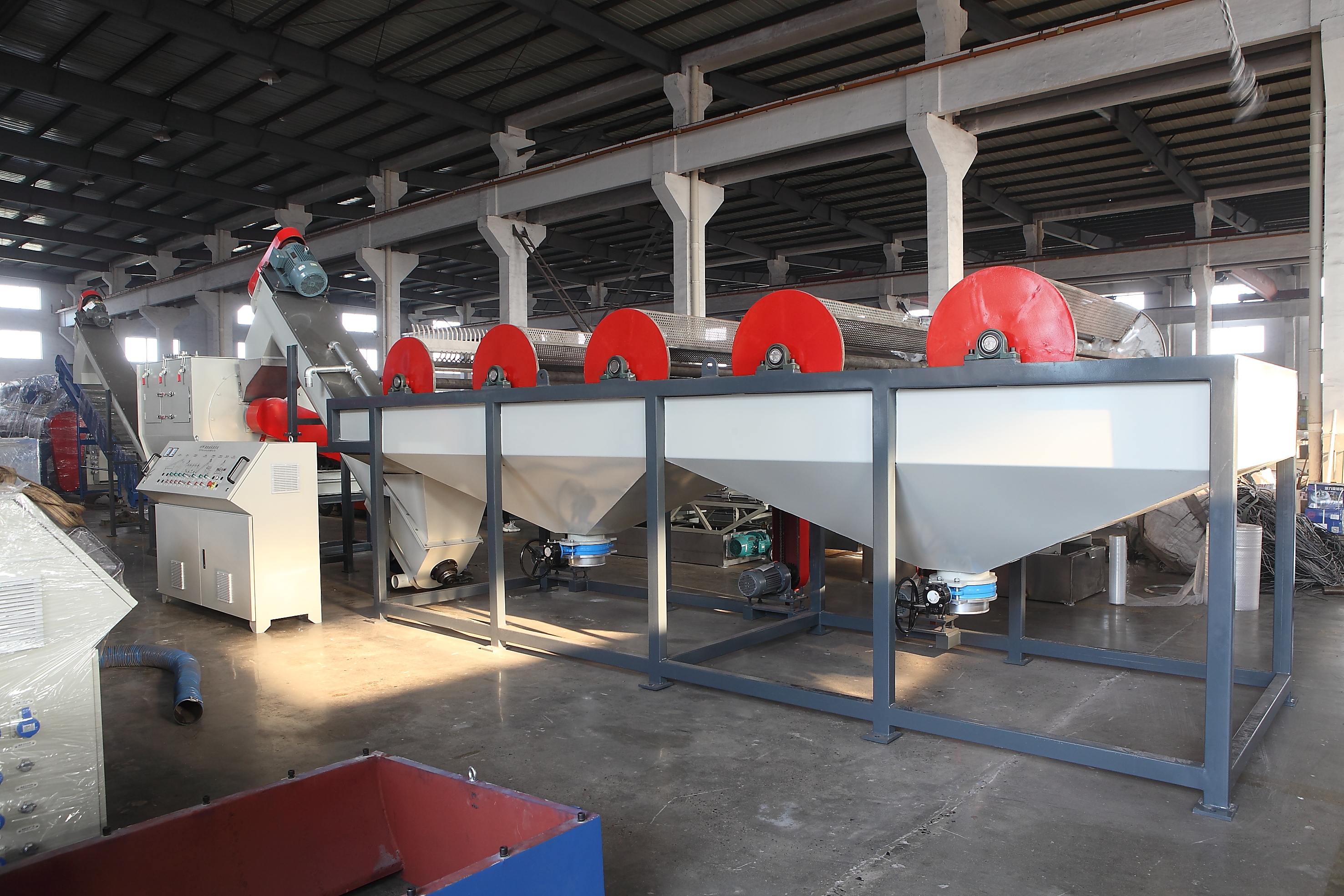

Industrial Plastic Recycling Line
This comprehensive recycling line is engineered for the efficient processing of waste plastic materials, including PE and PP films, bags, and rigid plastics like bottles, barrels, and pipes. The system provides a complete end-to-end solution, handling everything from initial crushing and washing to drying and storage. With a focus on reliability and safety, this equipment is designed to produce high-quality recycled plastic flakes suitable for various industrial applications.
Certifications
CE
Technical Specifications
Performance Capacity
300 kg/h
Capacity (MT-300)
500 kg/h
Capacity (MT-500)
1,000 kg/h
Capacity (MT-1000)
Model Specifications
| Model | Power (kw) | Water (ton/h) | Manpower |
|---|---|---|---|
| MT-300 | 125 | 3 | 3 |
| MT-500 | 260 | 4-5 | 3 |
| MT-1000 | 395 | 6 | 4 |
- Final Humidity Content
- ≤ 5%

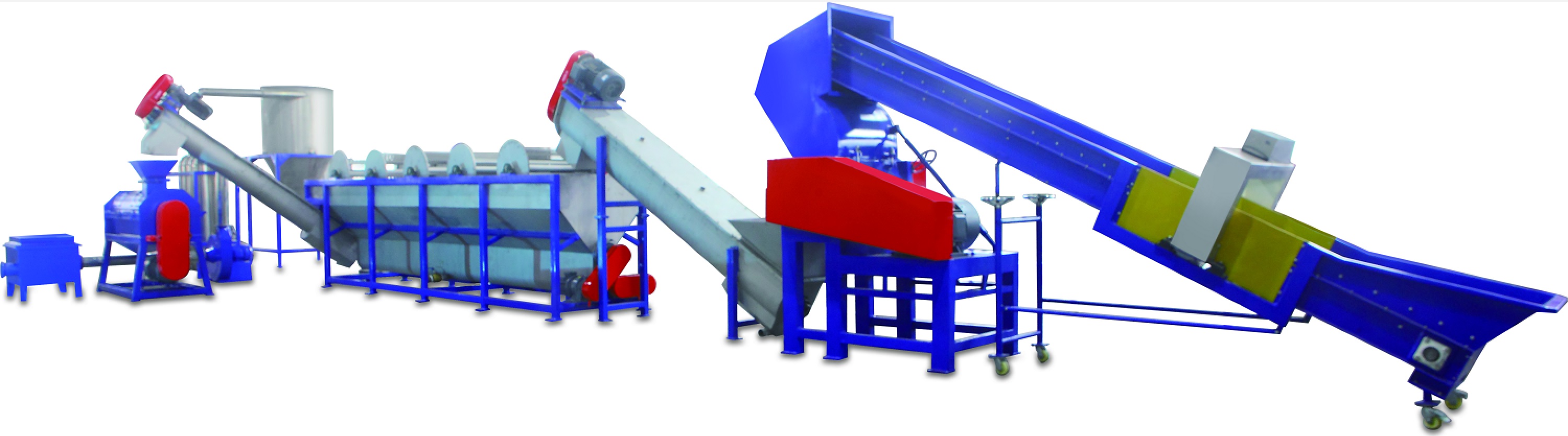

Process Workflow
Production Line Sequence
- Belt conveyor
- Crusher
- Screw conveyor
- Floating washer
- High speed friction machine
- Dewatering machine
- Drying pipe system
- Transition storage
- Storage hopper
- Control cabinet
Capabilities
- Suitable Materials
- PE FilmPP FilmLDPE Agriculture FilmLLDPE Shrink FilmPP Woven BagsRigid PlasticsBottlesBarrelsPipes
