Professional PE/HDPE Butt Fusion Welding Machine

This manual welding and molding machine is designed for the precise butt fusion of PE and HDPE pipes and fittings. It features a robust, durable frame and a manual operation system that allows for consistent pressure and alignment during the welding process. Ideal for both on-site field work and workshop fabrication, this equipment ensures strong, leak-proof connections for critical infrastructure projects.

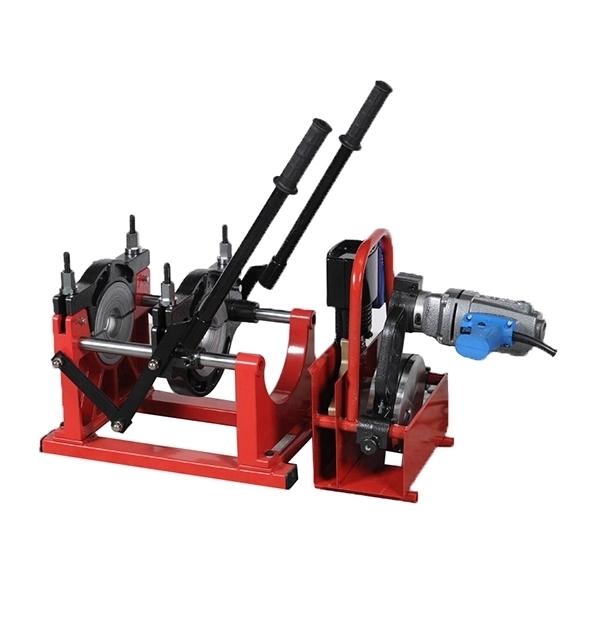

Manual welding machine in operation — Manual operation allows for precise control during the fusion of various pipe sizes.

Technical Specifications

Core Components

Robust machine frame
Adjustable clamping mechanisms
Heating plate with temperature control
Milling cutter (facing tool)
Manual operation levers

Supported Materials: PEHDPE

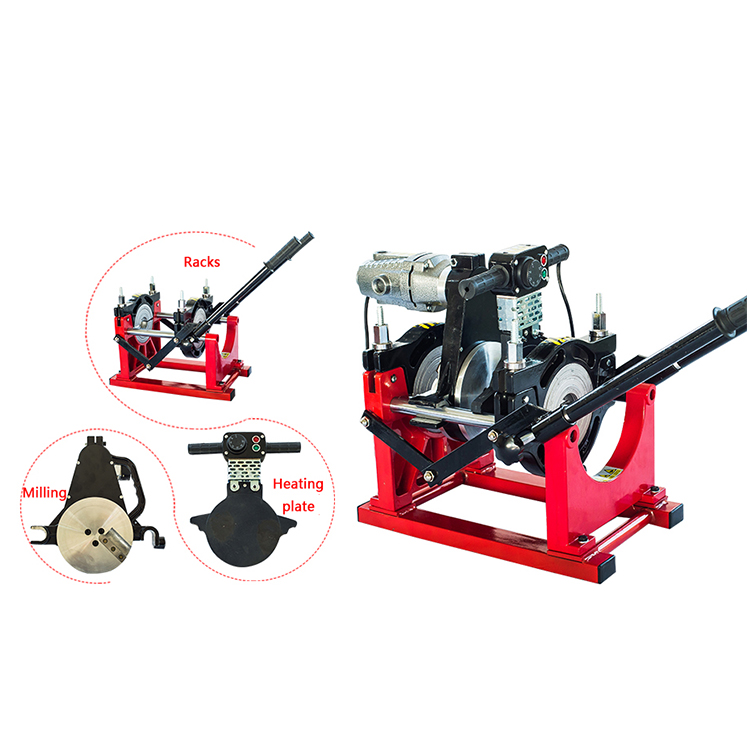

Overview of the welding machine components including racks and heating plate — The complete welding setup featuring racks, milling tool, and heating plate.

Close up of the manual welding machine frame and clamping system — Robust frame construction with manual lever system for consistent pressure application.

Applications

Industry Applications

PlumbingGas PipelinesIndustrial Piping

Operation Process

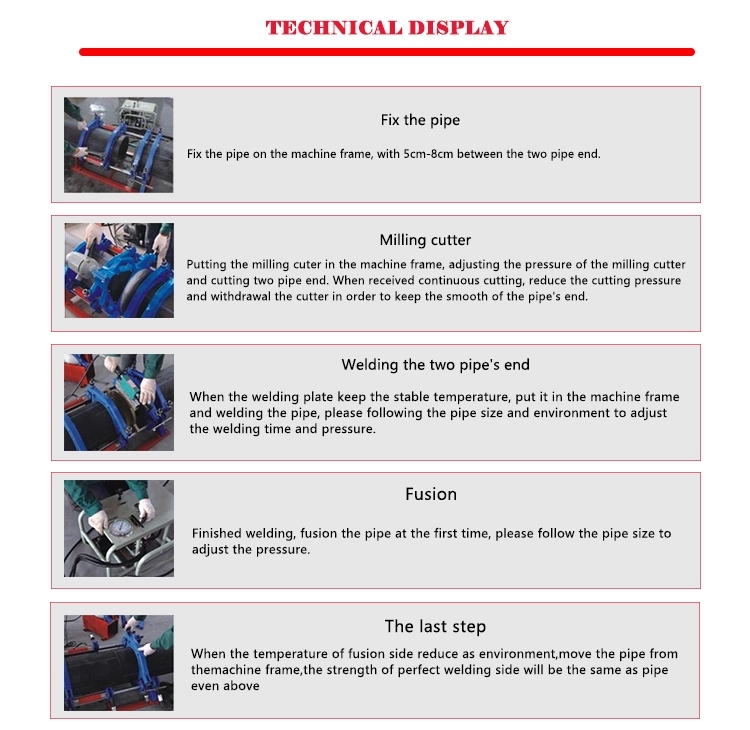

Standard Welding Procedure

Step	Description
1. Fix	Secure pipe on frame with 5-8cm gap.
2. Mill	Use milling cutter to ensure smooth pipe ends.
3. Heat	Apply heating plate at stable temperature.
4. Fuse	Apply pressure to fuse ends based on pipe size.
5. Cool	Allow to cool before removing from frame.
