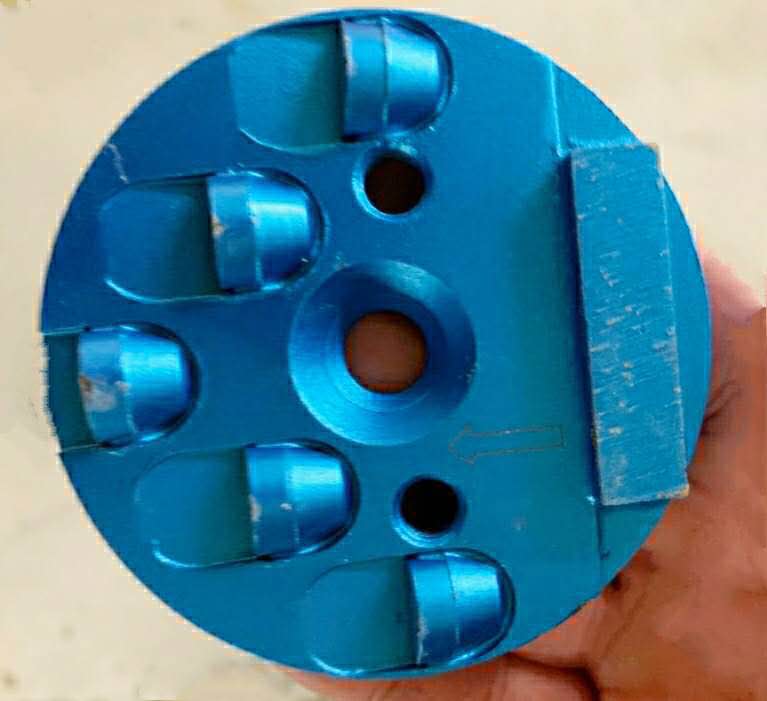

PCD Polishing Block for Surface Preparation
This polycrystalline diamond (PCD) polishing block is designed for surface preparation and polishing. Multiple PCD segments are positioned for efficient material removal and surface refinement.
Technical Specifications
Product Overview
High-Performance PCD Grinding Solution
This polycrystalline diamond (PCD) grinding block is engineered for aggressive surface preparation, making it an ideal choice for removing stubborn coatings such as epoxy, paint, varnish, and thick rubber adhesives. Designed for durability and efficiency, the block features high-quality segments that smooth and level high spots on concrete floors with ease. Its versatile mounting options ensure compatibility with a wide range of grinding and polishing machinery.
Technical Specifications
Segment Configuration
40 mm
Segment Length
10 mm
Segment Width
14 mm
Segment Height
- Materials
- 45# SteelAlloyDiamondPCD
- Segment Count
- 2-8 segments
Compatibility & Usage
Connection Options
- φ16mm
- φ20mm
- φ22.23mm
- M14
- M16
- 5/8"-11
Applications
Epoxy RemovalPaint RemovalVarnish RemovalGlue RemovalVCT Mastic RemovalRubber RemovalConcrete Leveling
Logistics
- Monthly Supply Capacity
- 30000 Pieces
- Typical Lead Time
- 3-7 days after payment
