Technical Specifications
Overview
High-Performance Hydraulic Brake System
This hydraulic parking brake pump is engineered to provide high operational safety with low operating force, making it an ideal choice for heavy-duty applications. Designed for construction equipment, material handling vehicles, and forestry machinery, it ensures reliable engagement and disengagement of the parking brake system. The unit features a robust, compact design for easy integration and consistent performance under demanding environmental conditions.
Technical Specifications
Maximum Pressure
31.5 MPa
Max Pressure
- Displacement
- 20 ml/time
- Weight
- 4 Kg
Operating Conditions
- Viscosity Range
- 10-380 mm²/s
- Operating Temperature
- -20°C to 100°C
- Oil Cleanliness Standards
- GB/T 14039-2002 19/16NAS 1638 10

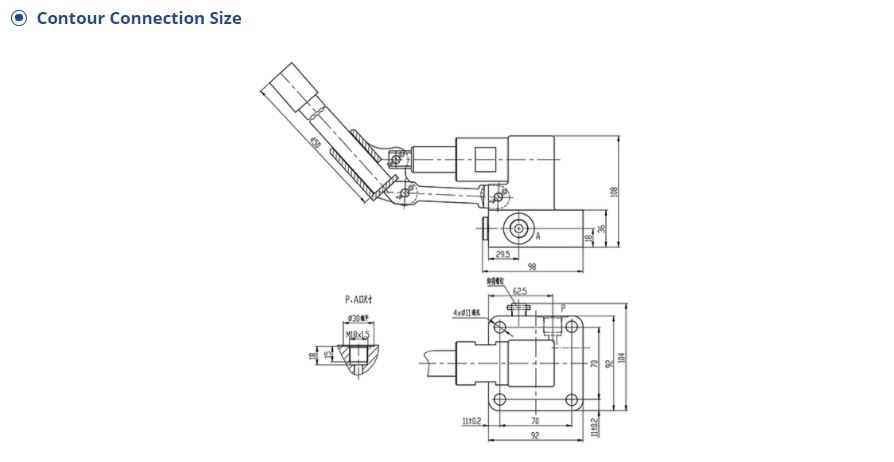

Dimensions
Key Dimensions
| Dimension | Value |
|---|---|
| Overall Length | 450 mm |
| Height | 108 mm |
Applications
Suitable Machinery
- Construction equipment
- Material handling vehicles
- Forestry machines
- Agricultural machines
- Earth-moving scrapers
